VLEX-HT2070R-TR
18Gbps HDBaseT Extender 70m with ARC
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLEX-HT2070R-TR and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLEX-HT2070R-TR

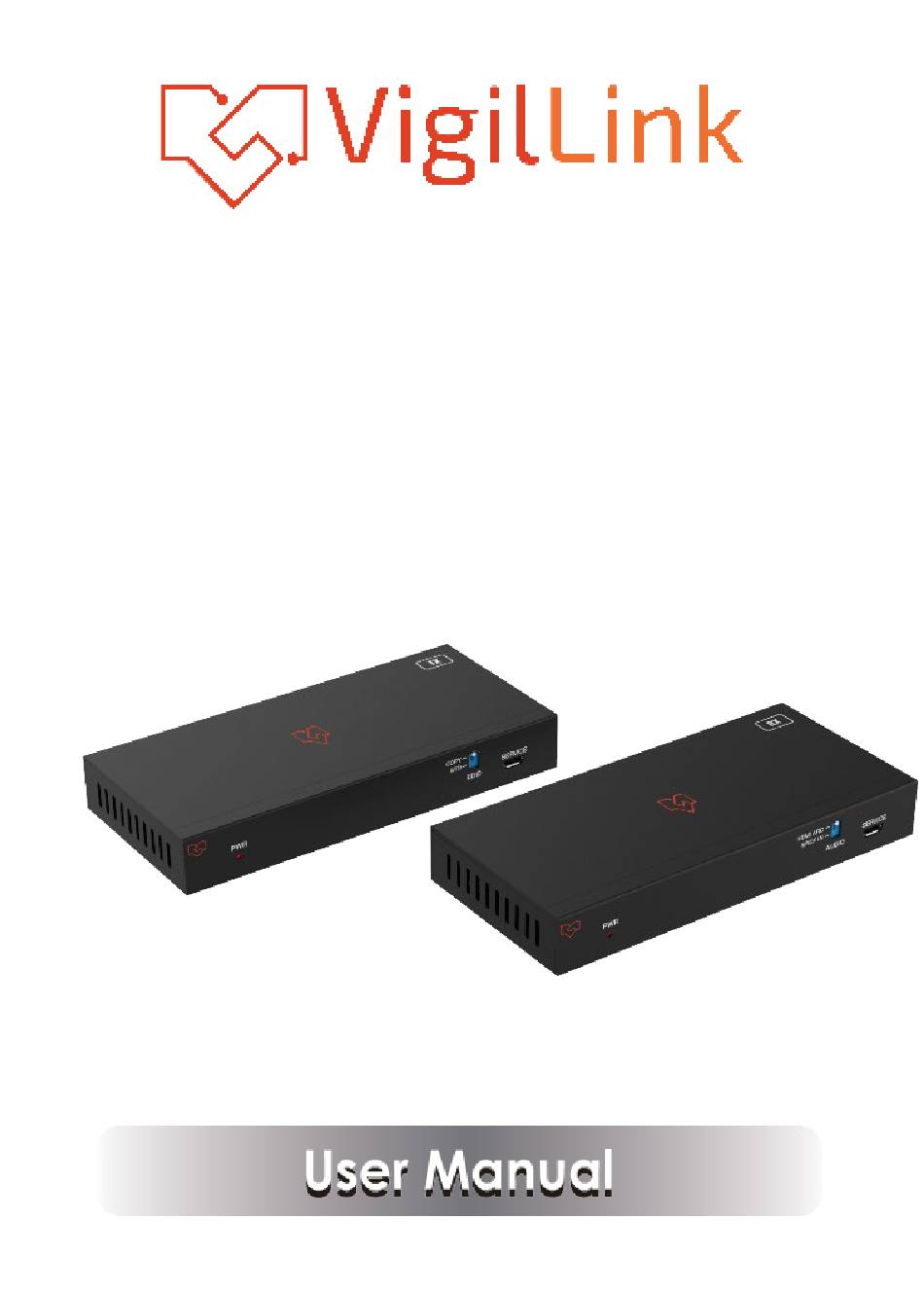

  • Page 1 VLEX-HT2070R-TR 18Gbps HDBaseT Extender 70m with ARC VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A Surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction This 18Gbps HDBaseT Extender can extend the HDMI signal, bi-directional IR control signal, ARC signal, and RS-232 control signal to a distance up to / 230ft via a single CAT5e/6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source devices or display devices from the remote end through a bi-directional IR signal pass-through function.
  • Page 4: Package Contents

    3. Package Contents ① 1 x 18Gbps HDBaseT Extender (Transmitter) ② 1 x 18Gbps HDBaseT Extender (Receiver) ③ 1 x IR Blaster cable (1.5 meters) ④ 1 x IR Wideband Receiver cable (1.5 meters) ⑤ 2 x 3pin-3.81mm Phoenix Connectors (male) ⑥...
  • Page 5 Connection Input: 1×HDMI IN [TypeA, 19-pin female] Output: 1×HDBT OUT [RJ45] 1×SPDIF OUT Transmitter Control: 1×RS-232 [3pin-3.81mm Phoenix connector] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] Input: 1×HDBT IN [RJ45] 1×SPDIF IN Output: 1×HDMI OUT [TypeA, 19-pin female] Control: 1×RS-232 [3pin-3.81mm Phoenix connector] Receiver 1×SERVICE [Micro-USB jack]...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE EDID DC 24V SPDIF OUT IR IN IR OUT Name Function Description Power LED The red LED is on when the Transmitter is powered on. Used for audio EDID setting (dial to COPY by default). EDID DIP COPY: Copy the EDID of the HDMI OUT port of the Receiver.
  • Page 7: Receiver Panel

    Name Function Description Optical fiber audio signal output port. 9 SPDIF OUT Connecting to the IR receiver cable, the IR receive signal 10 IR IN will emit to the IR OUT port of the Receiver. Connect to IR blaster cable; the IR emit signal is from the IR 11 IR OUT IN port of the Receiver.
  • Page 8 output through the SPDIF OUT port of the Transmitter. 6 / 8...
  • Page 9 Name Function Description Firmware update port. SERVICE DC 24V/1A power input port. Note that the extender supports the PoC function, which means that DC 24V either Transmitter or Receiver is connected to a 24V/1A power supply; the other doesn’t need a power supply. RJ45 connector for connecting the HDBT OUT port of HDBT IN Transmitter with CAT6/6a cable.
  • Page 10: Ir Pin Definition

    5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters;...
  • Page 11: Application Example

    6. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 9 / 8...
