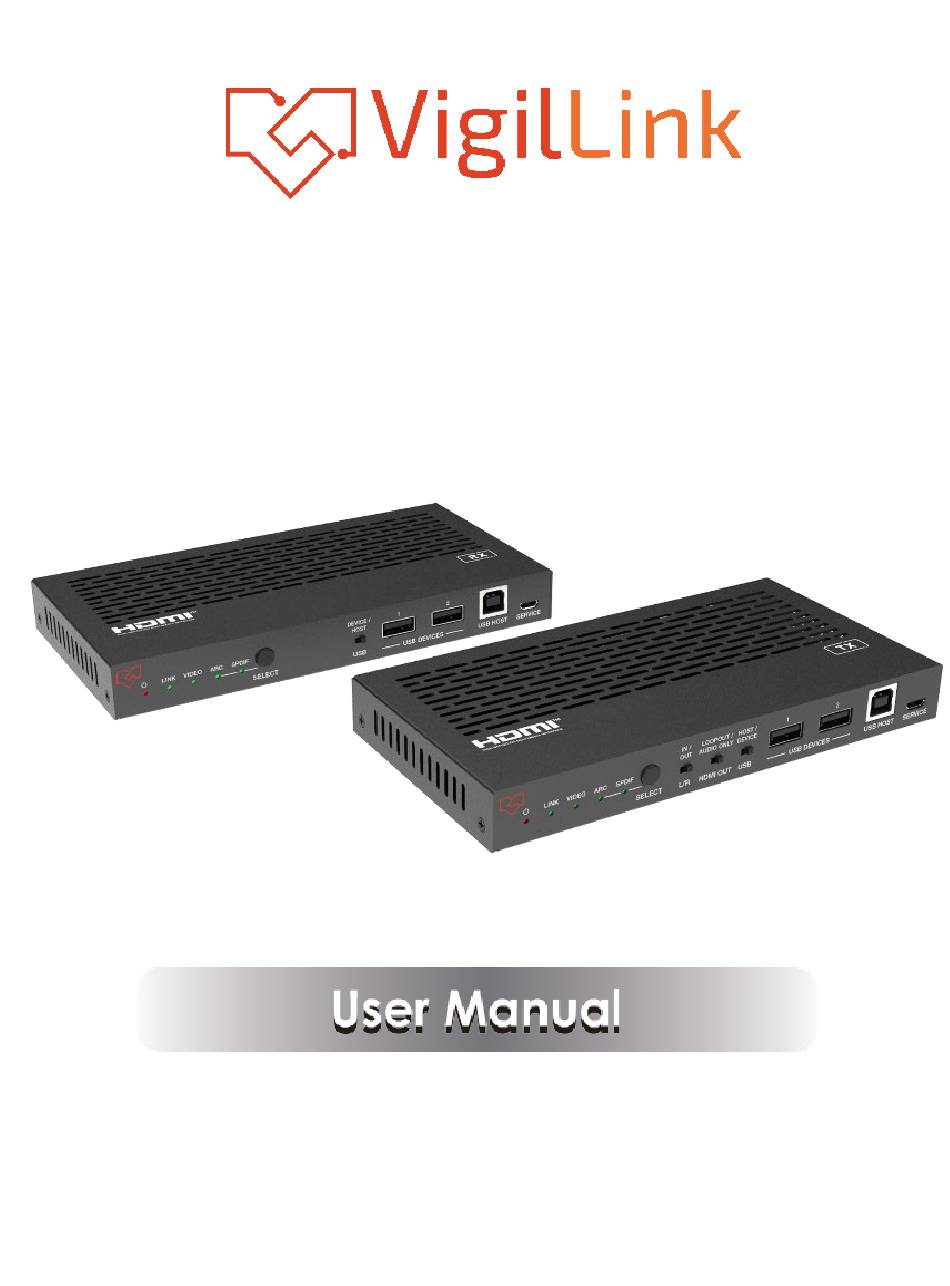

- Page 1 VLEX-HT3100U-TR HDBaseT 3.0 Extender 100m with EARC -VS3000 VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. -
Page 4: Package Contents
3. Package Contents Item HDBaseT 3.0 Extender (Transmitter) HDBaseT 3.0 Extender (Receiver) IR Blaster Cable (1.5 meters) IR Receiver Cable (1.5 meters) Mounting Ears Machine Screws (KM3*4) 3pin-3.81mm Phoenix Connector 24V/1A Locking Power Adapter User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2... - Page 5 RS-232 Up to 921600bps Transmissi 100m (via a single CAT 6A/7 cable) Distance Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) Connection Inputs: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x HDBT OUT [RJ45, 8-pin female] 1x SPDIF OUT [S/PDIF] 1×L/R OUT [3.5mm Stereo Mini-jack]...
-
Page 6: Operation Controls And Functions
Power Consumption 15.36W (POC) Operating 32 - 104°F / 0 - 40°C Temperature Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) Resolution / 4K60 - 4K30 - 1080P60 - Cable Length Feet / Meters Feet / Meters Feet / Meters... - Page 7 ▪ Light on: The device is switched to the SPDIF mode. SPDIF LED ▪ Light off: The device is switched to the ARC mode. SELECT Used for switching the ARC mode and SPDIF mode. button Switch to left; the L/R IN/OUT port is the audio embedding port; L/R IN/OUT Switch to right, and the L/R IN/OUT port is the audio de- switch...
-
Page 8: Receiver Panel
5.2 Receiver Panel Name Function Description 1 Power LED Red LED indicates that the Receiver is powered on. ▪ Light on Transmitter and Receiver are in good connection status. ▪ Light flashing: Transmitter and Receiver are in Low Power Mode. 2 LINK LED ▪... -
Page 9: Input & Output Switching
1G Network port. 12 LAN 10G Network port, connected to the HDBT OUT port of Transmitter 13 HDBT IN with a CAT 6A/7 cable. It is used for various signals pass-through. HDMI signal output port, supporting eARC/ARC TV. 14 HDMI OUT Audio de-embedding output port. - Page 10 Scene 2: Set the Extender to SPDIF Mode. Then switch the LOOP OUT/ AUDIO ONLY switch to the left; the HDMI OUT port of the transmitter is set to LOOP OUT. HDMI OUT HDMI IN UTP Cable LOOP OUT SPDIF IN SPDIF OUT Audio Amplifier Scene 3: Set the Extender to ARC Mode.
-
Page 11: Audio Embedding And De-Embedding
Scene 5: Set the Extender to eARC Mode. Then switch the LOOP OUT/ AUDIO ONLY switch to the right; the HDMI OUT port of the transmitter is set to AUDIO ONLY. Soundbar with eARC HDMI IN eARC HDMI OUT UTP Cable AUDIO ONLY eARC Audio Amplifier... -
Page 12: Usb Mode Applications
▪ TX Audio Embedding When the L/R IN/OUT switch is switched to the left, the audio from the external audio device will be embedded in the L/R IN/OUT port. HDMI IN HDMI OUT UTP Cable L/R IN MP3 Player ▪ TX Audio De-embedding When the L/R IN/OUT switch is switched to the right, The L/R IN/OUT port will output the audio de-embedded from the HDMI IN port. - Page 13 Computer Host USB / Host USB / Device USB Host HDMI IN No Function USB Host UTP Cable HDMI OUT LOOP USB Devices Remote Monitor USB Devices Local Monitor & & Mouse Keyboard 11 / 12...
-
Page 14: Ir Pin Definition
Keyboard Mouse Mode 2: USB reverse from RX to TX Switch the HOST/DEVICE USB switch to the right, then power off and reboot the transmitter to set it to USB Device mode. Meanwhile, switch the DEVICE/HOST USB switch to the right, then power off and reboot the receiver to put it in USB Host mode. - Page 15 remote control is ± 90 °, the transmission distance is 0-8 meters. 13 / 12...
-
Page 16: Application Example
6. Application Example HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 14 / 12...
