- Page 1 HANDHELD TERMINAL Quick start guide PM66 • For more details of product information and user guide, please refer to our website (www.pointmobile.co.kr)
- Page 2 Package contents Device (PM66 Terminal) AC/DC Adaptor (AC plug) Battery Stylus pen Wrist Strap LCD protection film...

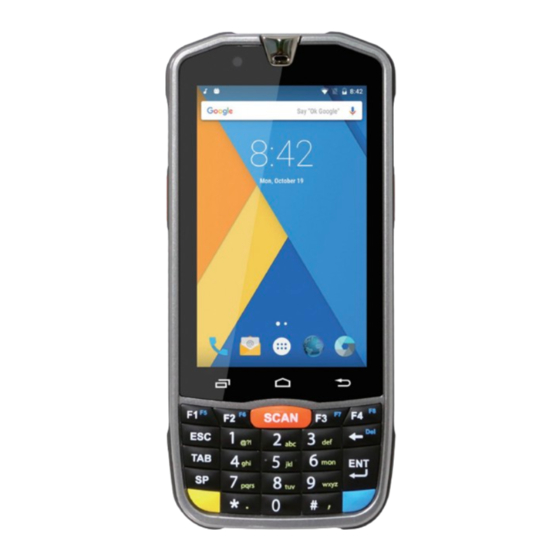

- Page 3 Device layout Front Front camera LED indicator Scan key Touch screen Menu Key Numeric Keyword...
- Page 4 Device layout Back Camera & Flashlight Wrist Strap Battery cover Battery cover push button...
- Page 5 Device layout Up/down & sides Scan window USB connector I/O connector Headphone jack Power Key Volume Up/Down Scan Key Scan Key...
- Page 6 Menu keys Recents key Home key Back key Scan : Activates the image engine to scan a bar code or take an image. Del : Performs the same function as the delete key on a workstation Enter : Performs the same function as the Enter key on a workstation.
- Page 7 Installing battery Press bush button(1) and pull up the cover by pulling each side of cover bottom(2). Insert the battery from top(1) to bottom(2).
- Page 8 Installing battery Remove the battery by lifting the bottom of the battery. Put in the upper part of battery cover first (1) and push down with both hands.
- Page 9 Installing/ Removing Micro SD card Installing Micro SD card Removing Micro SD card 1. Remove battery from device 1. Open the Micro SD card and open Micro SD card cover cover and take off the card. and then Insert Micro SD card. 2.
- Page 10 Charging the battery Insert plug on USB connector and connect to electric socket to charge. LED indicator on upper left of device shows red light while charging and it turns to green light when the device is fully charged. <Caution> Use only items provided in your purchase for charging.
- Page 11 Standard accessory 5V 1.8A AC/DC Adaptor AC plug(US/EU/UK) LCD protection film Battery(4100mAh) Stylus pen Wrist Strap...
- Page 12 Optional accessary SSC(Single Slot Cradle) SEC(Single Ethernet Cradle) 4SC(4 Slot Cradle) 4SBC(4 Slot Battery Charger) Micro USB Cable Gun Handle...
- Page 13 Getting Started Turning the device on and off Press power key on upper right of device to turn on. After few seconds, device will turn on. Off- Press and hold power key for a while till you and tap power off on the screen options. Set up Press power key on upper right of device to turn on.
- Page 14 Scanning Testing barcode scanner Open Demos folder on home screen. Tab ScanDemo run. Press both scan keys at once or any of scan key on the device to scan barcode. Scanned barcode data will show on screen as on the picture left. Point the scanning beam at the center of barcode and keep scanning angle vertical to it.
- Page 15 Scanning: aiming pattern Up/down & sides...
- Page 16 Resetting the device Reboot Press and hold power key for 3 seconds and select Reboot on options to reboot the device. Settings -> back up and reset -> Factory reset -> Reset phone Factory reset Follow the process by tapping next button to complete factory reset.
- Page 17 Setting the date and time Go to below route to set date and time. Settings -> Date and time -> Uncheck automatic date & time, Uncheck automatic time zone Access to above route and alter the following settings according to user’s decision. Set date •...
- Page 18 Connecting to PC Connecting USB data Sync cable Connect to PC and transfer data in Micro SD card/ device storage with I/O USB data Sync cable. Connecting connect USB cable to USB port of PC and I/O connector. Tab media device connection on notification panel of status bar.
- Page 19 For more information Please refer to the usual guide for more information on safety & regulations of device and accessories. Certification Equipment name: Mobile computer Model: PM66 Trade name of certified: POINT MOBILE CO.LTD Manufacturer/ Country of origin: POINT MOBILE CO.LTD/ China...
- Page 20 Warning Do not allow any strong pressure or impact on the touch screen. Do not touch any interior liquid from LCD panel breakage that may cause skin irritation. Use only approved AC/DC power adaptor provided with device or from distributor. Disapproved products may cause unexpected problems as fire, electric shock, etc.
- Page 21 Standard features Specifications Item PM66 Model Operating System Android 6.0 or higher(GMS/CTS certified) Tools and Demos Software Micro-Processor Qualcomm 8916 1.2GHz Quad Core Memory(RAM/ROM) 2GB RAM X 16GB Flash(Upgradable) User accessible Micro SD memory card slot. Memory extension 4.3” Wideviewing angle IPS(480 X 800 pixels)
- Page 22 Wireless Specification (Frequency) WLAN 802.11b/g/n : 2412~2472MHz • 802.11a/n: 5180~5240, 5260~5320, 5500~5700, • 5745~5825MHz Bluetooth 1~3Mbps: 2402~2480MHz • LE: 2402~2480MHz • WCDMA Band 1 (TM): 1922.8~1977.2MHz, (RX):2112.8~2167.2MHz • Band 1 (TM): 1920~1980MHz, (RX): 2110~2170MHz • Band 3 (TM): 1715~1785MHz, (RX): 1810~1880MHz •...
