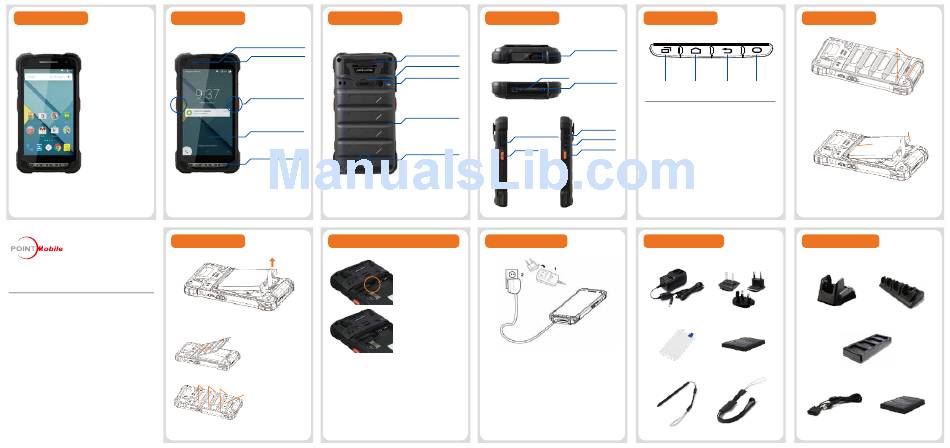

Point Mobile PM80 Quick Start Manual

Package contents

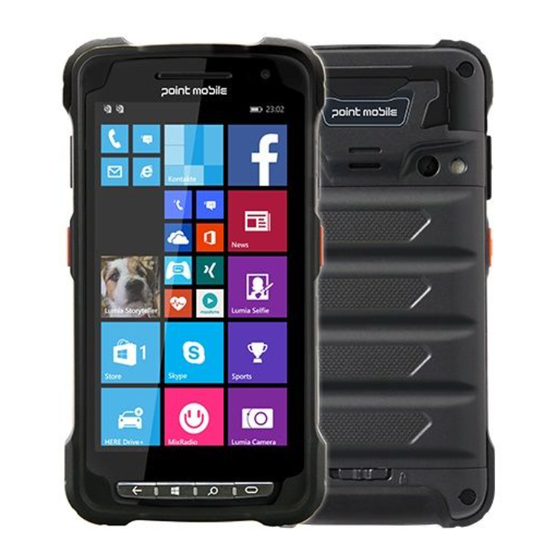

Device layout

Front
Device
Stylus pen with Tether
AC/DC Adaptor (AC plug)
Battery
Wrist Strap
LCD protection film

Removing battery

HANDHELD TERMINAL
Quick start guide
PM80
3. Hold the ribbon and lift upward to remove battery
For more details of product information and user guide, please
•
refer to our website (www.pointmobile.co.kr)
Device layout
Back
L ED indicator
F ront camera
S can key
T ouch screen
M enu keys

Installing/ Removing Micro SD card


4. Insert battery cover,
 top first and press it in
the order named on the
picture.
<Caution>
Then press down on
battery at the center
Micro SD card is not
•
again. standard/optional
  
accessory. Do purchase it

from distributor.
Device supports storage
•
extension upto 32GB with
Micro SD card.
Turn off the device before
•
removing battery.
Device layout
Up/down & sides
E
M SR
S peaker
C amera & Flashlight
D C socket
I
B
attery cover
V
olume Up/Down
S can Key
B attery cover lock

Charging the battery

Installing Micro SD card
1. Remove battery from
device and insert Micro SD
card.
2. Insert battery again
after installing Micro SD
card.
Removing Micro SD card
1. Press Micro SD card
gently and slide it out.
2. Remove Micro SD card
from device.
3. Insert battery again.
Insert plug on AC/DC Adaptor and connect to electric
socket to charge.
LED indicator on upper left of device shows red light
Due to installing/removing
•
while charging and it turns to green light when the device
battery, save the working
is fully charged.
data first and then install
or remove Micro SD card.
<Caution>
Use only items provided in your purchase for charging.
•
You can also charge the device with optional
•
accessory, cradle
Menu keys
xit window
/O Connector
R ecents key H ome key B ack key F unction key
Recents key
• Tap to open the list of recent apps.
H eadset jack
Home key
P
ower key
• Press to return to the Home screen while running apps
S can key • Press to return to the Home screen from other screens
• Press and hold to launch internet
Back key
• Tab to return to the previous screen or to close current
screen (dialog box, option menu, notification panel, etc)
Function key
• Press to set functions on keys
• Press to create shortcut of programs

Standard accessory

5V 2A AC/DC Adaptor AC plug(US/EU/UK)
LCD protection film Battery (3000mAh)
Stylus pen with Tether Wrist Strap

Installing battery



1. Rotate lock to counter clockwise and pull up the
battery cover by holding both sides at bottom.


2. Insert battery, top first, into the battery
compartment.
Optional accessary
SSC(Single Slot Cradle) 4SC(4 Slot Cradle)
4SBC(4 Slot Battery Charger)
I/O USB Sync cable Extended Battery(4000mA)
