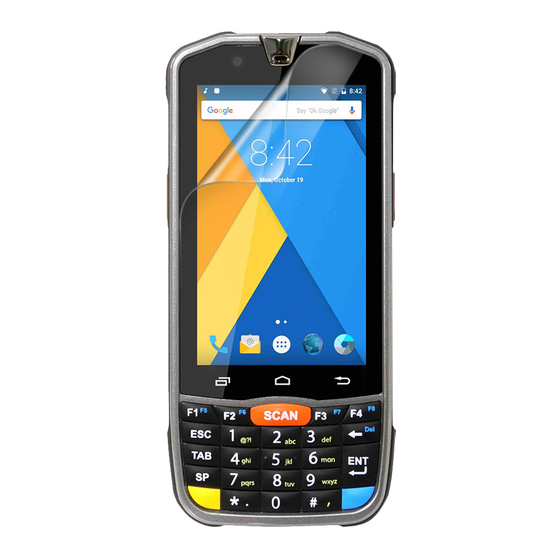

Point Mobile PM66W Quick Start Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

PM66

Quick Start Guide

Please note your phone is battery embedded design with removable

back cover and battery. Unauthorized personnel are strictly

prohibited from disassembling the phone.

If your phone isn't working normally, try to restart it by pressing

and holding the Power key for at least 7 seconds until the startup

screen appears.

If your phone develops a serious error and can't be restored by

restarting it, you may need to restore factory settings by pressing

and holding the Power key and Volume up key until the startup

screen appears. Then select "reboot system now" and press the

Power key to confirm.

Note: Please take care when performing such operations because

they will erase personalized settings and data saved in your phone,

such as SMS, Contacts, Music, etc.

Make sure you are using a Power adapter DC 5V 1.8A output. We

recommend use of Pointmobile power adaptor.

Table of Contents

Need help?

Do you have a question about the PM66W and is the answer not in the manual?

Questions and answers

Summary of Contents for Point Mobile PM66W

Page 1 PM66 Quick Start Guide Please note your phone is battery embedded design with removable back cover and battery. Unauthorized personnel are strictly prohibited from disassembling the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 7 seconds until the startup screen appears.
Page 2: Table Of Contents
Table of contents Your mobile ��1 Text input ��13 Phone call ��14 Contacts ��16 Messaging��16 Email ��18 Getting connected ��19 Find my location using GPS satellites ��21 Data backup ��22 Factory data reset ��22 Applications & Internal storage ��23 Making the most of your device ��24 Safety and use ��25 General information ��35 Warranty ��36...
Page 3: Your Mobile
Your mobile �� 1�1 Keys and connectors Scanner Touch screen Function Key Scan Key Keyboard (Numeric) I/O connector USB Connector Hand Strap Camera Volume key Power key Scan Trigger Scan Trigger Battery Cover Push Button...
Page 4 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Show the pop-up menu to select from Power off/Reboot/Airplane mode/Hot Swap. Press the Power key for more than 7s to restart. • • Press the Power key and Volume up key to reset. •...
Page 5 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover 1. Press push button(1) and pull up the cover by pulling each side of cover bottom(2).   2. Insert the battery from top(1) to bottom(2).   3. Remove the battery by lifting the bottom of the battery. 4.
Page 6 To install, place the SIM card with the chip facing downwards into the housing and slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Your device only supports SIM cards. Do not attempt to insert other SIM types like mini and nano cards;...
Page 7 Charging the battery PM66 has a Standard battery. Standard Battery 4,100mAh/15.8Wh, 3.85V Backup battery 60mAh at 3.7V Charging rate time < 6 hours (from Low-Battery Shutdown level) Connect the battery charger to your device and wall socket respectively, the LED indicator will light red while charging. If the device is suddenly out of power when using, please replace the other battery, then remove the back cover and press the reset button.
Page 8 To reduce power consumption and energy waste, when the battery is fully charged, disconnect your charger; switch off WLAN, GPS, Bluetooth background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your device Hold down the Power key until the device powers on. It will take a few seconds before the screen lights up.
Page 9 Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Search bar • Touch  to enter text search screen. • Touch to enter voice search screen.  Touch an icon to open an application, folder, etc.
Page 10 Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the device sideways to have a better view.
Page 11 Status icons 3G connected Bluetooth is on Connected to a 3G in use Bluetooth device 4G connected Speakerphone is on 4G in use Roaming No signal Headset connected Signal strength No SIM card installed Battery is charging Vibrate mode/ Mute Phone microphone Battery is very low is mute...
Page 12 Notification icons New Gmail message Missed call New Email message Call forwarding is on New text or multimedia Song is playing/pause message Problem with SMS or Connected to VPN MMS delivery New Google Duo More notifications are message hidden New voicemail Audio share Upcoming event Uploading data...
Page 13 Notification panel When there are notifications, touch and drag down the Status bar to open the Notification panel to read more detailed information. Touch to clear all event–based notifications (other ongoing notifications will remain). Quick setting panel Touch and drag down the Notification panel to open the Quick setting panel.
Page 14 1�3�3 Search bar The device provides a Search function which can be used to locate information within applications, the device, or the web. 1�3�4 Lock/Unlock your screen To protect your device and privacy, you can lock the device screen by creating a variety of patterns, PIN or password etc.
Page 15: Text Input
Text input �� 2�1 Using Onscreen Keyboard Onscreen Keyboard settings Touch Settings\Language & input, touch the keyboard you want to setup and a series of settings will become available for your selection. Adjust the Onscreen Keyboard orientation Turn the device sideways or upright to adjust the Onscreen Keyboard orientation.
Page 16: Phone Call
Phone call �� 3�1 Placing a call You can easily place a call using Phone. Touch the Application tab from the Home screen and select Phone. Touch to call the previewed number. Slide to access the RECENTS and CONTACTS. Touch to hide/ display keyboard.
Page 17 If you make a mistake, you can delete the incorrect digits by touching To hang up a call, touch 3�2 Answering or rejecting a call When you receive a call: • Slide the icon to the right to answer; • Slide the icon to the left to reject;...
Page 18: Contacts
Contacts �� You can view and create contacts on your device and synchronize these with your Gmail contacts or other applications on the web or on your device. 4�1 Adding a contact Touch on the Home screen, select Contacts, then touch the icon in the contacts list to create a new contact.
Page 19 To check messages stored in your SIM card,touch the icon from the Messaging screen, then touch Settings\Manage SIM messages. 5�1 Write message On the message list screen, touch the new message icon to write text/multimedia messages. • Touch to view the whole message thread. •...
Page 20: Email
Email �� Besides your Gmail account, you can also set-up external POP3 or IMAP email accounts in your device. To access this feature, touch the Application tab from the Home screen, then select Email. An email setup wizard will guide you through the steps to set-up an email account.
Page 21: Getting Connected
Getting connected �� To connect to the Internet with this device, you can use 3G/LTE networks or WLAN, whichever is most convenient. 7�1 Connecting to the Internet 7�1�1 3G/LTE The first time you turn on your device with your SIM card inserted, it will automatically configure your network service: 3G, LTE.
Page 22 7�3 Connecting to a computer With the USB cable, you can transfer media files and other files between your microSD card/internal storage and the computer. To connect/disconnect your device to the computer: To connect: • Use the USB cable that came with your device to connect the device to a USB port on your computer.
Page 23: Find My Location Using Gps Satellites
Find my location using GPS satellites �� To activate your device’s global positioning system (GPS) satellite receiver: Touch Settings\Location. • • Touch the switch to turn on Google's location service. You can then open Maps to find your location: Use your device’s GPS satellite receiver to pinpoint your location within an accuracy as close as several meters (“street level”).
Page 24: Factory Data Reset
To activate this function: Touch Settings\Backup and reset • of Back up my data. • Touch the switch When this function is activated, a wide variety of settings and data is backed up, including your WLAN passwords, bookmarks, a list of the applications you’ve installed, the words you’ve added to the dictionary used by the onscreen keyboard, and most of the settings that you configure with the Settings application.
Page 25: Applications & Internal Storage
• Communicate with friends. • Exchange messages or emails with friends. • Track your location, view traffic situations, search for locations and get navigation information to your destination. • Download more applications on Google Play Store and more. 11�2 Internal storage Touch Settings\Storage to display the amount of internal device storage used by the operating system, its components, applications (including those you downloaded), permanent and temporary data.
Page 26 • Videos Allows you to insert video files from your PC for playback and then upload them to a handset folder. Music • Quickly search for your favorite songs on your PC, manage the ultimate Library, and enjoy the easiest digital jukebox in your own way.
Page 27: Safety And Use
You should turn on data connection before searching for updates. Settings for auto-check intervals is also available once you restart the device. If you have chosen auto-check, when the system discovers the new version, dialog will pop up to choose download or ignore, the notification also will show in status bar.
Page 28 Use only batteries, battery chargers, and accessories which are recommended by Point Mobile and its affiliates and are compatible with your device model. Point Mobile and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries.
Page 29 Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the devices. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation.
Page 30 Only use the battery for the purpose for which it was designed. Never use damaged batteries or those not recommended by Point Mobile and/or its affiliates. This symbol on your telephone, the battery and the accessories means that these products must be taken to...
Page 31 • RADIO WAVES: Proof of compliance with IEEE 1528 standards is required of all mobile phone models before they can be put on the market. market. The protection of the health and safety for the user and The protection of the health and safety for the user and any other person is an essential requirement of these standards or this directive.
Page 32 Note that any data shared with Point Mobile is stored in accordance with applicable data protection legislation. For these purposes Point Mobile implements and maintains appropriate technical and...
Page 33 -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s).
Page 34 ® the Bluetooth SIG, Inc. and any use of such marks by Point Mobile and its affiliates is under license. Other trademarks and trade names are those of their respective owners. PM66 Bluetooth Declaration ID...
Page 35 Laser Safety 1-1) The viewing the laser output with telescopic optical instruments (for example, telescopes and binoculars) may pose an eye hazard. Do not direct the beam into an area where the instruments are likely to be used. 1-2) Laser products that emit visible radiation in the wavelength range from 400 nm to 700 nm that are safe for momentary exposures but can be hazardous for deliberate staring into the beam.
Page 36 • beam divergence: N/A • pulse duration and repetition rate (or description of irregular pulse pattern): N/A • maximum power or energy output: 0.63 mW 2D laser radiation levels ; • wavelength: 650 nm • beam divergence: N/A • pulse duration and repetition rate (or description of irregular pulse pattern): 16.8mSec •...
Page 37: General Information
Mobile has complied with all quality obligations incumbent upon it as a manufacturer of mobile devices and handsets in complying with Intellectual Property rights. Point Mobile will at no stage be responsible for the inability or failure of the Third Party Materials to operate on this handset or in interaction with any other devices of the purchaser.
Page 38: Warranty
Point Mobile reserves the right at any time to add or remove Third Party Materials from its handsets without prior notice; in no event shall Point Mobile be held responsible by the purchaser for any consequences that such removal may have on the purchaser regarding the use or attempt to use such applications and Third Party Materials.
Page 39: Troubleshooting
In no event shall Point Mobile or any of its affiliates be liable for indirect, incidental or consequential damages of any nature whatsoever, including but not limited commercial or financial loss or damage, loss of data or loss of image to the full extent those damages can be disclaimed by law.
Page 40 • You are advised to fully charge ( ) the battery for optimal operation. • Avoid storing large amounts of data in your device as this may affect its performance. • Use Factory data reset and the upgrade tool to perform device formatting or software upgrading (to reset factory data, hold down the Power key and the Volume up key at the same time).
Page 41 My device cannot connect to a network or “No service” is displayed • Try connecting in another location. • Verify the network coverage with your operator. • Check with your operator that your SIM card is valid. • Try selecting the available network(s) manually. •...
Page 42 I cannot find my contacts • Make sure your SIM card is not broken. • Make sure your SIM card is inserted properly. • Import all contacts stored in SIM card to device. The sound quality of the calls is poor You can adjust the volume during a call by pressing the Volume •...
Page 43 I am unable to connect my device to my computer • Install Smart Suite. • Check that your USB driver is installed properly. • Open the Notification panel to check if the Smart Suite Agent has activated. • Check that your computer meets the requirements for Smart Suite Installation.
