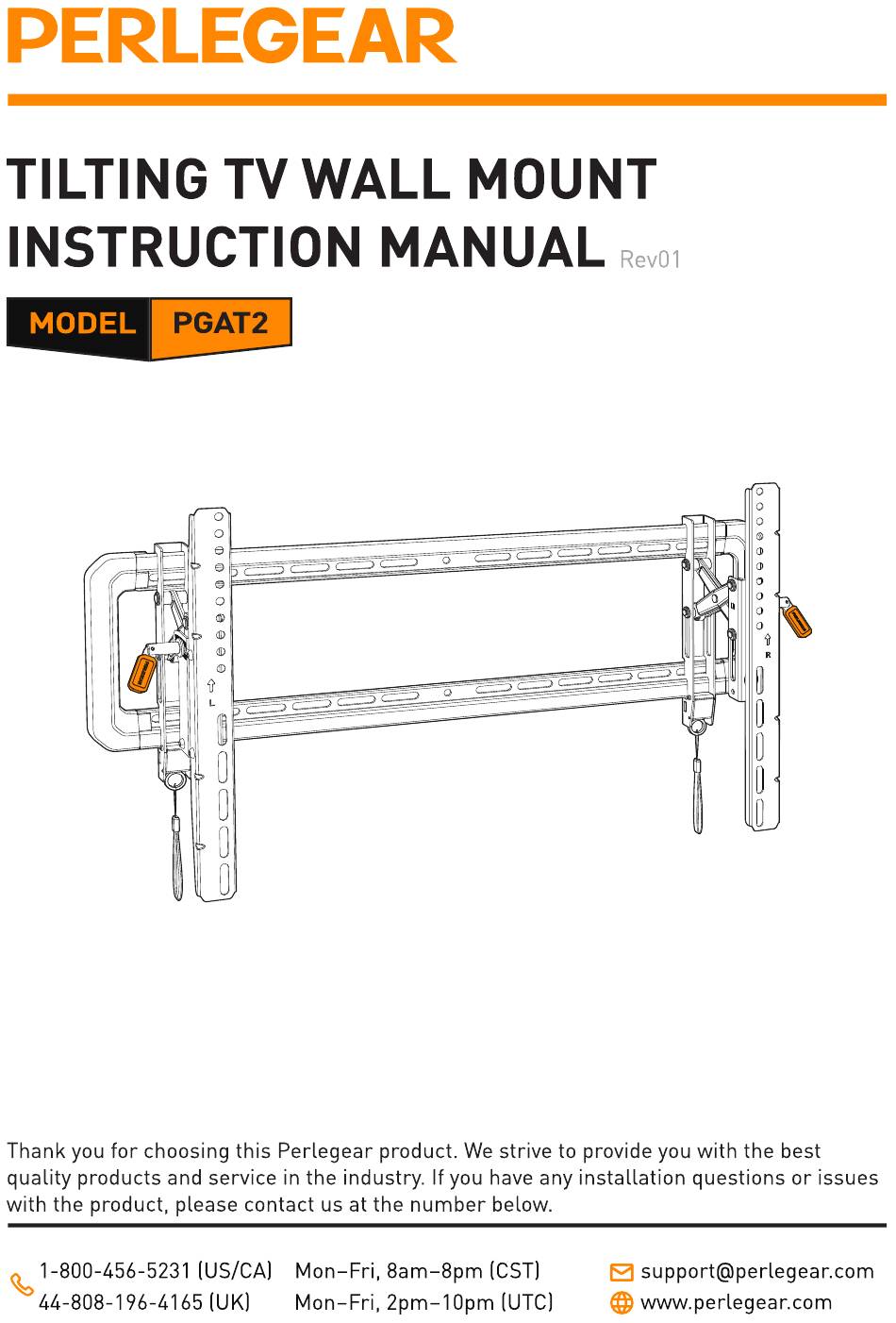

PERLEGEAR
TILTING
INSTRUCTION
MODEL
PGAT2
Thank you for choosing this Perlegear product. We strive to provide you with the best
quality products and service in the industry If you have any installation
with the product, please contact us at the number below
1-800-456-5231
44-808-196-4165
TV WALL
o
(US/CA)
Mon-Fri, 8am-8pm (CST)
(I-JK)
Mon-Fri, 2pm-IOpm (UTC)
MOUNT
MANUAL
RevOl
0
0
0
0
questions or issues
support@perlegear.com
@ www perlegear.com
Advertisement
Related Manuals for Perlegear PGAT2
Summary of Contents for Perlegear PGAT2
- Page 1 RevOl MODEL PGAT2 Thank you for choosing this Perlegear product. We strive to provide you with the best quality products and service in the industry If you have any installation questions or issues with the product, please contact us at the number below...
- Page 2 Left TV Bracket Right TV Bracket Wall Plate...
- Page 3 200 x IOOmm (7 9 x 3 9") Compatibility Maximum: 600 x 400mm (23 6 x 15 7") If this mount is not compatible, please contact our Technical Support line as listed above or Customer Service at support@perlegear.com A WARNING DO NOT exceed load 1501bs indicated.
-
Page 4: Parts And Hardware
Before starting assembly, check all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, contact our Technical Support line as listed above or Customer Service at support@perlegear.com Not all hardware included in this package will be used. - Page 5 TV Bolt 12mm M4 x 30mm 15mm M6 x 35mm 15mm M8 x 35mm M8 x 50mm Wall Plate Wall Plate Template Level ST 5/16 x 2-3/4" Lag Screw CAUTION: This anchor is for concrete or brick walls ONLY DO NOT use them in drywall or Wall Anchor wood...
- Page 6 INSTALLATION ATTACHING TV BRACKETS TO YOUR STEP SELECT TV BOLTS Only one bolt size fits your TV. Hand thread bolts into the threaded inserts on the back of your TVto determine which bolt (M4, M6 or M8) to use. We recommend screwing in at least five turns. Do not turn past the bottom of hole SPACER BOLT...
- Page 7 ATTACH TV BRACKETS TO YOUR —01 A CAUTIO The round holes should be directed toward the top and the slotted holes toward the bottom The brackets should be equally centered from the top and bottom of the TV and must be fastened securely in place.
- Page 8 OPTION B: FOR CURVED BACK Spacers must be tall enough so that the curved back of the TV does not interfere with the mounting plate. Washer BI I B2 Spacer Fl I F21 F3 Alternative Spacer OPTION C: FOR Tvs WITH A BUMP The TV brackets must be flush on the bump and leveled by spacers on the gap.
- Page 9 OPTION D: FOR TVS WITH PROTRUDING CABLES Use spacers to create extra space between the TV and TV brackets Spacer Fl I F21 F3 TV Bolt E2 1 E3 Washer Bl | 82 Alternative Spacer OPTION E: FOR TVS WITH RECESSED HOLES Spacers need to fill in the recessed holes on the back of the TV, while keeping the TV brackets as...
- Page 10 MOUNTING WALL PLATE ON THE WALL For mounting on wood stud walls, go to Option A For mounting on solid concrete or brick walls, go to Option B OPTION A: MOUNTING ON WOOD STUD WALLS A IMPORTAN Maximum horizontal distance between f asteners i s24"(610mm). •...
- Page 11 2 3/4" (70mm) Drill four pilot holes using a 7/32" (5.5mm) 7/32" (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4" (70mm) Drill 7/32" (5 5mm) (not included) Wood Drill HEAVY! You may need assistance with this step Mount the wall plate [03] on the wall using lag screws [A1].
- Page 12 Position the wall plate template [04] at your desired height. Level the wall plate template and mark the holes Pencil (not included) 3" (75mm) 3/8" (10mm) Drill four pilot holes using a 3/8" (10mm) diameter drill bit. Make sure the depth is not less than 311 (75mm).
-
Page 13: Mount Installation
HEAVY! You may need assistance with this step Mount the wall plate [03] on the wall using lag screws [A1] and anchors Tighten the lag screws only until they are pulled firmly against the wall plate (DO NOT overtighten) 1/2" (13mm) Socket Wrench (not included) - Page 14 STEP HANGING TV ON THE WALL PLATE HEAVY! You may need assistance with this step illi Locked Hang the TVon the wall plate [03] using the brackets. Pull both cords [R] down to open the latches, then push them forward toward the wall. The latches should engage on the wall plate Release the cords to lock the TV in place.
- Page 15 STEP REMOVING HEAVY! You may need assistance with this step To remove the TV, first disconnect cables. Pull the cords [R] down and hold them while gently pulling the bottom of the TV away from the wall plate. Exerting too much force may cause the latches to break.
- Page 16 ADJUSTING TILT ANGLE OF THE CAUTION: DO NOT overtighten or overloosen lever. Tilt Tighten Loosen Slightly loosen the lever [T]. Adjust the TVto your desired tilt angle. Retighten the lever [T] to lock the tilt angle...
-
Page 17: Asked Questions
FREQUENTLY ASKED QUESTIONS How should I manage the cables? QUESTION cable ties. QUESTION How do I find the right height for mounting the TV? The simplest method is to position the TV so that the center is the same height as your eye level while viewing. - Page 18 How can I raise/lower the TV if the TV Wall Mount QUESTION already fixed on the wall? Remove TV from TV Wall Mount. 2 Remove the TV brackets from the TV and reattach according to instructions A or B in the picture below (A for lifting up the TV or B for lowering the TV) 3 Hang the TV on the TV Wall Mount and secure A.
- Page 19 It's too hard to adjust the swivel angle or extension QUESTION TV Wall Mount. I. Mount the TV and Wall Mount on the wall before trying to move the arms. Only move the TV by the left and right edges. Do not push on the screen of the TV. 2.
- Page 20 THANK FOR CHOOSING THIS PERLEGEAR PRODUCT PERLEGEAR 1-800-456-5231 (US/CA) Mon-Fri, 8am-8pm (CST) support@perlegear.com @ www perlegear.com 44-808-196-4165 Mon-Fri, 2pm-10pm (UTC) 860-00905-00 Rev01...
