Summary of Contents for Multitech MTE2-L12G2

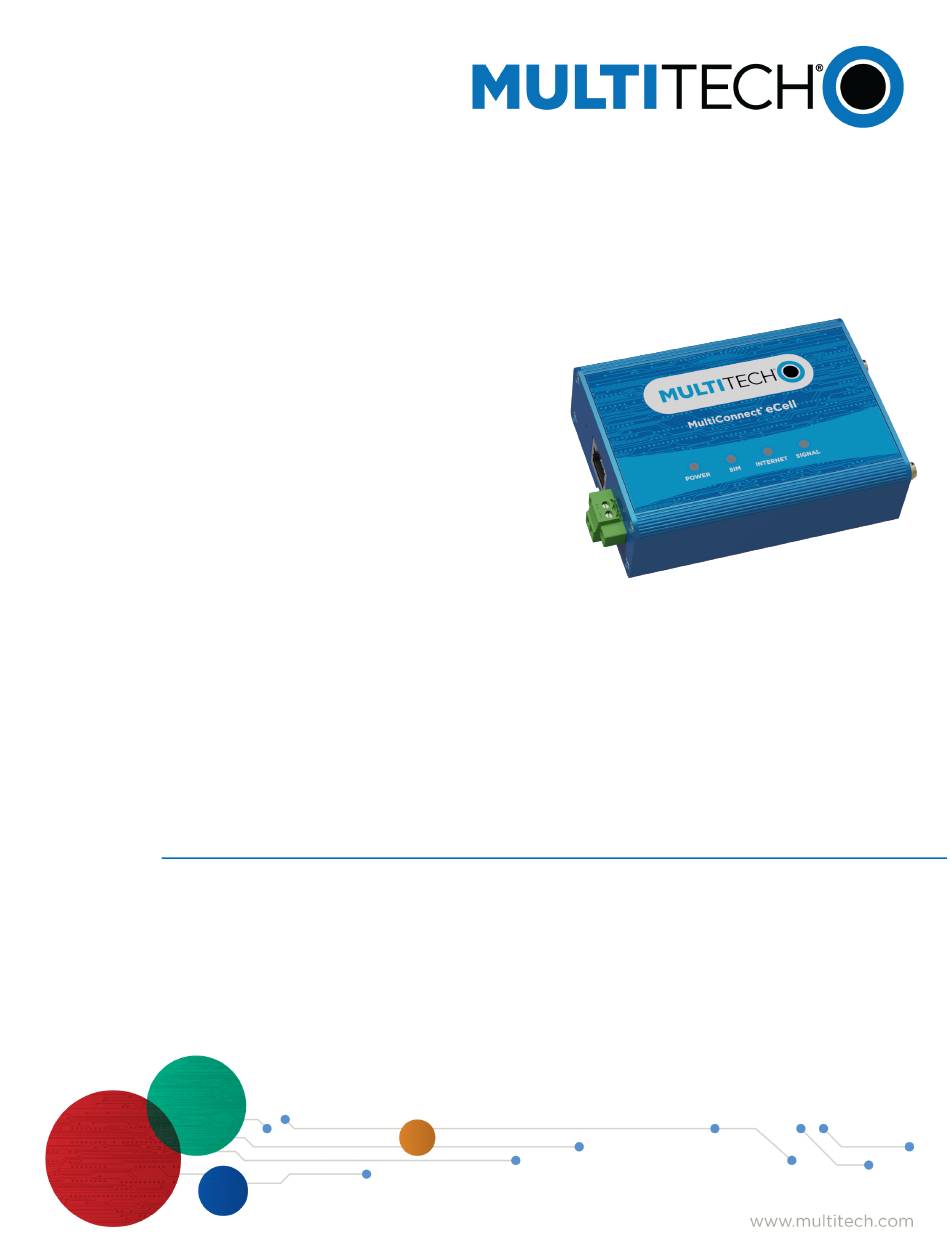

- Page 1 ® MultiConnect eCell MTE2-L12G2 User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
Requesting Device Log Files ............................15 Requesting a Device Reboot ............................. 16 MTE2 Data Usage with DeviceHQ..........................16 Chapter 5 – Advanced Network ..........................17 Advanced Network..............................17 Configuration ................................17 Packet Filters................................17 MAC Control................................17 Options..................................17 ® MultiConnect eCell MTE2-L12G2 User Guide... - Page 4 Restriction of the Use of Hazardous Substances (RoHS) .................... 26 Waste Electrical and Electronic Equipment Statement ....................26 WEEE Directive................................26 Instructions for Disposal of WEEE by Users in the European Union ................ 26 ® MultiConnect eCell MTE2-L12G2 User Guide...
-
Page 5: Chapter 1 - Product Overview
An external Ethernet device LTE and/or CBRS Private LTE Network Ethernet connection Browser Requirements Microsoft Edge 83 or higher Internet Explorer 9.0 or higher Chrome 2.0 or higher Firefox 3.0 or higher Safari 3.0 or higher ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 6: Led Indicators
Flashing: Data is actively transmitting via the Internet. Using DeviceHQ for Device Management DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration AEP devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 7: Chapter 2 - Specifications
-30° C to +70° C Humidity Relative humidity 10% to 93% non-condensing Certifications, Compliance, Warranty FCC Compliance FCC Part 15B and Part 96 (Band 48) Network Compliance LTE and/or CBRS Private LTE Warranty Two years ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 8: Chapter 3 - Installing And Using The Ecell
Connect the Ethernet cable between the Ethernet ports on your computer and the device. Connect 12V power adapter to the 2-pin terminal block power connector. To power up the device, plug the power adapter into an electrical outlet. ® MultiConnect eCell MTE2-L12G2 User Guide... - Page 9 INSTALLING AND USING THE ECELL ® MultiConnect eCell MTE2-L12G2 User Guide...
-
Page 10: Using The Setup Wizard
Internet connection. For more information on the LEDs, refer to LED Indicators. After the device has a valid Internet connection, your computer automatically renews to the new IP address assigned to cellular connection and has full access to the Internet. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 11: Chapter 4 - Basic Network
Network Monitoring: To monitor the WAN interface connection status, check Enable. The system monitors when there is no activity for a defined period of time and resets the cellular connection. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 12: Ethernet Lan
Configuration: Check option for NAT loopback. Allows you to access the WAN IP address from inside your LAN network. Virtual Server: Allows you to setup the WAN IP to LAN IP mapping in order for remote access to LAN devices. Public Port: Enter the public IP port number. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 13: Routing
LAN IP Address: Specify the local IP address of the enabled DHCP Server. This is the LAN IP address of this gateway for the DHCP server. Normally, this IP address is also the default gateway of local computers and devices. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 14: System Management (Devicehq)
DeviceHQ. Log in to DeviceHQ and make sure the new MTE2 device shows up on your account. Setting Up a New Firmware File on DeviceHQ This is performed after logging in to DeviceHQ. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 15: Pushing A Firmware Update To All Devices
Click Schedule, select Upgrade Config, and select the config file. Click OK when prompted. Requesting Device Log Files Click on the individual device to view more details. Click Schedule and select Request Device Logs. Click OK when prompted. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 16: Requesting A Device Reboot
Each time a device checks in, it can take up to 23 KB. Log file upload can vary depending on the size of the log files. Configuration file size can be up to 12 KB. MTE2 firmware file size is approximately 9 MB. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 17: Chapter 5 - Advanced Network
It validates that the traffic passing through that session conforms to the protocol. Discard PING from WAN side: When enabled, this gateway won't reply to any ICMP request packets from the WAN side. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 18: Chapter 6 - System
Tracert Test (NAT mode only): Enter external host IP address and perform trace route test. Reboot: Select reboot now or set a schedule for an auto-reboot to occur. Reset to Default: Resets all settings back to factory defaults. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 19: Scheduling
Click Save to store all schedule settings. External Servers Click Add to add and configure an external syslog server. The server will allow logging to be captured via an external syslog server. Click Save to save all the server settings. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 20: Chapter 7 - Antenna
ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz 1.710 - 2.170 GHz 2.30 - 2.69 GHz VSWR 3:1 maximum Gain 2.06 dBi Impedance 50Ω nominal Radiation Omni-directional Polarization Linear, vertical ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 21: Chapter 8 - Safety Warnings
Based on current research, cellular devices do not pose a significant health problem for most pacemaker wearers. However, people with pacemakers may want to take simple precautions to be sure that their device doesn't cause a problem. ® MultiConnect eCell MTE2-L12G2 User Guide... - Page 22 Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker). ® MultiConnect eCell MTE2-L12G2 User Guide...
-
Page 23: Chapter 9 - Regulatory Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. ® MultiConnect eCell MTE2-L12G2 User Guide... -
Page 24: Fcc Grant Information
20 cm and any additional testing and authorization process as required. The module grantee is responsible for providing the documentation to the system integrator on restrictions of use, for continuing compliance of the module. The host integrator installing this module into their product must ensure ® MultiConnect eCell MTE2-L12G2 User Guide... - Page 25 This device supports 5/10/15/20 MHz bandwidth modes for LTE B42/B43/B48 and uplink intra-band carrier aggregation for LTE B42. ® MultiConnect eCell MTE2-L12G2 User Guide...
-
Page 26: Restriction Of The Use Of Hazardous Substances (Rohs)
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 27 For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product. July, 2005 ® MultiConnect eCell MTE2-L12G2 User Guide...
