Mounting
screws

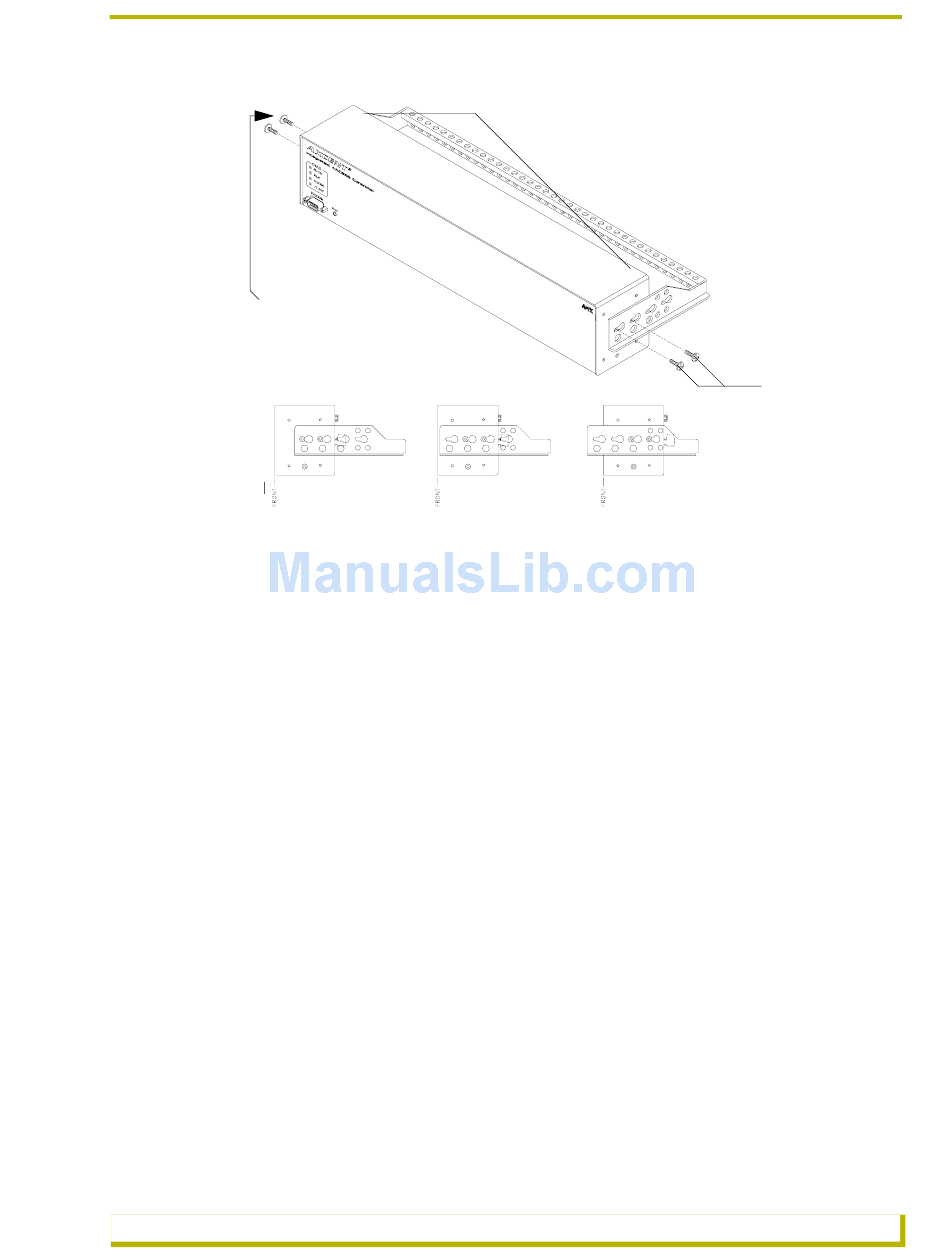

FIG. 3 CSB mounting diagram
5. Align the bracket holes with the mounting brackets on the equipment rack. Then, start the
mounting screws on both sides of the controller and tighten.
6. Connect the data cables into the controller. Then, secure the data cables to the CSB.
7. Connect the power cable to the AXLINK/PWR connector to power-up the controller. Then,
secure the cable to the CSB.
Wiring the Axcent
Each connector you use to control external devices must be wired according to the information in
this subsection.

Preparing and connecting captive wires

1. Strip 0.25 inch of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the wiring
diagrams and connector types.
3. Turn the flat-head screws clockwise to secure the wire in the connector. Do not over-torque the
screw; doing so can bend the seating pin and damage the connector.
3 3
Axcent and Axcent Pro Integrated Axcess Controllers
CSB Cable Support Bracket
2", 4", 6" Mounting Configurations
2"
4"
3
Mounting
screws
6"
Installation
5
