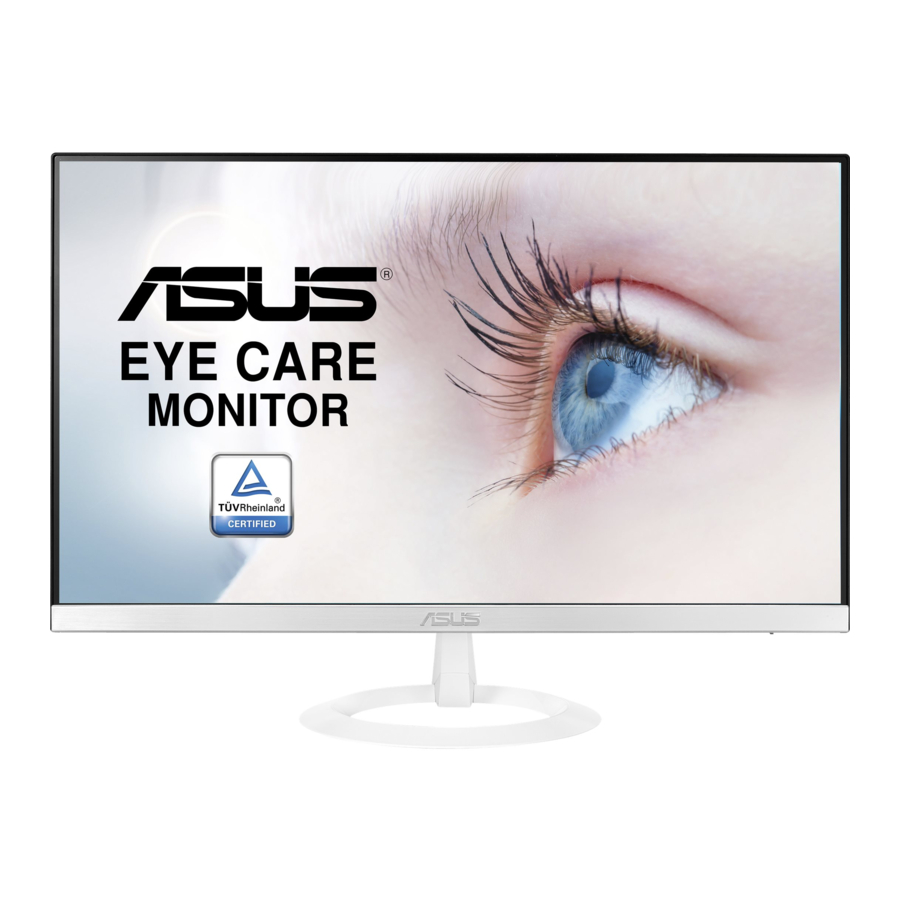

Asus VZ239 Series Manual

Conventions used in this guide

Information to prevent injury to yourself when trying to complete a task.

Information to prevent damage to the components when trying to complete a task.

Information that you MUST follow to complete a task.
NOTE:
Tips and additional information to aid in completing a task.

Package Contents

Check your package for the following items:

• LCD monitor
• Monitor Base
• Quick Start Guide
• Warranty Card
• Adaptor
• Power Cord
• VGA cable
• DVI cable (optional)
• HDMI cable (optional)
• Audio cable (optional)

If any of the above items is damaged or missing, contact your retailer immediately.

Assembling the Monitor Base

1. Have the front of the monitor face down on a table.
2. Attach the base to the arm.
3. Turn the screw clockwise to secure the base. Then adjust the monitor to the angle that is most comfortable for you.

NOTE:
We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

Connect Cables

Rear of the LCD Monitor

1. Speakers
2. Control buttons
3. Kensington Lock
4. HDMI port
5. DisplayPort
6. VGA port
7. Audio-IN port
8. DC-IN port
9. DVI port

Monitor Introduction

Using the Control Buttons

Use the control buttons on the bottom of the monitor to adjust the image settings. Press key 1-6 to activate the key list page.

1. Shortcut Key2:
   • This is a Shortcut key. The default setting is Blue Light Filter.
2. Shortcut Key1:
   • This is a Shortcut key. The default setting is Brightness.
3. QuickFit Button:
   • This is a hotkey to activate the QuickFit function designed for alignment.
   • The QuickFit function contains several options of common grid pattern, paper size, and photo size.
4. Input Button (for VZ239H/VZ239Q models only): Switch the input source.
   Auto Adjust Button (for VZ239N model only): Automatically perform Auto Adjust (only available for VGA input).
5. Close Button:
   • Exit the OSD menu.
6. Menu Button:
   • Enter the OSD menu.
7. Power Button/Power Indicator:
   • Press this button to turn the monitor on/off.
   • The color definition of the power indicator is as the table below.

     Status	Description
     White	ON
     Amber	Standby mode
     OFF	OFF

QuickFit Function

The QuickFit function contains three patterns:

1. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel.

2. Paper size: Provides users to view their documents in real size on the screen.

3. Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen.


Adjusting the Monitor

• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling while changing its angle.
• You can adjust the monitor's angle from -5˚ to 22˚.


NOTE:
It is normal that the monitor slightly shakes while you adjust the viewing angle.

OSD (On-Screen Display) Menu

How to Reconfigure

1. Press the Menu button to activate the OSD menu.
2. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
3. To select the highlighted item on the menu, press the button.
4. Press the and buttons to select the desired parameter.
5. Press the button to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
6. Select to return to previous menu or to accept and return to previous menu.

OSD Function Introduction

1. Splendid
   This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode.

   • Scenery mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Intelligence Technology.
   • Standard Mode: This is the best choice for document editing with SPLENDID™ Video Intelligence Technology.
   • Theater Mode: This is the best choice for movie watching with SPLENDID™ Video Intelligence Technology.
   • Game Mode: This is the best choice for game playing with SPLENDID™ Video Intelligence Technology.
   • Night View Mode: This is the best choice for playing dark-scene game or watching dark-scene movie with SPLENDID™ Video Intelligence Technology.
   • sRGB Mode: This is the best choice for viewing photos and graphics from PCs.
   • Reading Mode: This is the best choice for book reading with SPLENDID™ Video Intelligence Technology.
   • Darkroom Mode: This is the best choice for a weak ambient light environment with SPLENDID™ Video Intelligence Technology.

NOTE:

• In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR functions are not user-configurable.
• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast, and ASCR functions are not user-configurable.
• In the Reading Mode, the Saturation, SkinTone, ASCR, Contrast, and Color Temp. functions are not user-configurable.

2. Blue Light Filter
   Reduce the energy level of blue light emitted from LED backlight.

   • Level 0: No change.
   • Level 1~4: The higher the level, the more blue light will be reduced.

NOTE:

• When Blue Light Filter is activated, the default settings of Standard Mode will be automatically imported.
• Between Level 1 to Level 3, the Brightness function is user-configurable.
• Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable.

3. Color
   Select the image color you like from this function.

   • Brightness: Adjust the brightness level. The adjusting range is from 0 to 100.
   • Contrast: Adjust the contrast level. The adjusting range is from 0 to 100.
   • Saturation: Adjust the saturation level. The adjusting range is from 0 to 100.
   • Color Temp.: Select the desired color temperature. Available options: Cool, Normal, Warm, and User Mode.
     NOTE:
     • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user configurable; the adjusting range is from 0 ~ 100.
   • Skin Tone: Select the desired skin color. Available options: Reddish, Natural, and Yellowish.
4. Image
   You can adjust the image Sharpness, Trace Free, Aspect Control, VividPixel, ASCR, Position, Focus, and Auto Adjust from this main function.


   • Sharpness: Adjust the picture sharpness. The adjusting range is from 0 to 100.
   • Trace Free: Speed up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100.
   • Aspect Control: Adjust the aspect ratio to "Full", "4:3", or "OverScan".
     NOTE:
     • 4:3 is only available when the input source is in 4:3 format.
     • OverScan is only available for HDMI input.
   • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0~100.
   • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function.
   • Adaptive-Sync (for VZ239Q model only): Select ON or OFF to enable or disable the dynamic refresh rate range from 40Hz to 60Hz through DisplayPort stream 1.2.
   • Position: Adjust the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100 (only available for VGA input).
   • More (for VZ239Q model only): Return the next page of Image Setting.
   • Back (for VZ239Q model only): Return the previous page of Image Setting.
   • Focus: Reduce the Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100 (only available for VGA input).
   • Auto Adjust: Automatically perform Auto Adjust (only available for VGA input).
5. Input Select
   Select the input source.


6. System Setup
   Adjust the system configuration.






   • Splendid Demo Mode: Activate the demo mode for the Splendid function.
   • Volume (for VZ239H/VZ239Q models only): Adjust the volume level.
   • DisplayPort Stream (for VZ239Q model only): Select DP 1.1 or DP 1.2.
   • ECO Mode: Activate the ecology mode for power saving.
   • OSD Setup: Adjust the OSD Timeout, DDC/CI, and Transparency of the OSD screen.
   • Language: Select the OSD language.
   • Key Lock: Pressing the second button on the right for more than five seconds to activate the key lock function.
   • Information: Display the monitor information.
   • More: Return the next page of System Setting.
   • Back: Return the previous page of System Setting.
   • Power Indicator: Turn the power LED indicator on/off.
   • Power Key Lock: Disable/Enable the power key.
   • All Reset: Select YES to revert all settings to the factory default mode.
7. Shortcut
   Assign the specific function to the two shortcut keys.


   • Shortcut 1: Assign a function to the Shortcut Key1.
     Available options: Blue Light Filter, Splendid, Brightness, Auto Adjust, Contrast, Color Temp., Volume (for VZ239H/ VZ239Q models only), and GamePlus. The default setting is Brightness.
   • Shortcut 2: Assign a function to the Shortcut Key2.
     Available options: Blue Light Filter, Splendid, Brightness, Auto Adjust, Contrast, Color Temp., Volume (for VZ239H/ VZ239Q models only), and GamePlus. The default setting is Blue Light Filter.

GamePlus Function

The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. The Crosshair overlay with four different crosshair options lets you choose the one that best suits the game you're playing. The onscreen Timer can be positioned on the left of the display to keep track of the elapsed gaming time. The FPS (frames per second) counter lets you know how smooth the game is running (for VZ239Q model only).
To activate GamePlus:

1. Press the Menu button to activate the OSD menu.
2. Press the or button to select Shortcut. Then press the button to enter the Shortcut menu.
3. Press the or button to select Shortcut 1 or Shortcut 2.
4. Press the button to enter the Shortcut 1 or Shortcut 2 submenu.
5. Press the or button to select GamePlus. Then press the button to confirm the GamePlus submenu.
6. Press the or button to select Crosshair, Timer, or FPS Counter (for VZ239Q model only). Then press the button to confirm the selection.
7. Press the button repeatedly to exit the OSD menu.
8. Press the assigned Shortcut Key1 or Shortcut Key2 to activate the GamePlus main menu.


Specifications

*Specifications subject to change without notice.
** measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection.

Troubleshooting (FAQ)

Supported Timing List

VESA/IBM Modes Support Timing

* Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above.

Safety Information

• Before setting up the monitor, carefully read all the documentation that came with the package.
• To prevent fire or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.
• This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Where to find more information
Refer to the following sources for additional information and for product and software updates.

1. ASUS websites
   The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com
2. Optional documentation
   Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.
