Asus ROG SWIFT OLED PG42UQ Manual

Welcome

The latest widescreen OLED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual experience that the monitor brings to you!

Package contents

Check your package for the following items:

  • OLED Monitor
  • Monitor Base
  • Quick Start Guide
  • Warranty Card
  • Power Cord
  • Ultra High Speed HDMI 2.1 Cable
  • DP Cable
  • USB Cable
  • Input/Output port cover
  • Color Calibration Testing Report
  • Remote Control
  • Battery
  • ROG sticker

  • If any of the above items is damaged or missing, contact your retailer immediately.

  • If no signal is detected for around 10 minutes, the monitor automatically enters saving mode.

Attaching the Stand

Attaching the Stand

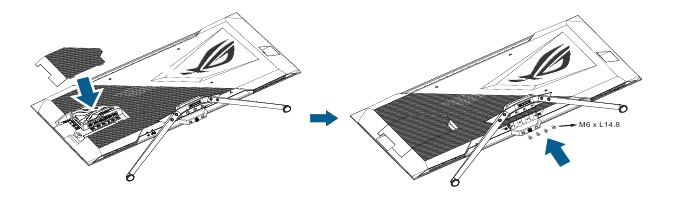

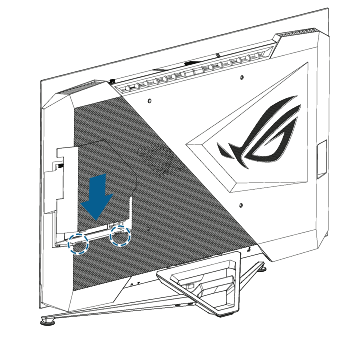

  1. Remove the input/output port cover from the rear of the monitor. Then remove the Allen wrench from the cover.
  2. Replace the input/output port cover. Then align and install the stand onto its slot.
  3. Using the Allen wrench, secure the stand with the four (4) M6 x 15mm screws.

  • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor

Cable Management

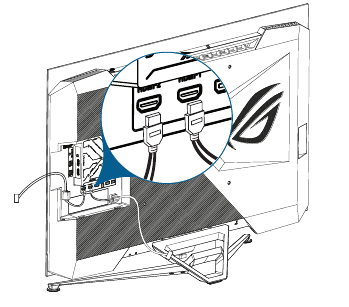

You can organize the cables with the help of the input/output port cover.

  • Arranging the cables
  • Using the input/output port cover: the cover can be attached or detached.

Remote Control

Remote Control

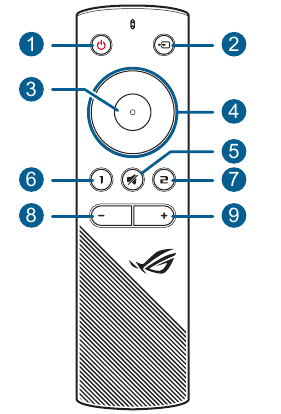

  1. Power button: Turn the monitor on/off.
  2. Input button: Switch the input source.
  3. Enter button: Confirm the selection.
  4. Navigation buttons: Increase/Decrease values or moves your selection up/down/left/right.
  5. Mute button: Turn off the sound temporarily.
  6. Shortcut 1 button: By default, it is GamePlus hotkey. To change the hotkey function, go to the MyFavorite > Shortcut > Shortcut1 menu.
  7. Shortcut 2 button: By default, it is GameVisual hotkey. To change the hotkey function, go to the MyFavorite > Shortcut > Shortcut2 menu. change the hotkey function, go to the MyFavorite > Shortcut > Shortcut2 menu.
  1. Volume Down button: Decrease the volume level.
  2. Volume Up button: Increase the volume level.

For battery replacement:
Open the battery cover and install the batteries into the battery compartment. Then replace the battery cover.

The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

  • Place "AAA" batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment.
  • Do not mix battery types.
  • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.
  • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment.
    Don't touch exposed battery acid, as it can damage your skin.
  • If you do not intend to use the remote control for a long period, remove the batteries.

Connect cables

Rear of the LCD monitor

Rear of the LCD monitor

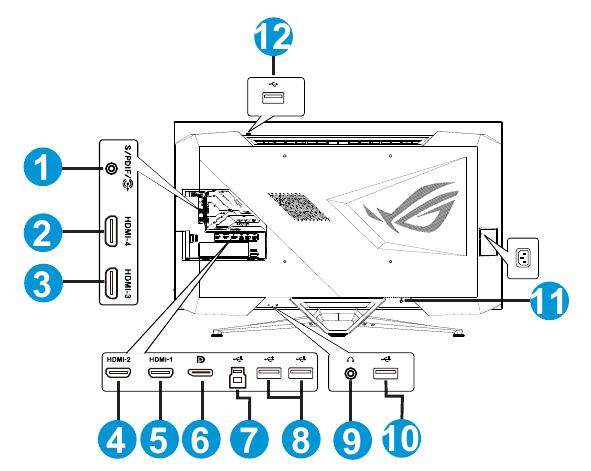

  1. S/PDIF (Optical Digital Audio Out)
  2. HDMI2.0 Port
  3. HDMI2.0 Port
  4. HDMI2.1 Port
  5. HDMI2.1 Port
  6. DisplayPort
  7. USB3.2 Gen 1 upstream Port
  8. USB3.2 Gen 1 Downstream Port
  9. Earphone Jack
  10. USB3.2 Gen 1 Downstream Port
  11. Kensington Lock
  12. USB3.2 Gen 1 Downstream Port

Monitor introduction

Front/Side view

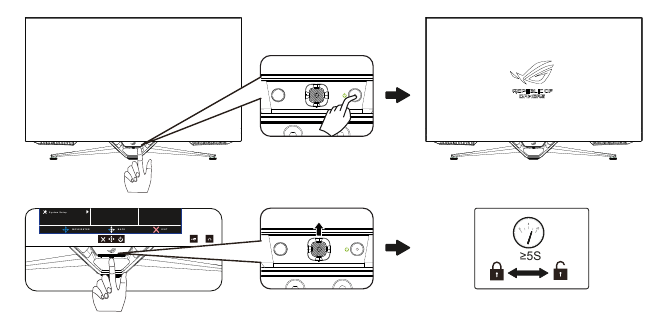

Use the control button on the bottom of the monitor to adjust the monitor settings.
Front/Side view

  1. Power Indicator:
    The color definition of the power indicator is as the below table.
    Status Description
    Status Description
    Red ON (Power Setting is Standard mode.)
    Amber Standby mode (Power Setting is Standard Mode.)
    OFF OFF
    Standby mode (Power Setting is Power Saving Mode.)
  2. Power Button:
    • Press this button to turn the monitor off. Press any key to turn on the monitor.
  3. (5-way) Button:
    • Press this button to turn on the OSD menu.
    • Increases/Decreases values or moves your selection up/down/ left/right
  4. Close Button:
    • Exit the OSD menu.

Adjusting the monitor

Adjusting the monitor

  • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
  • Hold the stand to prevent the monitor from falling when you change its angle.

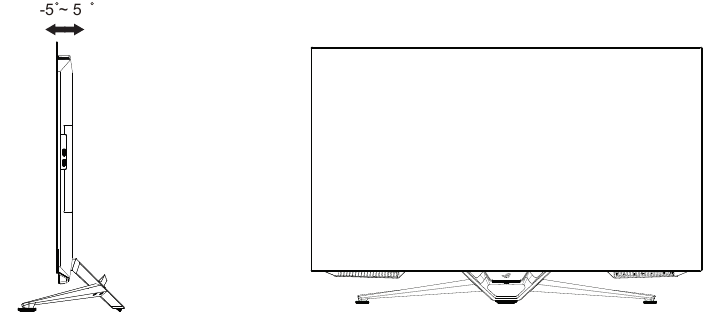

  • You can adjust the monitor's angle from -5˚ to 5˚.

informationIt is normal that the monitor slightly shakes while you adjust the viewing angle.

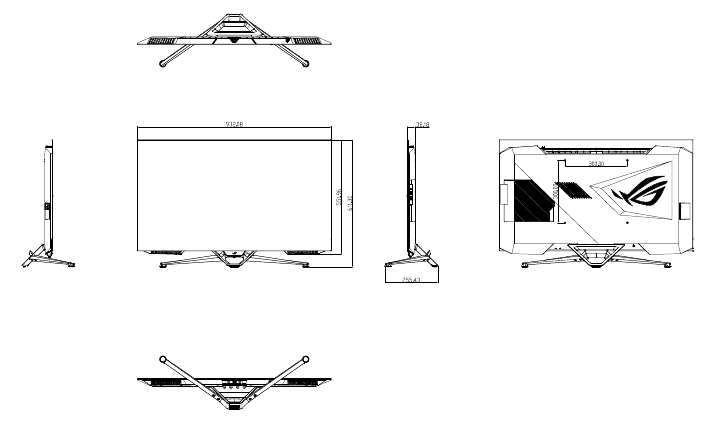

Outline dimension

Unit: mm [inch]
Outline dimension

Turning on the monitor

You can either press the button on the remote control or the button on the monitor to turn on the monitor.
If the Power Indicator function is enabled and an input source is detected, the power LED will light up red to indicate that the monitor is turned on.
The power LED will not light up in Power Saving mode.

For VESA wall mount

  • Avoid damaging the monitor surface. While detaching the monitor stand, always keep the monitor inside its EPS packaging.

The detachable stand of this monitor is specially designed for VESA wall mount.

  1. Disconnect power and signal cables. Carefully put the monitor face-down on its EPS packaging and detaching Stand

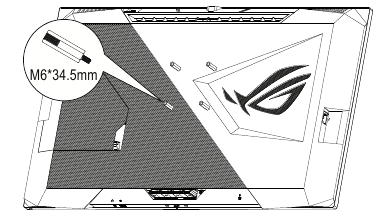

  2. Set the screw pitch *4 (M6*34.5mm, Included on the porch ) on VESA holes
    For VESA wall mount

informationNOTE

  • The VESA wall mount kit ( 100 x 100 mm) is purchased separately.
  • Use only the UL Listed Wall Mount Bracket with minimum weight/load 28.8 kg.

OSD (On-Screen Display) menu

How to reconfigure

You can either use the remote control or the Control buttons on the monitor to navigate through the menu and make adjustments.
How to reconfigure
To navigate through the menu and make adjustments using the remote control, do the following:

  1. Press the Enter button to activate the OSD menu.
  2. Move the Navigation button up/down to navigate through the functions. Highlight the desired function and press the Enter button to activate it. If the function selected has a sub-menu, move the Navigation button up/down again to navigate through the sub-menu functions. Highlight the desired sub-menu function and press the Enter button or move the Navigation button right to activate it.
  3. Move the Navigation button up/down to change the settings of the selected function.
  4. To exit and save the OSD menu, move the Navigation button left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1 to 3.

OSD Function Introduction

  1. Gaming
    Configure your gaming preferences.

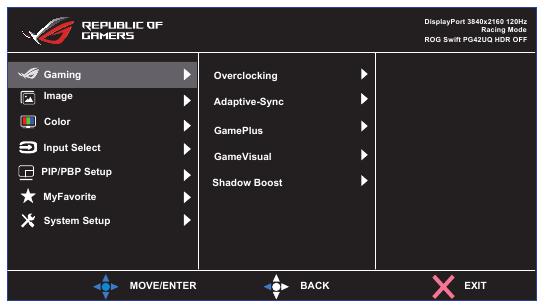

    OSD Function Introduction - Part 1
    • Overclocking:Adjust the refresh rate.
      • ON: This function allows you to adjust the refresh rate.
      • Max Refresh Rate: Allow you to select a maximum refresh rate of 138Hz (Only for DisplayPort / HDMI1 / HDMI2 input).
      • informationOverclocking may cause screen flickering. To reduce such effects, disconnect the DisplayPort cable and use the monitor OSD menu to try again with a safer Max. Refresh rate.
    • Variable Refresh Rate: Allow an Adaptive-Sync supported graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.
      informationNOTE
      • This function can only be activated within 48Hz~120Hz for HDMI1/HDMI2 and 48Hz~138Hz for DisplayPort with Overclocking.
      • For supported GPUs, minimum PC system and driver requirements, please contact the GPU manufactures.
  • GamePlus: Configure the gaming environment. See GamePlus Function for details.
  • GameVisual: Select the picture mode. See GameVisual Function for details.
  • Shadow Boost: Adjust the monitor gamma curve to enrich the dark tones in an image, making dark scenes and objects much easier to be seen.
  1. Image
    Configure the image settings.

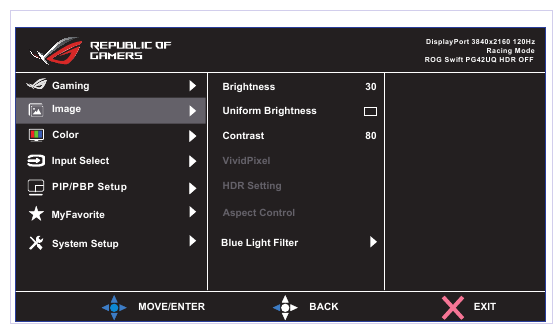

    OSD Function Introduction - Part 2
  • Brightness: Adjust the brightness level.
  • Uniform Brightness: With the feature enabled, the system will not adjust the maximum brightness of the screen when the screen is displayed in a different screen size.
  • Contrast: Adjust the contrast level.
  • VividPixel: Enhance the outline of the displayed picture and generates high-quality images on screen.
  • HDR Setting: Set the HDR mode to ASUS Gaming HDR, ASUS Cinema HDR, or Console HDR. The HDR brightness can be adjusted when the Brightness Adjustable function is enabled.
  • Aspect Control: Adjusts the aspect ratio to Full, Equivalent, 1:1, 16:9 (24"W), 16:9 (27"W), and 21:9 (34"W).
  • Blue Light Filter: Reduce the energy level of blue light emitted from the LED backlight.
  • Level 0: No change.
  • Level 1~4: The higher the level, the less blue light is scattered. When Blue Light Filter is activated, the default settings of Racing Mode will be automatically imported. Between Level 1 to Level 3, the Brightness function is userconfigurable. Level 4 is optimized setting. The Brightness function is not user-configurable.
  • informationThe Monitor uses low blue light panel and compliance with TÜV Rheinland Low Blue Light Hardware Solution at factory reset/default setting mode (Brightness: 90%, Contrast: 80%, CCT: 6500K, Preset mode: Racing mode, Power Setting: YES).
    informationPlease refer to the following to alleviate eye strains:
  • Users should take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 mins) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a single longer break.
  • To minimize eye strain and dryness in your eyes, users should rest the eye periodically by focusing on objects that are far away.
  • Eye exercises can help to reduces eye strain. Repeat these exercises often. If eye strain continues please consult a physician. Eye exercises: (1) Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal.
  1. Color
    Select the image color you like from this function.

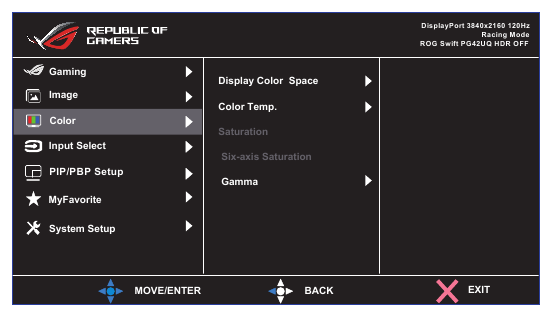

    OSD Function Introduction - Part 3
  • Display Color Space: Select color space to sRGB and DCI-P3.
  • Color Temp.: Contains seven preset color modes (4000K, 5000K, 6500K, 7500K, 8200K, 9300K, 10000K) and User Mode.
  • Saturation: The adjusting range is from 0 to 100.
  • Six-axis Saturation: Set R/G/B/C/M/Y saturation. The range is from 0 to 100.
  • Gamma: Contains three gamma modes including 1.8, 2.0, 2.2, 2.4, 2.6.
  • informationIn the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 ~ 100.
  1. Input Select
    Select your desired input source and toggle the Auto Input Detection function between on and off. The monitor input source will not automatically switch when the Auto Input Detection function is disabled.

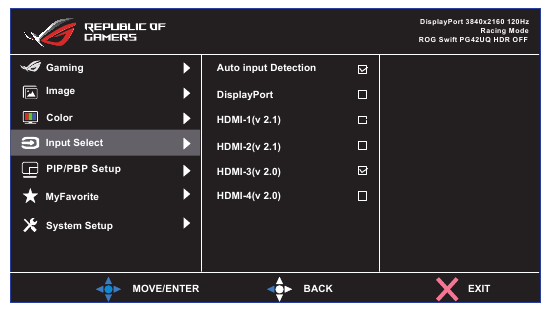

    OSD Function Introduction - Part 4
  2. PIP/PBP Setup
    The PIP/PBP Setting allows you to open up sub-window(s) connected from any video source.

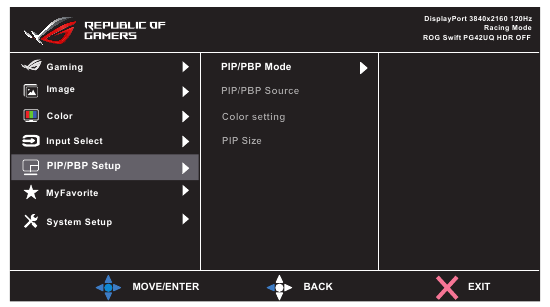

    OSD Function Introduction - Part 5
  • PIP/PBP Mode: Select PIP, PBP or turn it off.
  • PIP/PBP Source: Selects the video input source among, "DisplayPort, HDMI-1 (v 2.1), HDMI-2 (v 2.1), HDMI-3 (v 2.0), HDMI-4 (v 2.0)".
  • Color setting: Set GameVisual mode for each PIP/PBP window.
  • PIP Size: Adjust the PIP size to "Small", "Middle", or "Large".
  • informationDisable Adaptive-Sync/Variable Refresh Rate and HDR function to enable PIP/PBP function.
  1. MyFavorite
    Assign a function to the shortcut button, save the current system configurations, or restore the system configuration.

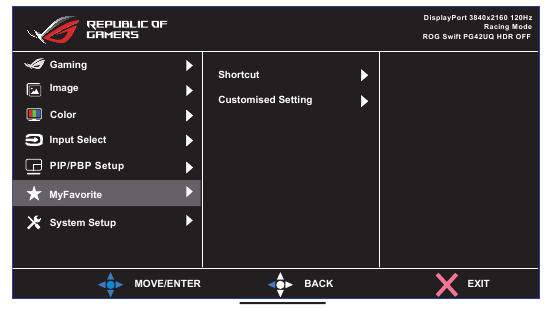

    OSD Function Introduction - Part 6
  • Shortcut: Assign a function for the designated shortcut button.
  • Customized Setting: Load/Save all settings on the monitor.
  1. System Setup
    Adjust the system configurations.

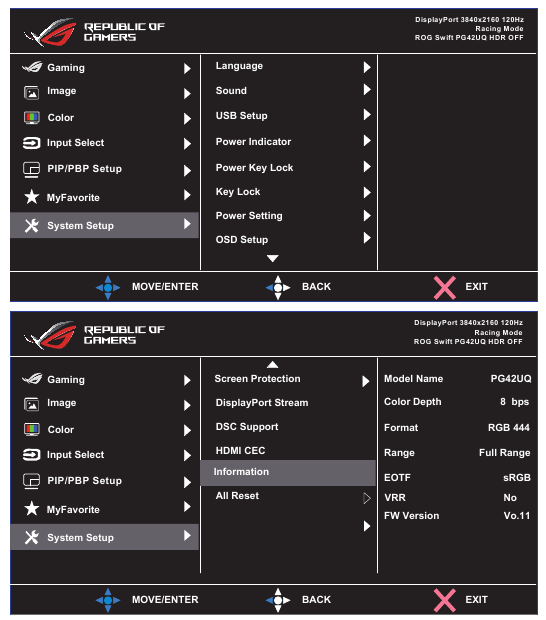

    OSD Function Introduction - Part 7
  • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croacia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian and Ukrainian.
  • Sound: Configure the sound related settings.
    • Volume: Adjust the volume level.
    • Mute: Enable/Disable the mute function.
    • Sound Source: Select the monitor sound comes from which source.
    • Sound Output: Set the sound output setting to the speaker, line out, or headphone.
    • AudioWizard: Select the sound mode.
  • USB Setup: Sets the USB Hub availability during standby.
  • Power Indicator: urn the power LED indicator on/off.
  • Power Key Lock:Disable/Enable the Power key.
  • Key Lock: Enable this function to disable all function keys. Press the Navigation button down for more than five seconds to cancel the key lock function.
  • Power Setting:Select the power setting mode.

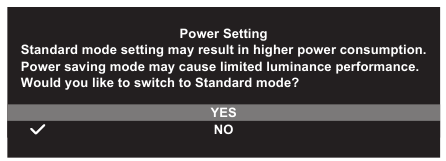

    If the setting is set to Standard Mode, it may result in higher power consumption. On the other hand, if the setting is set to Power Saving Mode, it may cause limited luminance performance.
  • OSD Setup: Configure the OSD menu related settings.
    • OSD Position: Set the OSD menu position.
    • OSD Timeout: Adjust the OSD timeout.
    • Transparency: Adjust the OSD background from opaque to transparent.
    • Zoom By Remote Control: Select the OSD menu size when using the remote control.
    • Zoom by Hot Key: Select the OSD menu size when using the Control buttons.
    • DDC/CI: Enable/Disable the DDC/CI function.
  • Screen Protection:Configure the screen saver related set up. You can improve the image quality issues related to image retention when the screen is on for a certain amount of time.
    • Screen Saver: Enable/disable the screen saver function. The screen brightness will automatically decrease when there is no change on the screen.
    • Pixel Cleaning: It calibrates any issues that may arise on the screen when your monitor has been turned on for a long time. The process will take approximately 6 minutes. This function will automatically activate when the monitor is turn off. Do not unplug the power cord while it is in progress. If you power on the monitor, the Pixel Cleaning will stop operating.
    • Screen Move: Select the screen movement level to prevent image sticking on the display panel.
    • Adjust Logo Brightness: Enable this function to allow the system to automatically adjust the logo brightness to correct the potential picture quality issues.
    • DisplayPort Stream: Select DisplayPort 1.2 or DisplayPort 1.4 according to the graphic card DP version.
    • DSC: Enable/Disable the DSC (Display Stream Compression) function.
    • HDMI CEC: Enable/Disable the HDMI CEC function. If the function is enabled, you can use the remote control to control the devices connected to the monitor through the HDMI ports.
    • Information: Display the monitor information.
    • All Reset: Select YES to revert all settings to the factory default mode.

Specifications

Panel type OLED
Panel Size 41.5" W (106 cm)
Max. Resolution 3840x2160
Pixel Pitch 0.2395 mm x 0.2395 mm
Brightness 135 nits(Type.)(APL 100%)
Contrast Ratio 1500000:1(APL 25%)Type
Viewing Angle (H/V) 178°(V) /178°(H)
Display Colors 1.07B
Response Time 0.1 ms (G TO G )
Color temperature selection 8 color temperatures
Analog input No
Digital input DisplayPort v1.4 x 1, HDMI v2.0 x 2, HDMI v2.1 x 2
Earphone jack Yes
Audio output Yes
Speaker (Built-in) Yes
USB3.2 Port 4xUSB 3.2 Gen 1 Type-A
Colors Black
Power LED Red(On)/Orange(Standby)/Blinking
Orange(Pixel Cleaning)(The LED is OFF by default)
Tilt -5° ~ +5°
Swivel No
Height adjustment No
VESA wall mount 300 x 300 mm
Kensington lock Yes
Voltage rating AC 100-240V, 50/60 Hz
Power consumption Power On: < 220 W
Standby: <0.5 W
Power Off: <0.3 W
Temperature (Operating) 0°C ~ 40°C
Temperature (Non-operating) -20˚C ~ +60˚C
Dimensions (W x H x D) 932.08 X 611.3 X 255.4 mm(with stand ) 932.08 X 551.96 X 37.38 mm(without stand)
1070 x 870 x 188 mm(Package)
Weight (Esti.) 13.58 kg (without stand)
14.77 kg (Net)
20.07 kg (Gross)
Multi-languages English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croacia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian, Ukrainian
Accessories DP cable, HDMI cable, USB cable, power cord, quick start guide, warranty card, color calibration testing report, ROG sticker, Input/Output port cover

*Specifications subject to change without notice.

Troubleshooting (FAQ)

Problem Possible Solution

Power LED is not ON

  • Press the button to check if the monitor is in the ON mode.
  • Check if the power cord is properly connected to the monitor and the power outlet.
  • Check Power Indicator function in main menu OSD. Select "ON" to turn on power LED.
The power LED lights amber and there is no screen image
  • Check if the monitor and the computer are in the ON mode.
  • Make sure the signal cable is properly connected the monitor and the computer.
  • Inspect the signal cable and make sure none of the pins are bent.
  • Connect the computer with another available monitor to check if the computer is properly working.

Screen image is too light or dark

  • Adjust the Contrast and Brightness settings via OSD.
Screen image bounces or a wave pattern is present in the image
  • Make sure the signal cable is properly connected to the monitor and the computer.
  • Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)
  • Inspect the signal cable and make sure that none of the pins are bent.
  • Perform Reset via OSD.
  • Adjust the R/G/B color settings or select the Color Temperature via OSD.

No sound or sound is low

  • Adjust the volume settings of both your monitor and computer.
  • Make sure the computer sound card driver is properly installed and activated.
  • Check the audio source.

The BIOS screen cannot be displayed

  • Please enable CSM function and Gaming Mode.
  • * Set Power Setting to Standard Mode.

Power on for longer time

  • After the monitor is turned off, it will perform the cleaning image sticking in the background. Pressing the power button during cleaning image sticking will abort the action. So, power on the monitor will be slower.

Supported Timing List

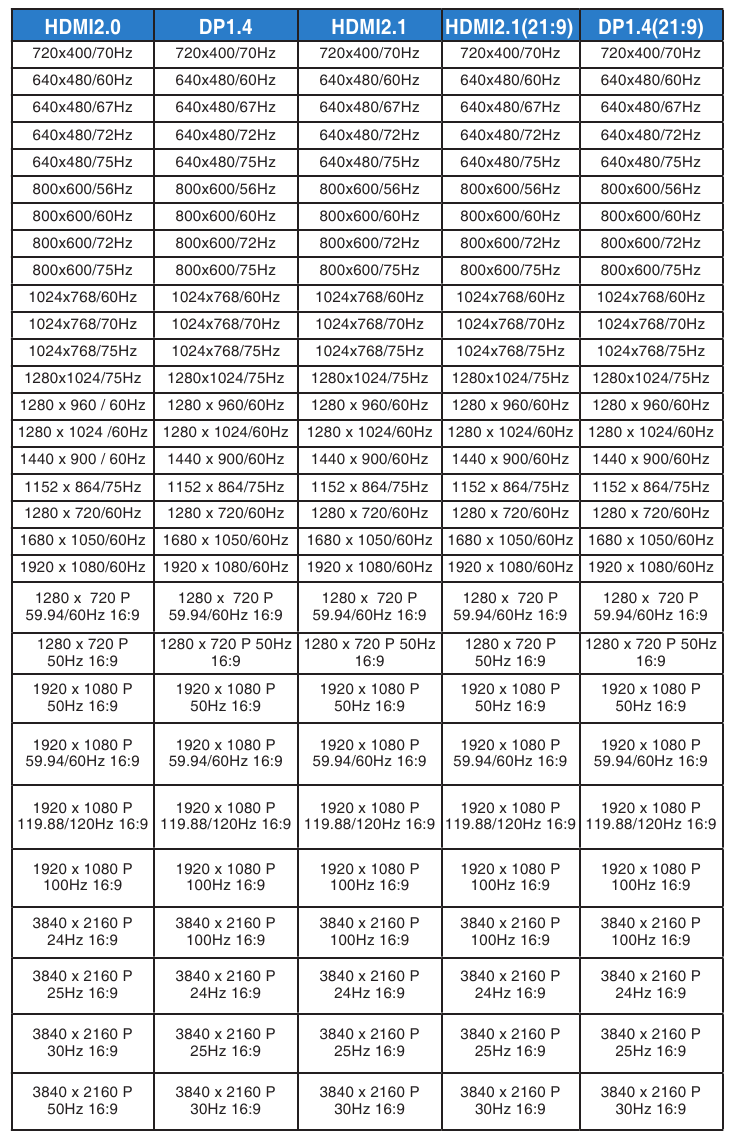

Supported Timing List - Table 1

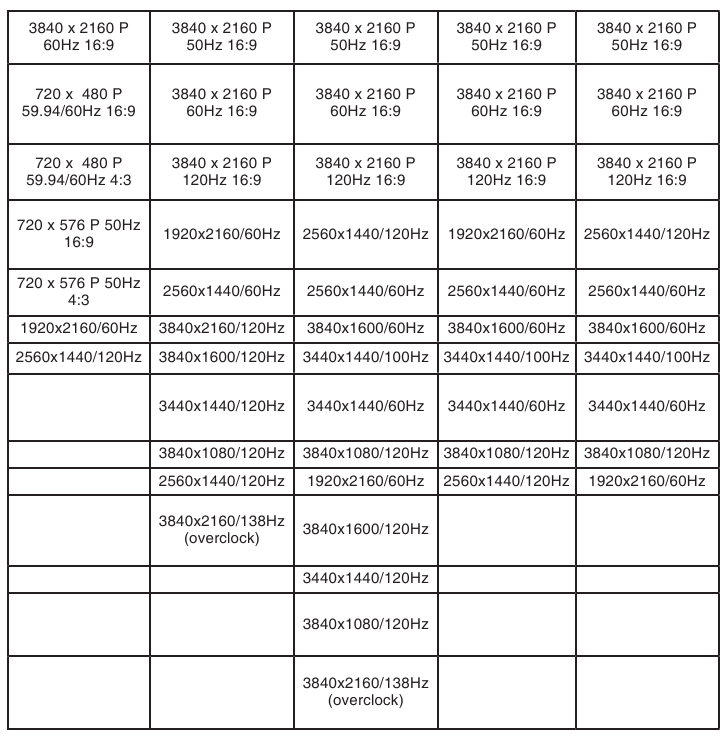

Supported Timing List - Table 2
* The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables.

Safety information

  • Before setting up the monitor, carefully read all the documentation that came with the package.
  • To prevent fire or shock hazard, never expose the monitor to rain or moisture.
  • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
  • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
  • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
  • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
  • Use the appropriate power plug which complies with your local power standard.
  • Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
  • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.
  • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
  • Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
  • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 ~ 240V AC.
  • The socket-outlet shall be installed near the equipment and shall be easily accessible
  • If you encounter technical problems with the monitor, contact a qualified servicer.
  • Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.
  • Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum).
  • If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.


Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
Stability Hazard.
The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions.
A product may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
ALWAYS use cabinets or stands or installation methods recommended by the manufacturer of the product set.
ALWAYS use furniture that can safely support the product.
ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
ALWAYS educate children about the dangers of climbing on furniture to reach the product or its controls.
ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled or grabbed.
NEVER place a product in an unstable location.
NEVER place the product on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.
NEVER place the product on cloth or other materials that may be located between the product and supporting furniture.
NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the product or furniture on which the product is placed.
If the existing product is going to be retained and relocated, the same considerations as above should be applied.

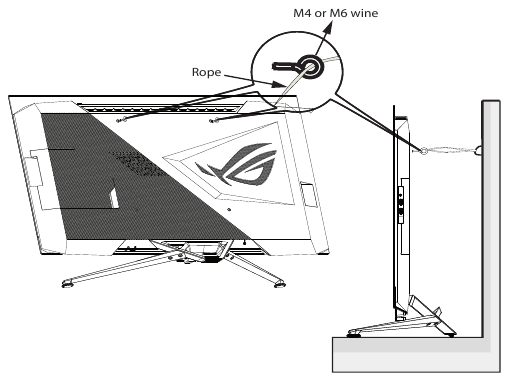

Prevent Tipping
When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling.
Prevent Tipping

warning

  • The design of the monitor may differ from what is shown in the figure.
  • Installing must be done by a qualified technician, and please contact your supplier for more information.
  • For the Models with net weight >=7kg. Please select the suitable way to Prevent Tipping.
  • For the models with VESA Mount, please use method, install the screws with ring to the VESA Mount hole, then tie the cord or chain to the wall. Otherwise, please use method to tie the cord or chain to the stand and then fix it to the wall.

Care & Cleaning

  • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
  • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
  • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

  • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
  • You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
  • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions used in this guide

Information to prevent injury to yourself when trying to complete a task.

Information to prevent damage to the components when trying to complete a task.

Information that you MUST follow to complete a task.
informationNOTE: Tips and additional information to aid in completing a task.

Where to find more information
Refer to the following sources for additional information and for product and software updates.

  1. ASUS websites
    The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com
  2. Optional documentation
    Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detail recycling information in different region.

Product information for EU energy label

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Asus ROG SWIFT OLED PG42UQ Manual

Advertisement

Need help?

Need help?

Do you have a question about the ROG SWIFT OLED PG42UQ and is the answer not in the manual?

Questions and answers

Table of Contents
