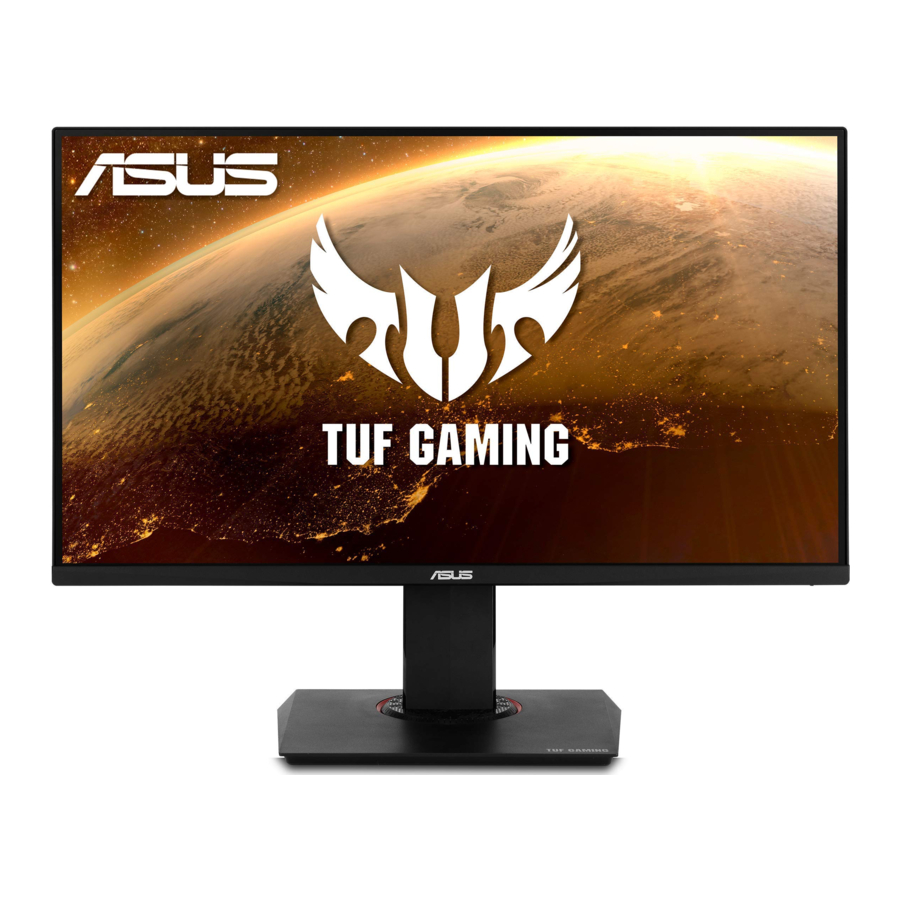

Asus VG289 Series, VG289Q Manual

Package contents

Check your package for the following items:

  • LCD Monitor
  • Quick Start Guide
  • Warranty Card
  • 1x Power Cord
  • 1x Adapter
  • 1x DisplayPort Cable (optional)
  • 1x HDMI Cable (optional)


If any of the above items is damaged or missing, contact your retailer immediately.

Assembling the monitor

To assemble the monitor:

warning NOTE:
While assembling the monitor arm/base, we recommend that you keep the monitor inside its EPS (Expanded Polystyrene) packaging.

  1. Align the screw hole on the arm with the bundled screw on the base. Then insert the base into the arm.
  2. Fix the base to the arm by fastening the bundled screw.
    Assembling the monitor

Connect cables

Rear of the LCD monitor
Connect cables - Rear of the LCD monitor

  1. DC-IN Port
  2. DisplayPort
  3. HDMI-1 Port
  4. HDMI-2 Port
  5. Earphone - out Port
  6. Kensington Lock

Monitor introduction

Using the Controls button

Use the control button on the bottom of the monitor to adjust the image settings.
Monitor introduction - Using the Controls button

  1. Power Indicator:
    • The color definition of the power indicator is as the below table.
Status Description
White ON
Amber Standby mode
OFF OFF
  1. Power Button:
    • Press this button to turn the monitor on/off.
  2. GameVisual:
    • • Press this hotkey to switch from eight video preset modes (Scenery Mode, Racing Mode, Cinema Mode, RTS/RPG Mode, FPS Mode, sRGB Mode, MOBA Mode and User Mode) with GameVisual™ Video Intelligence Technology.
  3. GamePlus Button:
    • GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games.
      To active GamePlus:
    • Press GamePlus Button to enter the GamePlus main menu.
    • Activate Crosshair, Timer or FPS Counter or Display Alignment function.
    • Move the button up/down to select and press to confirm the function needed. Press to go off, and exit.
    • Crosshair/Timer/FPS Counter is movable by pressing 5-way key.
GamePlus main menu GamePlus-Crosshair GamePlus-Timer
  1. Close Button:
    • Exit the OSD menu.
  2. (5-way) Button:
    • Turns on the OSD menu. Enacts the selected OSD menu item.
    • Increases/Decreases values or moves your selection up/down/left/right

Adjusting the monitor

  • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
  • Hold the stand to prevent the monitor from falling when you change its angle.
  • You can adjust the monitor's angle from +20˚ to -5˚ and it allows 62˚ swivel adjustment from either left or right. You can also adjust the monitor's height within 15cm.
    Adjusting the monitor

Detaching the arm/stand

(for VESA wall mount)

The detachable stand of this monitor is specially designed for VESA wall mount.

To detach the arm/stand

  1. Disconnect power and signal cables. Carefully put the monitor facedown on its EPS packaging.
  2. Remove the screws covers.
  3. Remove the four (4) screws securing the arm to the rear of the monitor.
  4. Detach the stand (arm and base) from the monitor.
    Detaching the arm/stand - To detach the arm/stand

warning NOTE:

  • The VESA wall mount kit ( 100 x 100 mm) is purchased separately.
  • Use only the UL Listed Wall Mount Bracket with minimum weight/load 28.8 kg (Screw size: M4 x 10 mm).

Outline dimension

Unit: mm [inch]
Outline dimension - Part 1
Outline dimension - Part 2

OSD (On-Screen Display) menu

How to reconfigure

OSD menu - How to reconfigure

  1. Press Central of 5-way to activate the OSD menu.
  2. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
  3. To select the highlighted item on the menu press the Center key.
  4. Press the and buttons to select the desired parameter.
  5. Press the Center key to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
  6. Press the to move left / right menu.

OSD Function Introduction

  1. GameVisual
    This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode.
    OSD Function Introduction - GameVisual
    • Scenery Mode: This is the best choice for scenery photo displaying with GameVisual™ Video Intelligence Technology.
    • Racing Mode: This is the best choice for racing game playing with GameVisual™ Video Intelligence Technology.
    • Cinema Mode: This is the best choice for movie watching with GameVisual™ Video Intelligence Technology.
      RTS/RPG Mode: This is the best choice for Real-Time Strategy(RTS)/ Role-Playing Game(RPG) playing with GameVisual™ Video Intelligence Technology.
    • FPS Mode: This is the best choice for First Person Shooter game playing with GameVisual™ Video Intelligence Technology.
    • sRGB Mode: This is the best choice for viewing photos and graphics from PCs.
    • MOBA Mode : This is the best choice for Multiplayer Online Battle Arena (MOBA) games playing with GameVisual™ Video intelligence Technology.
    • User Mode: More items are adjustable in the Color menu.

warning NOTE:

  • In the Racing Mode, the Saturation, Sharpness, and ASCR functions are not user-configurable.
  • In the sRGB, the Saturation, Skin Tone, Color Temp., Sharpness, Brightness, Contrast and ASCR functions are not user-configurable.
  • In the MOBA Mode, the Saturation, Sharpness and ASCR functions are not user-configurable.
  1. Blue Light Filter
    Adjust the energy level of blue light emitted from LED backlight.
    OSD Function Introduction - Blue Light Filter
    • Level 0: No change.
    • Level 1~4: The higher the level, the more blue light will be reduced.

warning NOTE:

  • When Blue Light Filter is activated, the default settings of Racing Mode will be automatically imported.
  • Between Level 1 to Level 3, the Brightness function is user-configurable.
  • Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable.

warning NOTE:
Please refer to the following to alleviate eye strains:

  • Users should take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 mins) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a single longer break.
  • To minimize eye strain and dryness in your eyes, users should rest the eye periodically by focusing on objects that are far away.
  • Eye exercises can help to reduces eye strain. Repeat these exercises often. If eye strain continues please consult a physician. Eye exercises:
    1. Repeating look up and down\
    2. Slowly roll your eyes
    3. Move your eyes diagonal.
  • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome).
  1. Color
    Select the image color you like from this function.
    OSD Function Introduction - Color
    • Brightness: The adjusting range is from 0 to 100.
    • Contrast: The adjusting range is from 0 to 100.
    • Saturation: The adjusting range is from 0 to 100.
    • Color Temp.: Contains three preset color modes (Cool, Normal, Warm) and User Mode.
    • Skin Tone: Contains three color modes including Reddish, Natural, and Yellowish.
      warning NOTE:
      In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-configurable; the adjusting range is from 0 ~ 100.
  2. Image
    You can adjust the image Sharpness, Trace Free, VividPixel, Adaptive-Sync/FreeSync, HDR, Shadow Boost, Aspect Control, ASCR from this main function.
    OSD Function Introduction - Image
    • Sharpness: Adjusts the picture sharpness. The adjusting range is from 0 to 100.
    • Trace Free: Speeds up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100.
    • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
    • Adaptive-Sync/FreeSync: It can allow a Adaptive-Sync/FreeSync supported graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.
    • HDR:High Dynamic Range. Contains two HDR modes (ASUS Cinema HDR and ASUS Gaming HDR).
    • Shadow Boost:Dark color enhancement adjust monitor gamma curve to enrich the dark tones in an image making dark scenes and objects much easier be found.
    • Aspect Control: Adjusts the aspect ratio to "Full", "4:3".
    • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function, ASCR is Disabled when ELMB is on.
      warning NOTE:
      Choose 4:3 to display the picture according to the original aspect ratio of the input source.
  3. Input Select
    Select the input source from HDMI-1, HDMI-2 or DisplayPort input signal.
    OSD Function Introduction - Input Select
  4. System Setup
    Adjusts the system configuration.
    OSD Function Introduction - System Setup
    • GameVisual Demo Mode: Activate the demo mode for the GameVisual function.
    • Volume: Adjusts the output volume level. ECO Mode: Activate the ecology mode for power saving.
    • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen.
    • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai and Indonesian.
    • Key Lock: Disable all key functions. Pressing the down button for more than five seconds to disable key lock function.
    • Information: Displays the monitor information.
    • More: Return the next page of System Setting.
    • Back: Return the previous page of System Setting.
    • Power Indicator: Turn the power LED indicator on/off.
    • Power Key Lock: To disable / enable power key.
    • All Reset: Selects "Yes" to revert all settings to the factory default mode.
  5. MyFavorite
    Load/Save all settings on the monitor.
    OSD Function Introduction - MyFavorite

Care & Cleaning

  • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
  • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
  • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

  • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
  • You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
  • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Specifications

Model VG289Q
Panel Size 28"W
Max. Resolution 3840x2160@60Hz
Brightness (Typ.) 350cd/m2
Intrinsic Contrast Ratio (Typ.) 1000:1
Viewing Angle (CR=10) 178°(V) /178°(H)
Display Colors 16.7 M(True 8bit)
Color Saturation DCI-P3 90% (TYP)
Response Time 5ms
Satellite Speaker 2W x 2 stereo
Earphone Output Yes
Sound from HDMI Yes
HDMI input Yes
DisplayPort input Yes
Power ON Consumption(Max.) < 65 W*
Chassis Colors Black
Power saving mode < 0.5W
Power off mode < 0.5W
Tilt -5° ~ +20°
Phys. Dimension (WxHxD) 639.5x555.2x233.4 mm
Box Dimension (WxHxD) 758 x 451x 206 mm
Net Weight (Esti.) 7.61 kg
Gross Weight (Esti.) 10.02 kg
Voltage Rating AC 100~240V(Built-in)

Troubleshooting (FAQ)

Problem Possible Solution
Power LED is not ON
  • Press the button to check if the monitor is in the ON mode.
  • Check if the power cord is properly connected to the monitor and the power outlet.
  • Check Power Indicator function in main menu OSD.
    Select "ON" to turn on power LED.
The power LED lights amber and there is no screen image
  • Check if the monitor and the computer are in the ON mode.
  • Make sure the signal cable is properly connected the monitor and the computer.
  • Inspect the signal cable and make sure none of the pins are bent.
  • Connect the computer with another available monitor to check if the computer is properly working.
Screen image is too light or dark
  • Adjust the Contrast and Brightness settings via OSD.
Screen image bounces or a wave pattern is present in the image
  • Make sure the signal cable is properly connected to the monitor and the computer.
  • Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)
  • Inspect the signal cable and make sure that none of the pins are bent.
  • Perform Reset via OSD.
  • Adjust the R/G/B color settings or select the Color Temperature via OSD.
No sound or sound is low
  • Adjust the volume settings of both your monitor and computer.
  • Make sure the computer sound card driver is properly installed and activated.

Supported Timing List

DP

Support Timing table Support Timing table
1 640x480@60Hz 21 1920x1080 P 50Hz
2 800x600@56Hz 22 1920x1080 P 59.94/60Hz
3 800x600@60Hz 23 720(1440)x480 I 59.94/60Hz
4 1024x768@60Hz 24 720(1440)x480 I 59.94/60Hz
5 1280x960@60Hz 25 720x480 P 59.94/60Hz
6 1280x1024@60Hz 26 3840x2160 P@23.98/24Hz
7 1280x720@60Hz 27 3840x2160 P@25Hz
8 1280x800@60Hz 28 3840x2160 P@29.97/30Hz
9 1440x900@60Hz 29 3840x2160 P@50Hz
10 1680x1050@60Hz 30 3840x2160 P@59.94/60Hz
11 1920x1080@60Hz 31 1920x1080 P 24Hz
12 3840x2160@60Hz 32 1440x480 P 59.94/60Hz
13 2560x1440@60Hz 33 1440x576 P 50Hz
14 640x480 P 59.94/60Hz 34 720(1440)x576 I 50Hz
15 720x480 P 59.94/60Hz 35 1920x1080 P@23.98/24Hz
16 1280x720 P 59.94/60Hz 36 1440x480 P 59.94/60Hz
17 720x576 P 50Hz 37 1440x576 P 50Hz
18 1280x720 P 50Hz 38 720(1440)x576 I 50Hz
19 1920x1080 I 59.94/60Hz
20 1920x1080 I 50Hz

HDMI

Support Timing table Support Timing table
1 640x480@60Hz 21 1920x1080 P 50Hz
2 800x600@56Hz 22 1920x1080 P 59.94/60Hz
3 800x600@60Hz 23 720(1440)x480 I 59.94/60Hz
4 1024x768@60Hz 24 720(1440)x480 I 59.94/60Hz
5 1280x960@60Hz 25 720x480 P 59.94/60Hz
6 1280x1024@60Hz 26 3840x2160 P@23.98/24Hz
7 1280x720@60Hz 27 3840x2160 P@25Hz
8 1280x800@60Hz 28 3840x2160 P@29.97/30Hz
9 1440x900@60Hz 29 3840x2160 P@50Hz
10 1680x1050@60Hz 30 3840x2160 P@59.94/60Hz
11 1920x1080@60Hz 31 1920x1080 P 24Hz
12 3840x2160@60Hz 32 1440x480 P 59.94/60Hz
13 2560x1440@60Hz 33 1440x576 P 50Hz
14 640x480 P 59.94/60Hz 34 720(1440)x576 I 50Hz
15 720x480 P 59.94/60Hz 35 1920x1080 P@23.98/24Hz
16 1280x720 P 59.94/60Hz 36 1440x480 P 59.94/60Hz
17 720x576 P 50Hz 37 1440x576 P 50Hz
18 1280x720 P 50Hz 38 720(1440)x576 I 50Hz
19 1920x1080 I 59.94/60Hz
20 1920x1080 I 50Hz

* The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

ASUS websites
The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com

Optional documentation
Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package.

Safety information

  • Before setting up the monitor, carefully read all the documentation that came with the package.
  • To prevent fire or shock hazard, never expose the monitor to rain or moisture.
  • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
  • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
  • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
  • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
  • Use the appropriate power plug which complies with your local power standard.
  • Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
  • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.
  • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
  • Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
  • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 ~ 240V AC.
  • The socket-outlet shall be installed near the equipment and shall be easily accessible
  • If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.
  • Provide an earthing connection before the mains plug is connected to the mains. And, when disconnecting the earthing connection, be sure to disconnect after pulling out the mains plug from the mains.


Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.

Conventions used in this guide


WARNING: Information to prevent injury to yourself when trying to complete a task.


CAUTION: Information to prevent damage to the components when trying to complete a task.


IMPORTANT: Information that you MUST follow to complete a task.

warning NOTE: Tips and additional information to aid in completing a task.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Asus VG289 Series, VG289Q Manual

Advertisement

Need help?

Need help?

Do you have a question about the VG289 Series and is the answer not in the manual?

Questions and answers

Table of Contents
