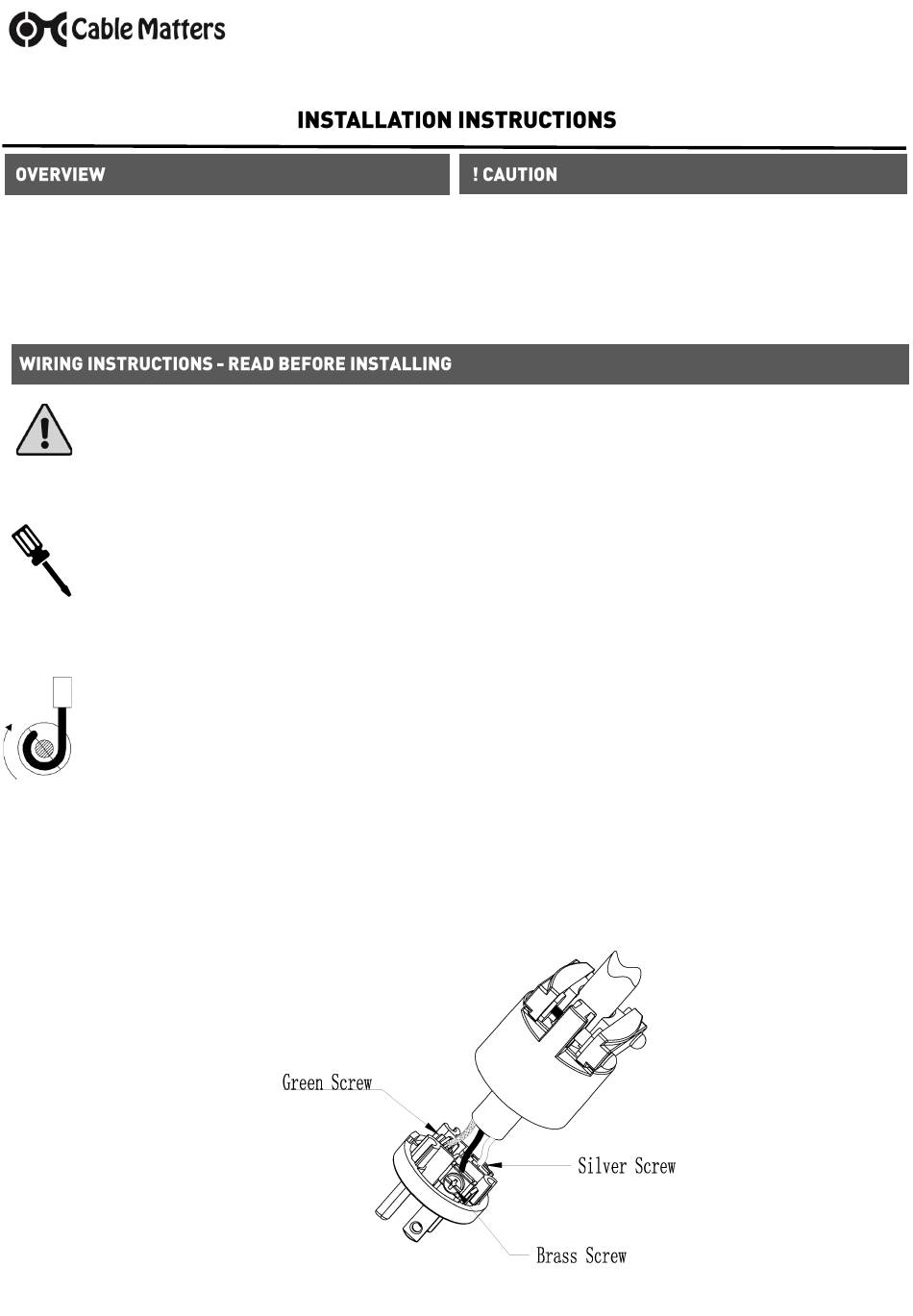

cable matters 400054 Installation Instructions

The Cable Matters 15A/125V 2-Pole / 3-Wire
Replacement Plug terminates a 14AWG cord.
Replace broken appliance cord plugs or create a
custom-length cord.
1) Turn off the power of any appliance before replacing the plug!
2) Carefully remove the existing plug.
3) Strip back about 1 inch of the cord jacket from the existing cord.
4) Strip back about 0.4 inches of the wire insulation from each conductor and remove any filler.
5) Remove 1 screw from the strain-relief bracket. Loosen the screw on the other side and
rotate the bracket to the outside. Requires a Phillips head screwdriver (not included).
6) Side the cord through the strain-relief bracket and loosely re-attach the screws to prevent the
housing from sliding down the cord.
7) Green screw is for the ground wire, brass is for the black/hot wire, and silver is for the white/
neutral wire.
8) Remove each screw and clamp, one at a time, starting with the green/ground screw.
9) Tightly twist the strands into a hook and coil it around the screw. Reconnect the screw and
clamp. Check that the insulation is not touching the terminal.
10) Tighten the terminals screws and check that all wires are properly separated. Tug on the
wires to check that they are firmly seated.
11) Line up the plug with the housing and tighten the screws. Tighten the screws on the SR
bracket. NOTE: DO NOT over-tighten the screws!
14 AWG STRANDED WIRE ONLY
15A/125V 2-P / 3-W
OLE
Ground
www.cablematters.com
R AC P
IRE EPLACEMENT
Installation by a qualified electrician is recom-
•
mended
Rated for indoor use only in a dry location
•
Use only 14AWG stranded copper cords
•
White/Neutral
Black/Hot
Model 400054
LUG
