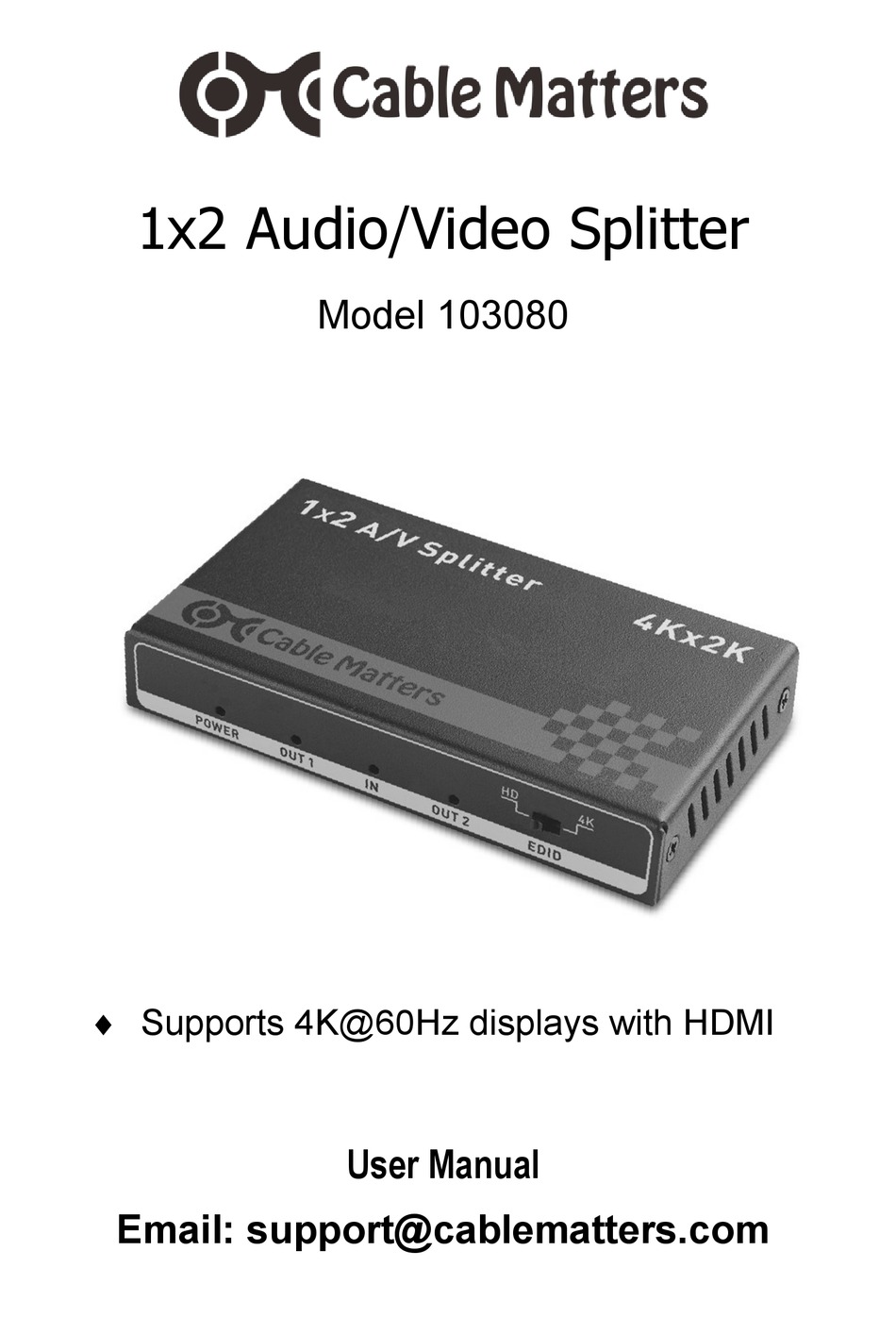

- Page 1 1x2 Audio/Video Splitter Model 103080 Supports 4K@60Hz displays with HDMI User Manual Email: support@cablematters.com...
-
Page 2: Table Of Contents
1x2 Audio/Video Splitter Table of Contents 1. INTRODUCTION ..............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents ................2 2.2 Product Description 2.3 Product Features 3. CONNECTION INSTRUCTIONS ..........3 3.1 Installation Checklist 3.2 Front Panel Diagram 3.3 EDID Settings ................. -
Page 3: Introduction .....................................................................1
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trade- marks are the property of their respective owners. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and/or other countries. -
Page 4: Product Overview
Note: Two HDMI cables are included. Additional cables are sold separately. 2.2 Product Description The Cable Matters® 1x2 Audio/Video Splitter provides simultaneous viewing for 2 monitors, projectors, or TVs. View identical images from a set-top box, Blu-ray player, gaming console or computer with HDMI. -
Page 5: Connection Instructions ............................................ 3
1x2 Audio/Video Splitter 3. Connection Instructions 3.1 Installation Checklist Please review the following steps before installing the A/V Splitter: Test the Splitter and cabling before installing in a permanent location Power OFF all the equipment before connecting the Splitter and cables ... -
Page 6: Rear Panel Connections
1x2 Audio/Video Splitter 3.3 EDID Settings HD: This is the default setting for the Splitter Video output is set to 1080p @ 60Hz Audio is set LPCM 2CH stereo 4K: This is the programmable setting for the Splitter Video output is set to the EDID of Video OUT 1 display ... -
Page 7: Troubleshooting Tips
1x2 Audio/Video Splitter 3.5 Connection Instructions 1) Power down all the source equipment and output displays 2) Connect an HDMI cable from the video source (TV) to the VIDEO IN 3) Connect HDMI cables from the Splitter to both displays 4) Set the EDID switch to HD if using 1080p as a video resolution 5) Set the EDID switch to 4K if connecting 4K displays or another video resolution other than 1080. -
Page 8: Warranty And Support
Note: Specifications are subject to change without notice 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
