1) Connect MiniDP CABLE to the Mini DisplayPort of the COMPUTER and DISPLAY
2)
Select the Mini DisplayPort input setting from the menu of the connected DISPLAY
3)
Select a compatible VIDEO resolution and refresh rate from the computer
4) Adjust the computer AUDIO output settings for Mini DisplayPort (if equipped)
Connection Notes
•
WINDOWS & MAC COMPATIBLE with Mini DisplayPort ports
•
THUNDERBOLT 2 COMPATIBLE ONLY from a TBT 2 computer port to a Mini DisplayPort display
•
NOT THUNDERBOLT COMPATIBLE from a TBT 2 computer to a TBT 2 device
•
DUAL MONITOR SETUP to connect up to 2 monitors (1 adapter per monitor) with AMD Eyefinity
•
VIDEO RESOLUTION up to 3840 x 2160 with compatible equipment
•
AUDIO SUPPORT for LCPM, DTS, and Digital Dolby with compatible displays
•
DisplayPort 1.2 feature support
•
MACS BEFORE 2010 do not output audio over Mini DisplayPort
•
CHECK DRIVER UPDATE availability for any OS or video graphics card updates for MiniDP
•
HDCP SUPPORT for viewing copy protected video with HDCP compliant equipment
Contact support@cablematters.com for questions

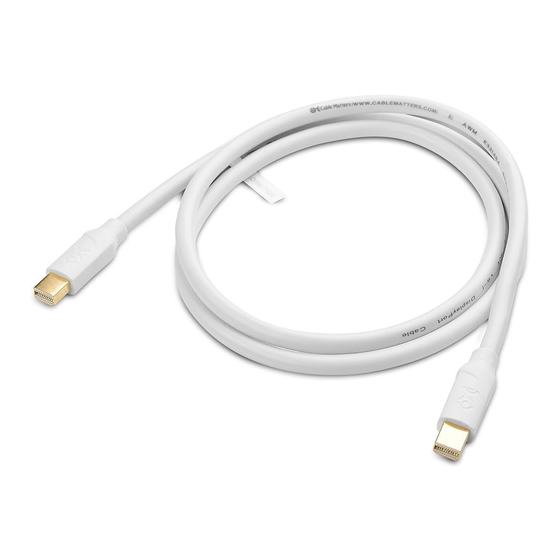

Mini DisplayPort™ Cable
Model 101008
Advertisement
Table of Contents
Related Manuals for cable matters Mini DisplayPort
Summary of Contents for cable matters Mini DisplayPort
- Page 1 • WINDOWS & MAC COMPATIBLE with Mini DisplayPort ports • THUNDERBOLT 2 COMPATIBLE ONLY from a TBT 2 computer port to a Mini DisplayPort display • NOT THUNDERBOLT COMPATIBLE from a TBT 2 computer to a TBT 2 device •...
- Page 2 IDEO ETTINGS IN INDOWS Connect the cable to both ends Select the Mini DP input from the connected display menu Search for Display Settings in Windows Select to Duplicate or Extend the display (Note: Click and drag the program to the display in Extended Mode) Click Apply to save the settings Select Display Adapter Properties...
- Page 3 6) Adjust the volume at the connected display Check the technical specifications of your display to verify if it supports audio input over Mini DisplayPort, requires a separate audio cable, or does not support audio at all Contact support@cablematters.com for questions...
-
Page 4: Troubleshooting Tips
Contact us at wholesale@cablematters.com for large volume discount pricing. Warranty Information This product is backed by a limited lifetime warranty. In addition, Cable Matters warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replaced with equivalent products at our discretion. The warranty covers parts and labor costs only.
