cable matters JAS15P+JAS15R Installation Instructions

15A/125V 2-Pole/3-Wire Replacement Plug and Connector Set
Important Notes
Installation by a professional is recommended
•
Read these directions carefully before using this
•
product
Disconnect power before connecting replacement
•
plugs
For use in indoor dry environments only
•
Thoroughly inspect the connectors before using.
•
Do not use if parts appear loose or damaged
For use with 16AWG or 14AWG stranded wire only
•
Installation Instructions
1) Carefully remove the existing plug from the de-
vice
2) Strip back about 1 inch of the cable jacket from
the existing cable, and strip back about 3/8" of
wire insulation from each conductor. Twist the
exposed strands.
3) Open the replacement connector by loosening
the screws and separating the connector body
and shell.
4) Route the cord through the strain relief con-
nector and into the shell. NOTE: You may need
to loosen the strain relief screws to achieve a
good fit.
5) Install each conductor into the correct terminal
pocket: GREEN wire to GREEN terminal,
WHITE wire to SILVER terminal, and BLACK
wire to BRASS terminal.
6) Tighten the terminal screws.
7) Re-assemble the plug connector and tighten
the connector screws and strain relief screws.
Technical Specifications
P/N: 400054_400067
•
Model No.: JAS15P+JAS15R
•
Electrical rating: 125V AC / 15A
•
Socket type: NEMA 5-15R / NEMA 5-15P plugs / 3-pole
•
connector with U-ground
Grade: For indoor use only
•
Cord compatibility: 16AWG / 14AWG SJT/ST/SE/SJ/SJE
•
copper wire
Compliance: UL Listed
•
Dimensions
•
5-15P: Diameter: 38mm / Length: 64mm
5-15R: Diameter: 38.5mm / Length: 66.5mm
Warranty: One year limited warranty
•
Installation Instructions
Cable Matters offers lifetime technical support as an integral part
of our commitment to provide industry leading solutions. Email
us with any questions at support@cablematters.com.
Warranty Information
This product is backed by a one year limited warranty. Cable Matters
warrants its products against defects in materials and workmanship for
the periods noted, following the initial date of purchase. During this peri-
od, the products may be returned for repair or replaced with equivalent
products at our discretion. The warranty covers parts and labor costs
only. Cable Matters does not warrant its products from defects or dam-
ages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall Cable Matters Inc. (including their officers, directors,
employees or agents) be liable for any damages (whether direct or indi-
rect, special, punitive, incidental, consequential, or otherwise), loss of
profits, loss of business, or any pecuniary loss, arising out of, or related
to the use of this product exceeding the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or con-
sequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Cable Matters
Inc. All rights reserved. All other trademarks are the property of their
respective owners.

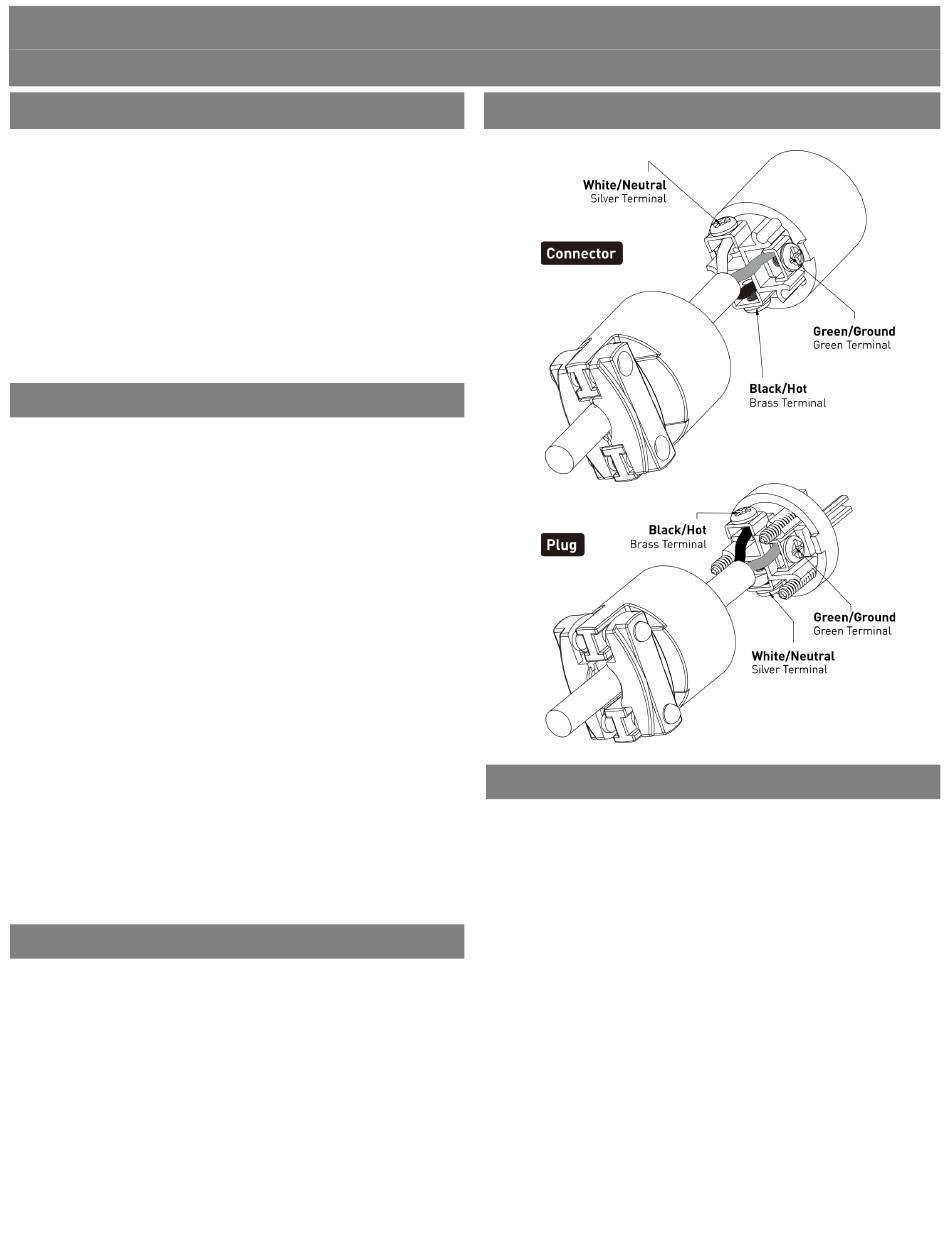

Product Diagram
