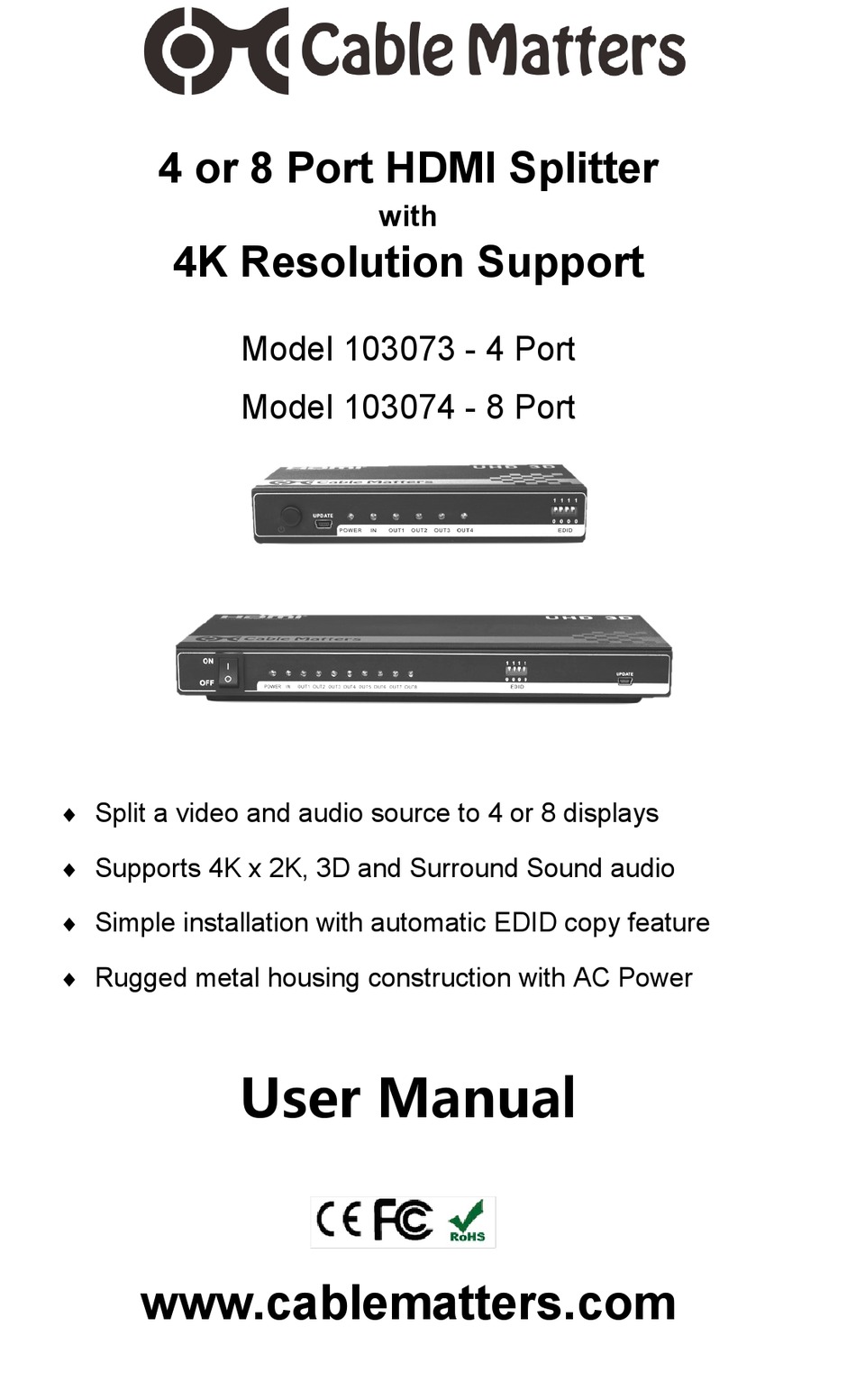

4 or 8 Port HDMI Splitter
4K Resolution Support
Split a video and audio source to 4 or 8 displays
Supports 4K x 2K, 3D and Surround Sound audio
Simple installation with automatic EDID copy feature
Rugged metal housing construction with AC Power
www.cablematters.com
with
Model 103073 - 4 Port
Model 103074 - 8 Port
User Manual
Advertisement
Table of Contents
Related Manuals for cable matters 103073
Summary of Contents for cable matters 103073
- Page 1 4 or 8 Port HDMI Splitter with 4K Resolution Support Model 103073 - 4 Port Model 103074 - 8 Port Split a video and audio source to 4 or 8 displays Supports 4K x 2K, 3D and Surround Sound audio ...
-
Page 2: Table Of Contents
4 or 8 Port HDMI Splitter with 4K Support Table of Contents 1. INTRODUCTION……………………………………...1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW……………………………………..2 2.1 Package Contents 2.2 Product Description 2.3 Product Features…………………………………………….3 3. CONNECTION INSTRUCTIONS 3.1 Installation Checklist 3.2 Front Panel Connections …………………………………..4 3.3 EDID Settings 3.4 Rear Panel Connections…………………………..……….5... -
Page 3: Introduction
Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cable Matters, or an endorsement of the product to which this manual applies by the third-party company in question. Regardless of any... -
Page 4: Product Overview
Two HDMI cables are included. Additional cables are sold separately. 2.2 Product Description The Cable Matters® 4 Port HDMI Splitter provides simultaneous viewing for up to 4 monitors, projectors, or TVs in separate locations from a set-top box, Blu-Ray player, gaming console or computer. -
Page 5: Product Features
4 or 8 Port HDMI Splitter with 4K Support 2.3 Product Features Connect a Set-top box, Blu-Ray player, gaming console or other video source to 4 or 8 HDTVs, monitors, or projectors up to 50 feet Intelligent HDMI Splitter can auto detect source video and auto settings ... -
Page 6: Front Panel Connections
4 or 8 Port HDMI Splitter with 4K Support 3.2 Front Panel Connections : Power saving switch turns off unit when not in use Model 103074 has a different front panel with 8 LED’s : Reserved for future firmware update PDATE : Green LED lights when the ON button is depressed OWER... -
Page 7: Rear Panel Connections
4 or 8 Port HDMI Splitter with 4K Support 3.4 Rear Panel Connections HDMI OUT1….4….8: Connect the destination displays to these ports HDMI INPUT: Connect the video source to this port DC 5V IN: Plug in the AC wall adapter to this port 3.5 Connection Instructions Connect the Splitter AC power adapter to the unit and to an electrical outlet Power down all the source equipment and output displays... -
Page 8: Video Resolution And Audio Settings In Windows
4 or 8 Port HDMI Splitter with 4K Support 3.6 Video Resolution and Audio Settings with a Mac computer Video Settings 1. Open the Apple Menu 2. Select System Preferences 3. Click the Displays icon 4. Click the Arrangement tab 5. -
Page 9: Video Resolution And Audio Settings In Mac
4 or 8 Port HDMI Splitter with 4K Support 3.7 Video Resolution and Audio Settings with a Windows computer Video Settings 1. Right-click on the desktop and Screen resolution 2. Select Duplicate or Extend 3. Click on Advanced settings to change the refresh rate Sound Settings Confirm the sound output from the... -
Page 10: Troubleshooting Notes
4 or 8 Port HDMI Splitter with 4K Support 3.8 Troubleshooting Notes Verify that the Splitter and all connected equipment have power. The green power LED indicator should be lit on the Splitter. Verify that all cables are connected to the correct input and output ports. ... -
Page 11: Technical Specifications
HDCP 1.4 protocol compliant Splitter Dimensions Model 103073 (L x W x H) / Weight 5.7 x 2.8 x 0.99 Inches / 10.6 Ounces Model 103074 (L x W x H) / Weight 9.8 x 4.6 x 1.3 Inches / 25.4 Ounces... -
Page 12: Warranty And Support
4 or 8 Port HDMI Splitter with 4K Support 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our com- mitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
