INSTALLATION INSTRUCTIONS
REAR BUMPER GUARD FOR JEEP GRAND CHEROKEE 05-10
PARTS LIST:
(1) Rear bumper guard
(2) Frame brackets (one driver, one passenger side)
(2) 1/2" x 1-1/2 bolt with rod extension
Mounting hardware per bracket includes (1) 1/2"
bolt with rod extension, (1) 1/2" flat wsher and (1)
1/2" locknut.
TEL 1-866-XANATOS
PARTS#: 8D080616SS / 8D080616A
READ INSTRUCTIONS BEFORE INSTALLING PRODUCT
REAR BUMPER GUARD FOR JEEP GRAND CHEROKEE 05-09
(4) 1/2" x 1-1/2" bolts
(6) 1/2" locknuts
(10) 1/2" flat washers

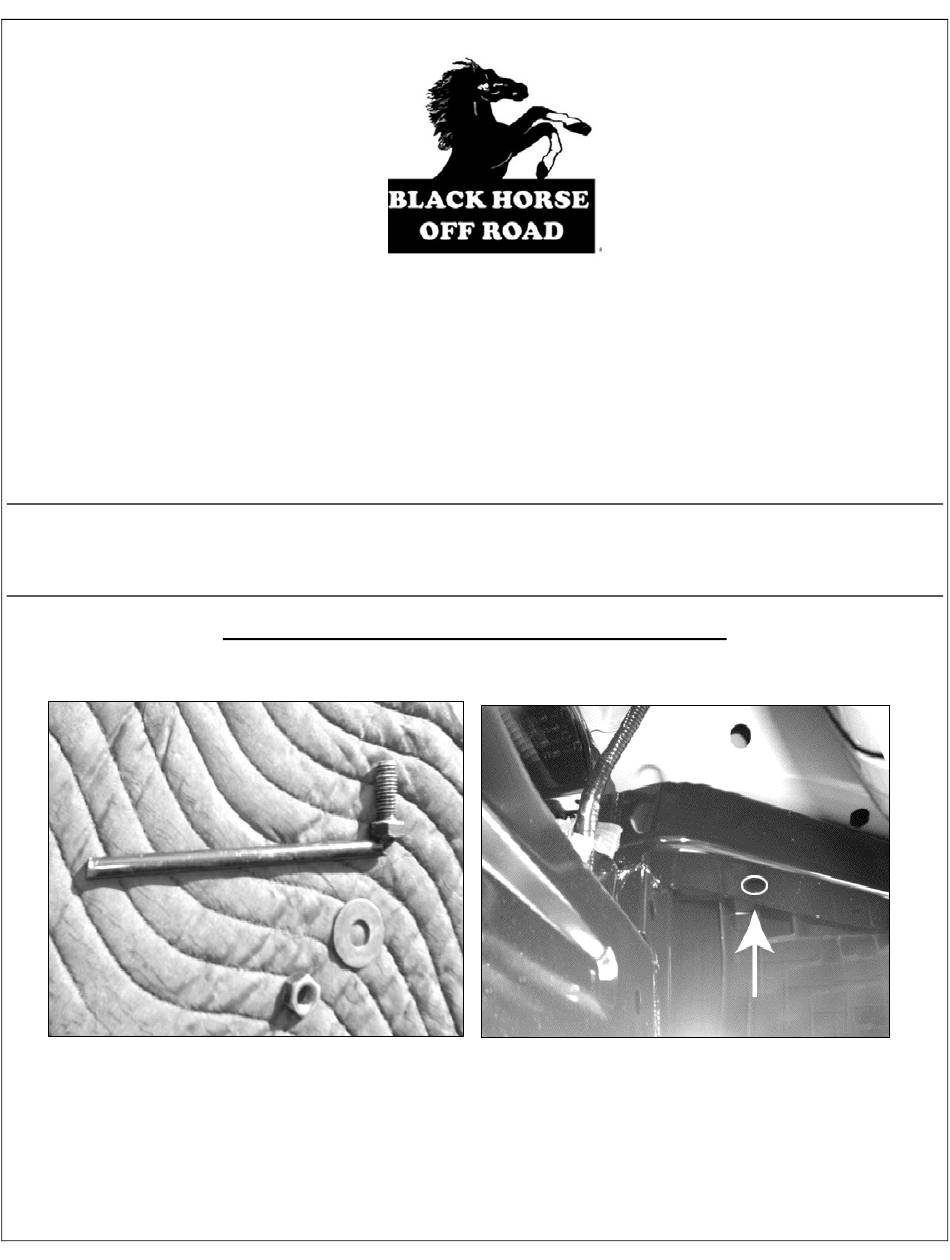

Locate (1) hole on each side of the square bumper
crossmember. The holes are located between the two
bumper brackets that are part of the formed frame
rails. Passenger side shown
Page 1 of 2
