Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Check and retighten wheels at 50 miles and again at 500 miles. Periodically check all hardware for tightness.
KIT CONTENTS:
1– Xpedition Bed Rack Basket
2– Xpedition Bed Rack Sides
2– Xpedition Bed Rack Brace
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs
Thank you for choosing Rough Country for all your vehicle needs.
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
Polaris Xpedition 4 Door Spare Tire Rack
TOOLS NEEDED:
5mm Allen Wrench
13mm Wrench or Socket
16mm Wrench or Socket
Dead Blow Hammer
Class 8.8
Class 10.9
5ft/lbs
9ft/lbs
18ft/lbs
23ft/lbs
32ft/lbs
45ft/lbs
55ft/lbs
75ft/lbs
85ft/lbs
120ft/lbs
130ft/lbs
165ft/lbs
170ft/lbs
240ft/lbs
921931970
HARDWARE INCLUDED:
1– Hardware bag
Advertisement
Related Manuals for rough country 93197
Summary of Contents for rough country 93197

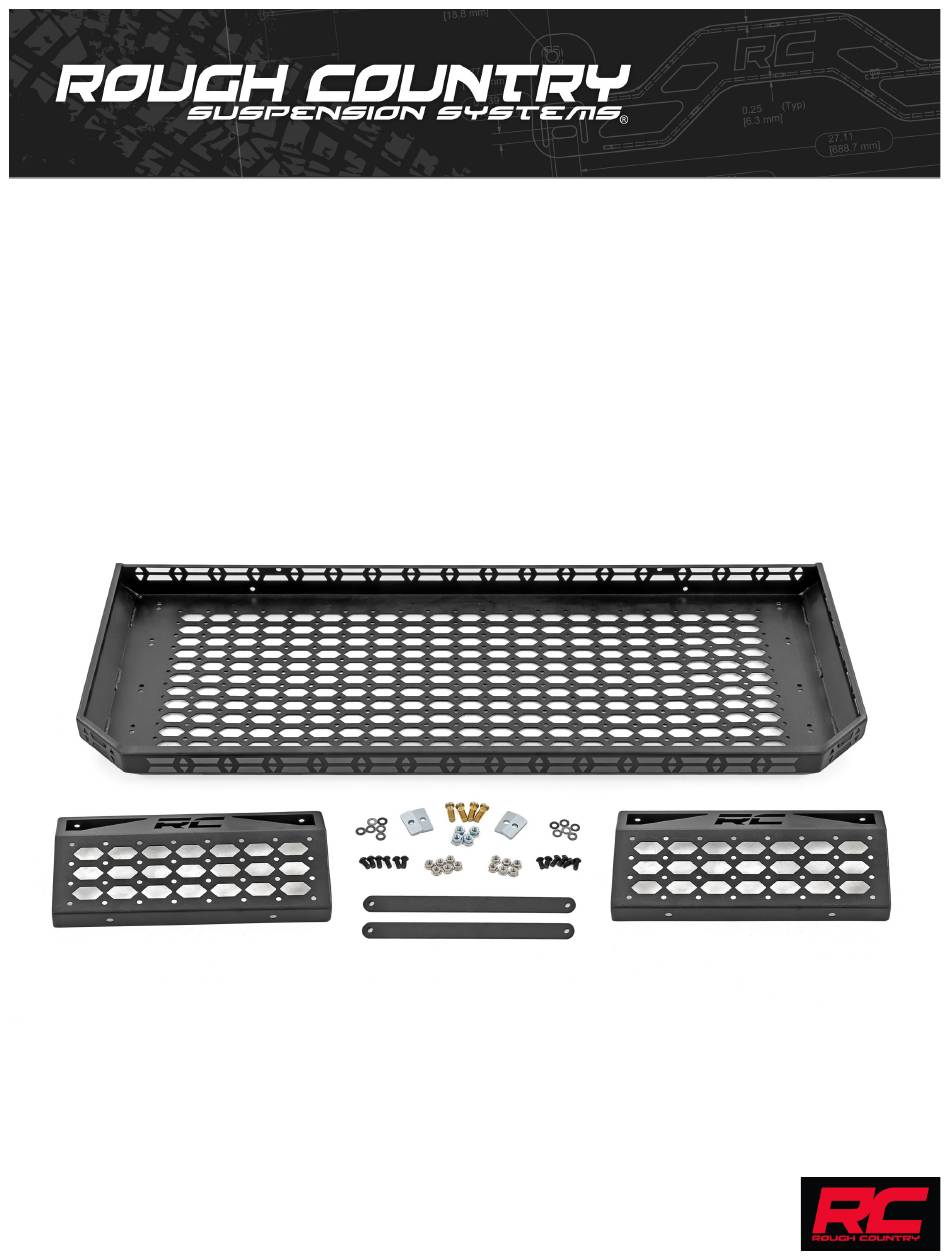

- Page 1 921931970 Polaris Xpedition 4 Door Spare Tire Rack Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
