Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.
If factory equipped, winch bumper may interfere with parking, proximity and external cruise control sensors.
Only fits Non XD Models!
KIT CONTENTS:
EXO Front Bumper w/ Light Mount x1
2" Flush Mount LED Cubes x2
Single Row 20" LED x1
Drivers Side Frame Bracket x1
Passengers Side Frame Bracket x1
D-rings x2
NISSAN 2016-20 Titan Non XD EXO Bumper
Thank you for choosing Rough Country for all your vehicle needs.
Rough Country LED lights are for off-road use only.
18mm wrench or socket
19mm wrench and socket
TOOLS NEEDED:
12mm Socket
14mm Socket
Ratchet
*82000BAG*
82000BAG
KIT BAGS
82000BAG1:
10mm-1.25 x 35mm Hex Bolts x6
10mm Flat Washers x6
10MM Lock Washer x6
12mm-1.25 x 35mm Hex Bolts x2
1/2" Flat Washer x2
1/2" Lock Washer x2
10761BAG3:
12mm-1.75 x 120mm Hex Bolts x2
1/2" Flat Washer x2
1/2" Lock Washer x2
12mm-1.75 x 35mm Hex Bolts x4
12mm Flat Washers x4
12mm Flange Lock Nuts x4
921820000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for rough country 82000BAG1
Summary of Contents for rough country 82000BAG1

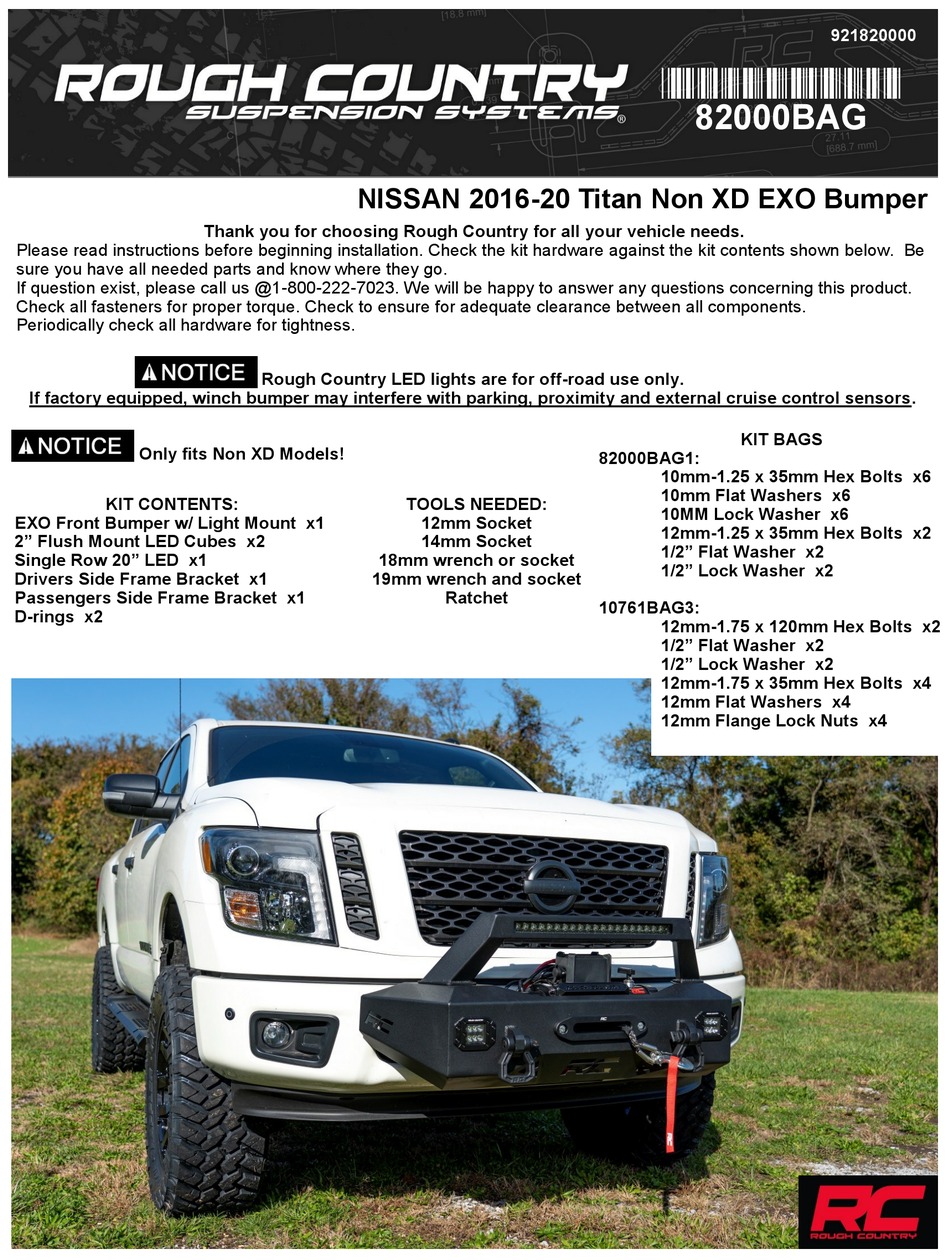

- Page 1 82000BAG NISSAN 2016-20 Titan Non XD EXO Bumper Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 INSTALLATION INSTRUCTONS 1. Locate the (6) skid plate bolts in the skid plate using a 12mm socket. See Photo 1. 2. Remove the front trim panel from the bumper by releasing the 4 clips. . See Photo 2. Photo 1 Photo 2 Locate the skid plate bolts.
- Page 3 10. Driver and Passenger side brackets shown installed in Photo 7. 11. Install the Exo Bumper onto the brackets installed on the bumper. See Photo 8. Photo 7 Photo 8 DIY Bumper brackets shown. Install the EXO bumper. 12. Align the holes in the side of the brackets and secure the EXO bumper using (1) 1/2” flat washer, (1) 1/2” lock wash- er and (1) 12mm-1.75 x 120mm hex head bolt into the.
- Page 4 EXO bumper shown installed. By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable, State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold.
- Page 5 Torque Specs: Size Grade 5 Grade 8 Size Class 8.8 Class 10.9 5/16” 15 ft/lbs 20ft/lbs 5ft/lbs 9ft/lbs 3/8” 30 ft/lbs 35ft/lbs 18ft/lbs 23ft/lbs 7/16” 45 ft/lbs 60ft/lbs 10MM 32ft/lbs 45ft/lbs 1/2” 65 ft/lbs 90ft/lbs 12MM 55ft/lbs 75ft/lbs 9/16” 95 ft/lbs 130ft/lbs 14MM 85ft/lbs...
