Beckhoff AX5203-0000 Servo Drive Limited Availability New From Surplus Stock Open Web Page https://www.artisantg.com/79604-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 2
(1.5 A – 40 A) Please read this document carefully before installing and commissioning the servo drive. Version : 3.9 Date: 2012-09-28 BECKHOFF Language: English Article no.: TDmlAX-5000-0000-0200 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 4
BECKHOFF Drive Technology 1 Foreword Chapter Page Table of Contents - AX5000 Startup Foreword ....................... 5 Notes on the documentation ................5 Disclaimer ......................5 Trademarks ......................5 Patent Pending ....................5 Copyright ......................6 Documentation issue status ................6 Appropriate use ....................
Page 5
Control cabinet ....................41 Motors and cables at servo drives up to 25A ........... 41 Appendix ......................42 Support and Service ..................42 8.1.1 Beckhoff's branch offices and representatives ..........42 8.1.2 Beckhoff Headquarters..................42 8.1.3 Beckhoff Support ....................42 8.1.4...
Page 6
“AX5000 User manual” on the enclosed CD or CAUTION can be downloaded from our website at www.beckhoff.com. If you do not have access to the “AX5000 User manual” please refrain from working on the AX5000 and notify our support division.
Page 8
BECKHOFF Drive Technology 1 Foreword General revision on account of the UL-Listing of the AX5000. Chapter-Update: 1.1; 4.4.2.1; 4.4.2.2; 4.4.3.1; 4.4.3.2; 5.2.1; 5.2.1.1 General routine corrections First edition only german Appropriate use The servo drives of the AX5000 series are exclusively designed for torque, speed and position control of suitable asynchronous and synchronous three-phase current motors.
Page 10
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. 2.1.3 Description of safety symbols The following safety symbols with a adjoining safety advise are used in this manual.
Page 11
DC- terminals (X02) must have fallen below 50 V. Opening the device (with the exception of expansion card slots) invalidates all warranty and liability claims against Beckhoff Automation GmbH. • Negligent, improper handling of the servo drive and bypassing of the safety devices can lead to personal injury or death through electric shock.
Page 12
BECKHOFF Drive Technology 2 Safety Hazard to individuals! • Carefully read this manual before using the servo drive thoroughly, paying particular attention to the safety instructions. In the event of any CAUTION uncertainties please notify your sales office immediately and refrain from working on the servo drive.
Page 13
BECKHOFF 3 Guidelines and Standards Drive Technology Guidelines and Standards CE conformity The servo drives of the AX5000 series comply with the • EC Low-Voltage Directive, 2006/95/EC Applied harmonised standards: 61800-5-1 Hazard to individuals! Servo drives are not covered by the EC Machinery Directive. Operation...
Page 14
BECKHOFF Drive Technology 3 Guidelines and Standards UL-Listing The following servo drives from the AX5000 series have a UL-Listing and must bear the UL symbol AX5000 with UL-Listing AX5101, AX5103, AX5106, AX5112, AX5201, AX5203 und AX5206 on the name plate. If you wish to operate an AX5000 in an economic area that requires a UL-Listing, please check that there is a UL symbol on the name plate.
Page 15
BECKHOFF 3 Guidelines and Standards Drive Technology AX5112! When protected by RK5 class fuses: Rated 20 A, min. 480 V 3.3.3 UL-specific notes Use in a Pollution Degree 2 environment Use 75 °C Copper Conductors min. Control Board rating = 24 V Drive intended for use over a range of motor sizes.
Page 16
BECKHOFF Drive Technology 4 Product description Product description The servo drives of the AX5000 series are available as single- or multi-channel versions and are optimised in terms of function and cost-effectiveness. In conjunction with EtherCAT, the real-time Ethernet system, the integrated control technology offers minimum cycle times and supports fast, highly dynamic positioning tasks.
Page 17
Drive Technology 4.2.2 Accessories A comprehensive list of accessories can be found in the complete Beckhoff catalogue or on our website at www.beckhoff.com. Accessories with UL-Listing! If you wish to operate an AX5000 in an economic area that requires a UL- Listing, please make sure that the accessories also have a UL-Listing.
Page 18
BECKHOFF Drive Technology 4 Product description Technical data UL-Listing! It is essential to observe chapter 3.3 if you wish to operate an AX5000 in an economic area that requires a UL-Listing. 4.4.1 Permissible ambient and operating conditions Ambient / operating conditions...
Page 19
BECKHOFF 4 Product description Drive Technology Electrical data AX5101 AX5103 AX5106 Rated apparent power S1 mode (selection) 120 V 0.3 kVA 0.6 kVA 1.2 kVA 230 V 0.6 kVA 1.2 kVA 2.4 kVA Power dissipation 35 W 50 W 85 W Max.
Page 20
BECKHOFF Drive Technology 4 Product description 4.4.3 Electrical data - two-channel servo drive (AX52xx) 4.4.3.1 Single-phase connection Electrical data AX5201 AX5203 AX5206 Rated output current / channel 1.5 A Minimum rated channel current at full 0.35 A current resolution Maximum rated channel current at full 4.5 A...
Page 21
BECKHOFF 4 Product description Drive Technology Electrical data AX5201 AX5203 AX5206 Max. DC link voltage 890 V Rated apparent power S1 mode (selection) 120 V 0.6 kVA 1.2 kVA 2.5 kVA 230 V 1.2 kVA 2.4 kVA 4.8 kVA 400 V 2.1 kVA...
Page 22

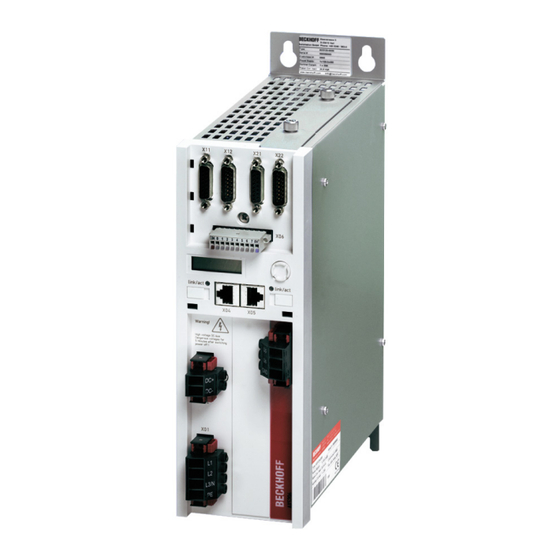

BECKHOFF Drive Technology 4 Product description General overview (AX5101 – AX5112 and AX520x) The servo drive shown below is a two-channel device. Components that are only available for the second channel are identified in the item description. Item description: No Designation X11 –...
Page 23
BECKHOFF 4 Product description Drive Technology General overview (AX5118, AX5125 und AX5140) The servo drive illustrated below is an AX5140; the devices with 18 A or 25 A are structurally similar apart from pos. 11 "X07" (external brake resistor). Item description:...
Page 24
BECKHOFF Drive Technology 4 Product description Overview of connectors/terminal points 4.7.1 X01 - wide voltage input Connection Terminal point 3-phase 1-phase Phase L1 Phase L1 Phase L2 not used L3/ N Phase L3 Neutral conductor Protective Protective conductor conductor 4.7.2...
Page 25
BECKHOFF 4 Product description Drive Technology 4.7.5 X04, X05 - EtherCAT connection Terminal point Connection X04 (IN) incoming EtherCAT line X05 (OUT) outgoing EtherCAT line 4.7.6 X06 – Digital I/Os Destruction of the AX5000! This connector is not designed for external power supply. It is supplied via the 24 V supply (U ) of connector X03.
Page 26
BECKHOFF Drive Technology 4 Product description 4.7.7 X11 (channel A) , X21 (channel B) - feedback, high-resolution EnDAT / BiSS Hiperface Sin / Cos 1Vpp SIN + SIN + SIN + n.c. GND_5 V GND_9 V GND_5 V GND_5 V...
Page 27
BECKHOFF 4 Product description Drive Technology 4.7.9 X13 (channel A) , X23 (channel B) - motor connection (power) (AX5101 - AX5125 und AX520x) Terminal point Connection Motor connection U Motor connection V Motor connection W Protective conductor Shroud Screen 4.7.10...
Page 28
BECKHOFF Drive Technology 4 Product description AX5000-xxxx-0200 Terminal point Connection Output current OCT – and temperature OCT + and temperature Signal pair screen Brake GND Brake (U 2.2 A max. Output current The specified output current is the maximum value. The actual value depends on your current configuration.
Page 29
BECKHOFF 4 Product description Drive Technology Dimensions The specified measurements relate to the actual device, without connectors and cables. The fitting dimensions for control cabinet installation can be found in section "Mechanical installation Installation examples". AX5118, AX5125 and AX5140 AX5101-AX5112 / AX5201-AX5206 All dimensions are in mm Version : 3.9...
Page 30
BECKHOFF Drive Technology 4 Product description AX5000 AX5000 without AX bridge with AX bridge All dimensions are in mm AX5000 Version : 3.9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 31
BECKHOFF 5 Installation Drive Technology Installation Caution – Risk of injury! • The servo drives may only be installed by trained, qualified personnel. The qualified personnel must know and comply with the national accident WARNING prevention regulations. • Safety boots must be worn.
Page 32
BECKHOFF Drive Technology 5 Installation 5.1.1.1 Installation example - AX5101-AX5112 and AX5201-AX5206 5.1.1.2 Installation example - AX5118, AX5125 and AX5140 AX5000 Version : 3.9 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 33
BECKHOFF 5 Installation Drive Technology Electrical installation UL-Listing! It is essential to observe chapter 3.3 if you wish to operate an AX5000 in an economic area that requires a UL-Listing. Serious risk of injury through electric shock! Due to the DC link capacitors dangerous voltage may persist at the DC link contacts "X02"...
Page 34
BECKHOFF Drive Technology 5 Installation 5.2.1 Mains supply connection (X01) The servo drives of the AX5000 series are equipped with a wide voltage input "X01" and can be connected to voltage systems between single-phase 100 V - 240 V AC -10%...
Page 35
BECKHOFF 5 Installation Drive Technology 5.2.1.3 External protection, UL-compliant Integral solid state short circuit protection does not provide branch circuit protection. Branch circuit protection must be provided in accordance with the Manufacture Instructions, National Electrical Code and any additional local codes.
Page 36
BECKHOFF Drive Technology 5 Installation 5.2.2 24 V - supply network connection (X03) The 24 V connection "X03" is used for supplying control electronics and periphery with DC voltage. The control electronics and the periphery can be supplied separately with two different voltage sources.
Page 37
BECKHOFF 5 Installation Drive Technology 5.2.3.1 Connection example - module AX5901 and AX5911 (AX Bridge) This connection option enables a safe system to be set up very quickly. The modules are attached to plug contacts X01, X02 and X03, the relevant slides are pushed to the left and screwed tight.
Page 38
BECKHOFF Drive Technology 5 Installation 5.2.3.2 Connection example - wiring in series without AX Bridge Wire the relevant connections using individual cables. Hazard to inviduals and equipment • Please ensure that the final supply network connection cable is adequately dimensioned. The dimensioning depends on the total rated CAUTION current and must comply with EN60204-1.
Page 39
BECKHOFF 5 Installation Drive Technology 5.2.4 Configuration example Version : 3.9 AX5000 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
Page 40
BECKHOFF Drive Technology 6 Important information for commissioning Important information for commissioning Caution – Risk of injury! Electronic equipment is not fail-safe. The machine manufacturer is responsible for ensuring that the connected motors and the machine are WARNING brought into a safe state in the event of a fault in the drive system.
Page 41
BECKHOFF 7 Project planning – important information Drive Technology Project planning – important information The more thoroughly a machine or plant project is thought through in advance, the less risk there is of having to carry out expensive modifications during or after commissioning. This applies to both the mechanical and electrical design.
Page 42
Use pre-assembled Beckhoff motor and feedback cables as these are optimally adapted to the drive system and reduce interference to a minimum. Ensure that the connectors are properly connected: this applies to the motor connector in particular.
Page 43
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
