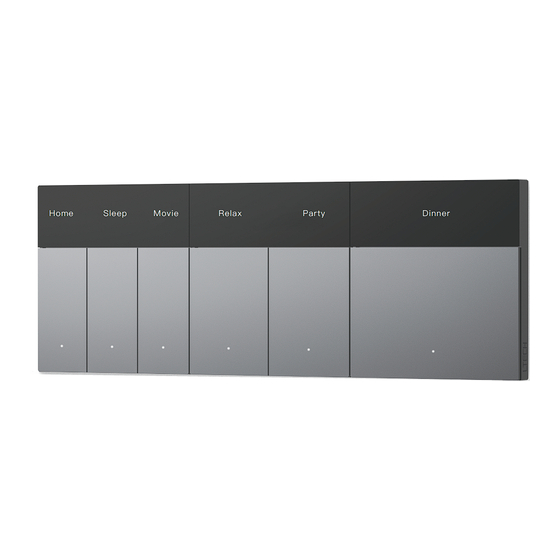

- Page 1 Super Smart Switch (1-Gang / 2-Gang / 3-Gang) Home Sleep Movie Relax Party Dinner Manual www.ltech-led.com...
-
Page 2: System Diagram
System Diagram Wi-Fi/4G/5G CLOUD Phone user... Phone user 1 Scene Timing Automation Home appliances & accessories Router Amazon Echo Google Home appliance HVAC manage- Curtain module ment module motor Wi-Fi Ethernet Drycontactmodule Relay Musicplayer Bluetooth 4.2 Bluetooth Mesh Bluetooth speaker Super Panel 6S Wireless Bluetooth... -
Page 3: Product Features
Designed with 86 type junction bo x. Available in 400+ combinations of switch panels ● with unified panel surrounds. Technical Specs Model S1 PRO S2 PRO S3 PRO Wireless Type Bluetooth 5.0 SIG Mesh Power Supply Null and live line powered 100-240V~, 50/60Hz, μ... -
Page 4: Product Images
Product Images Load Wire L3/L2/L1 Live Line Null Line Screen Display Party Relax Movie switch 1 switch 2 switch 3 Product Size Unit: mm 60.8 28.7 60.0 86.0 62.8 62.8 86.0 40.0... -
Page 5: Installation Steps
Installation Steps ①Turn off the circuit breaker and remove any concrete or corrosion that are inside the 86 type wall box. Trim each power cord wire in the wall box to about 10cm in length. Pry the switch plate up with a flat head screwdriver. ② Attach the live line to L socket of the switch and the null line to N socket, and the load wire to L1/L2/L3 socket. - Page 6 ③ Insert the screws into the hole on two sides of the switch and secure the screws to fit the switch to the wall with a screwdriver. ④ Slant the switch plate and put it in place. Finally, turn on the circuit breaker and press any key of the switch.
-
Page 7: Recommended Applications
Recommended Applications 1. Connect to traditional lamps and turn them into smart ones. Smart switch Traditional lamp 2. Work with a Bluetooth LED driver to wirelessly control lamps. Smart switch Bluetooth driver Lamp 3. Support local scenes that can still run without the Internet or a gateway. Home appliance Smart switch Bluetooth driver... - Page 8 App Operating Instructions 1. Register an account Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Then open the App and log in or register an account. 2. Connect to the network Create a home if you are a new App user.
- Page 9 3. Create a panel group Click【 +】 icon in the upper right corner of “Room” interface to access “Add device” list. Pick【 Group-Smart switch group】 . Create a smart switch group, then rename the group and set up the room it belongs to. Pick devices you want to add to the group.
- Page 10 4. Bind a device In “Room” interface, click the smart switch you have added to access its control interface. Short press the switch on the screen you want to bind, or click the【 】 to access the settings and select the switch. Click Bind object 【 Device】and set up short press and long press actions on this switch, then save your setting.
- Page 11 5. Set up the display In the control interface, set up screen display of the switchs by tapping“Screen dis- play of Switch 1 / Switch 2 / Switch 3”, then save the setting.
- Page 12 6. Local scene Create a local scene: Switch to “Intelligence” interface and click【 +】 icon in the upper right corner to add a local scene. After you set up the action performed in this scene, the local linkage with the Bluetooth device can be achieved. Bind a local scene: In the switch’s control interface, long press the switch you want to bind or click the 【...
- Page 13 7. Cloud scene and automation Please be sure a smart gateway device is added to your home, such as Super Panel 6S. Cloud scene: Switch to “Intelligence” interface and click【 +】 icon in the upper right corner to add a cloud scene. After you set up the action performed in this cloud scene, the remote linkage can be achieved.
- Page 14 FAQs 1. How to reset a switch to factory defaults? Long press the rightmost switch for 15s(S1 PRO=only switch, S2 PRO=second switch, S3 PRO=third switch) and release it until all the indicator lights flash fast. Within 3s, short press the same switch 3 times and the indicator light flashes slowly, which means the switch has been reset to factory defaults.
-
Page 15: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
