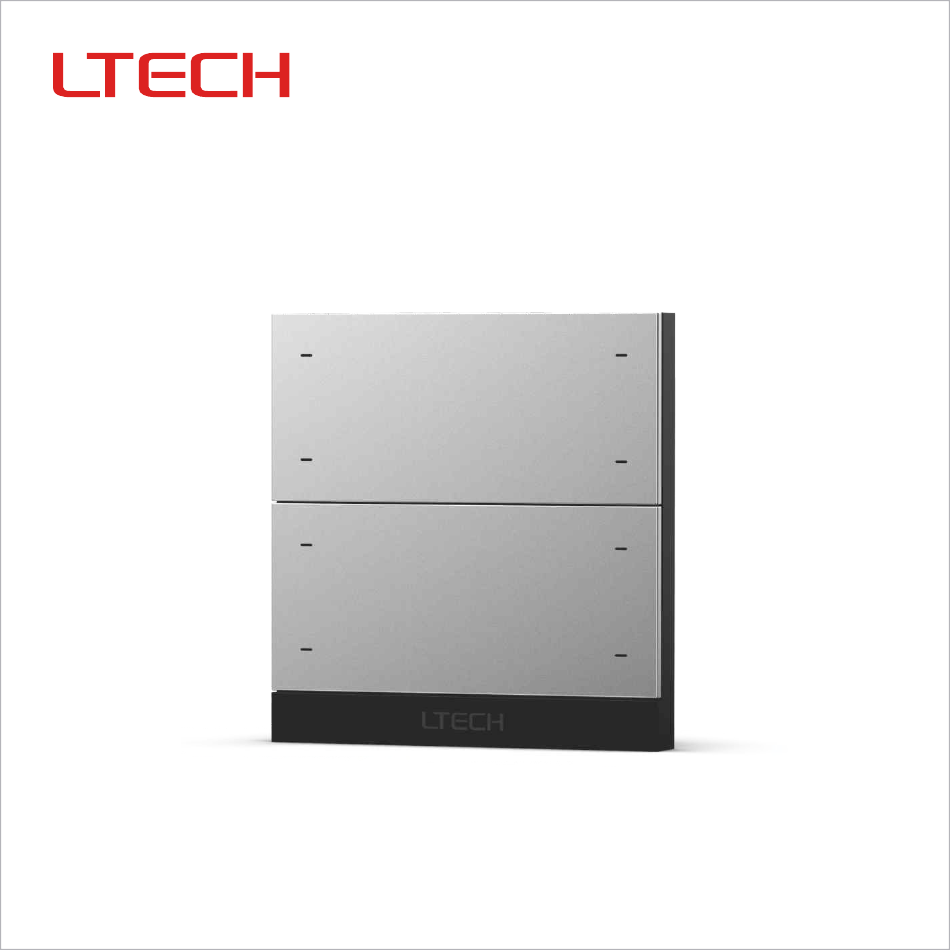

- Page 1 Super Smart Switch ( 8 - G a n g ) Manual www. ltech-led .com...
-
Page 3: Product Features
Product Features Use CNC aluminum alloy buttons.,Available in four colors that can be blended seamlessly into any decorating style. Bluetooth 5.0 SIG Mesh with high networking capacity is reliable and stable. Work with Bluetooth wireless LED drivers to turn lights on/off and change the colors of lights. With programmable settings, making your life smarter and simpler. -
Page 4: Product Size
Overview Key 1 Key 2 Key 3 Key 4 Key 5 Key 6 Key 7 Key 8 Power cord Paring key Product Size Unit: mm... -
Page 5: Installation Instructions
Installation Instructions 1. Turn off the circuit breaker and remove any concrete or corrosion that are inside the wall box. Trim the power cord wire in the wall box to 10cm in length approximately. Each wire is about 10cm in length. 2. - Page 6 4. Insert the screws into the hole on two sides of the switch and secure the screws to fit the switch to the wall with a screwdriver. Install the European standard junction box with KM2.6 screws Install the 86 type junction box with PM4 screws 5.
-
Page 7: Recommended Applications
Recommended Applications 1. Wireless control of lamps Super Smart Switch Bluetooth driver Lamp 2. Intelligent control of home appliances Bluetooth smart Super Smart Switch Bluetooth driver Lamp curtain motor 3. Support local scenes that can run without the Internet or a gateway. Super Smart Switch Home appliance Bluetooth driver... - Page 8 App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Scan and download the App 1.2 Open the App and log in or register an account. 1.3 Create a home if you are a new user.
- Page 9 2. How to bind lights/ light groups Go to the device interface and short press the key you want to bind. Or go to the settings to click the key your want to bind. Pick a light/ light group you'll bind to the key ,then set up turning on/off and adjusting brightness by a short press and a long press.
- Page 10 3. How to bind keys of the other switch panel Go to the device interface and click the key your want to bind. Then select a switch panel and pick the key of the switch panel you want to bind, and click “Save”. After that, you are able to control the key of the other switch panel with a smart switch (Binding other switch panel keys allows turning on and off, turning on, turning off only).
- Page 11 Attentions Products shall be installed by qualified professionals. LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure. Good heat dissipation will extend the working life of products. Please ensure good ventilation.
-
Page 12: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty ,and release in written form shall prevail.
