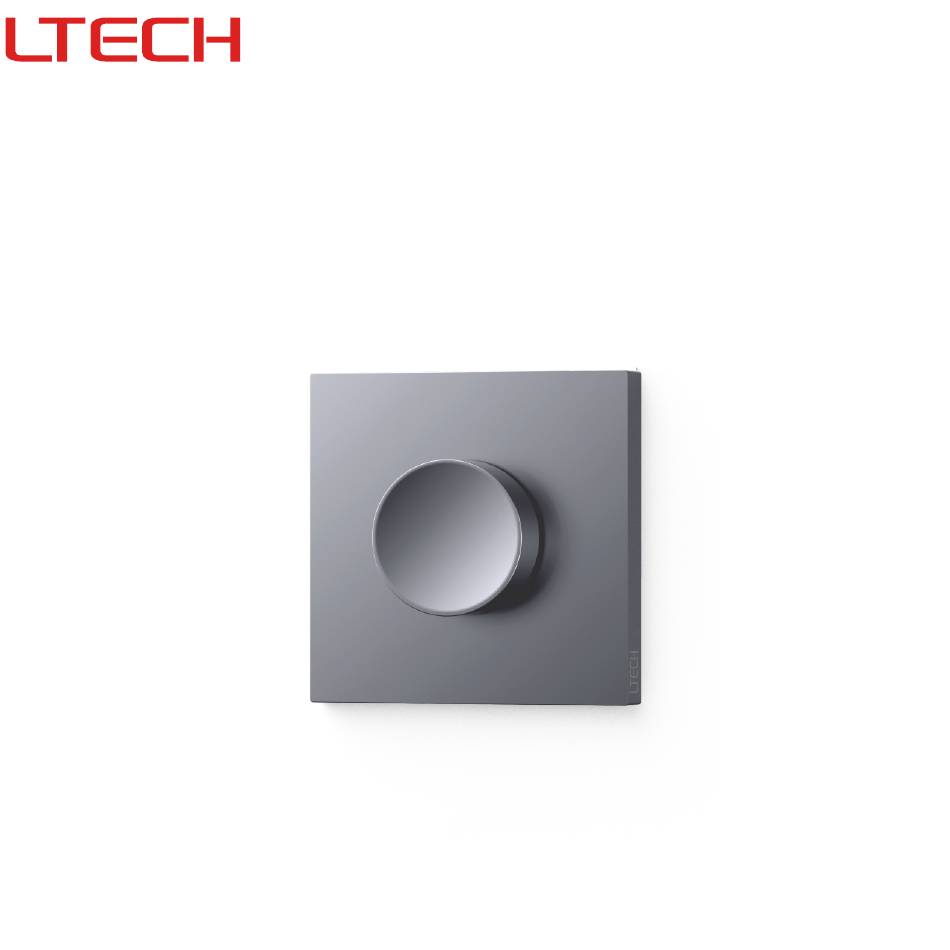

- Page 1 Super Smart Switch (Smart Knob Switch) Manual www.ltech-led.com...
-
Page 2: System Diagram
System Diagram Wi-Fi/4G/5G CLOUD Phone user... Phone user 1 Scene Timing Automation Home appliances & accessories Router Amazon Echo Google Home appliance HVAC manage- Curtain module ment module motor Wi-Fi Ethernet Drycontactmodule Relay Musicplayer Bluetooth 4.2 Bluetooth Mesh Bluetooth speaker Wireless Bluetooth More... -
Page 3: Product Features
Product Features Control on/off, brightness, light colors by pressing or rotating the knob. ● Endless rotation knob. Set the knob sensitivity , adjust lighting eff ects or device ac- ● tions via APP. Bluetooth 5.0 SIG Mesh with strong networking capability makes local control ●... -
Page 4: Product Images

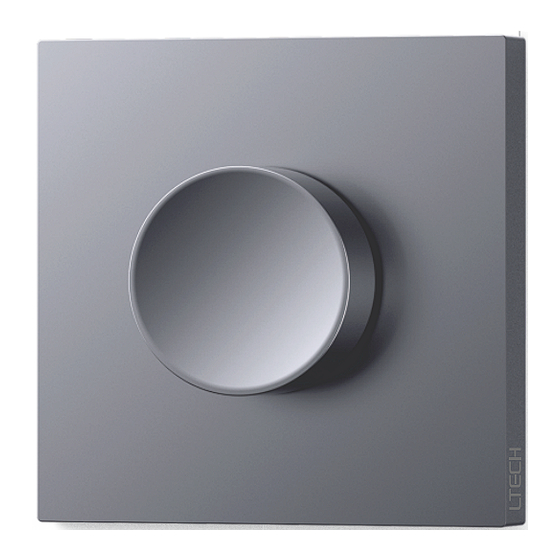

Product Images Live Line Null Line Knob Product Size Unit: mm 40.0 14.0 60.8 60.0 62.8 86.0 62.8 86.0 10.5... - Page 5 Knob Instructions Single press Double press Rotate Long press Action Single press Double press Rotate Long press Device DIMlight ON/OFF No device action Adjust BRT BRT ± Switchmode Adjust current mode CTlight BRT ± ON/OFF (BRT/CT) (BRT/CT) Switchmode Adjust current mode RGBlight ON/OFF BRT ±...
- Page 6 Single press Double press Rotate Press and rotate Action Single press Double press Rotate Press and rotate Device Left rotation Music (Previous song) Play music Pause music player Right rotation Right rotation (Volume+) (Next song) Adjust curtain fullness Bluetooth Open/Close Pause No device action (Left rotation:Open)
-
Page 7: Installation Steps
Installation Steps ①Turn off the circuit breaker and remove any concrete or corrosion that are inside the 86 type wall box. Trim each wire in the wall box to about 10cm in length. Detach the switch plate from the switch with a flat head screwdriver. ②Attach the live line to L socket of the switch and the null line to N socket. - Page 8 ③Insert the screws into the holes on two sides of the switch and secure the screws to fit the switch to the wall with a screwdriver. ④ Slant the switch plate and snap it on the switch. Finally, turn on the circuit breaker and press the knob.
-
Page 9: Recommended Applications
Recommended Applications 1. Work with a Bluetooth LED driver to wirelessly control the lamp. Lamp Knob switch Bluetooth driver 2. Work with a Bluetooth music player to play music freely. Music player Bluetooth speaker Knob switch 3. Work with a Bluetooth curtain motor to intelligently control the curtains. Knob switch Bluetooth curtains 4. - Page 10 App Operating Instructions 1. Register an account Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Then open the App and log in or register an account. 2. Connect to the network Create a home if you are a new App user.
- Page 11 3.Bind a device In “Room” interface, click the smart switch you have added to access its control interface. Long press the knob on the screen and select the device you want to bind by tapping 【 Device】 , then save your setting.
- Page 12 4.Automation Please be sure a smart gateway is added to your home, such as Super Panel 6S. Tap【Automation】 in “Intelligence” interface and click【 + 】 icon to create automa- tion. You can choose local or cloud execution option, then set the trigger conditions and executing action. When the conditions you set are met, a series of device actions will be automatically triggered to perform and remote linkage is achieved as well.
- Page 13 FAQs 1. How to reset a switch to factory defaults? Long press the knob for 15s and release it until the indicator light flashes fast. Within 3s, short press the knob 3 times and the indicator light flashes slowly, which means the switch has been reset to factory defaults.
-
Page 14: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
