Ltech LT-424-GC Quick Start Manual

LT-424-GC

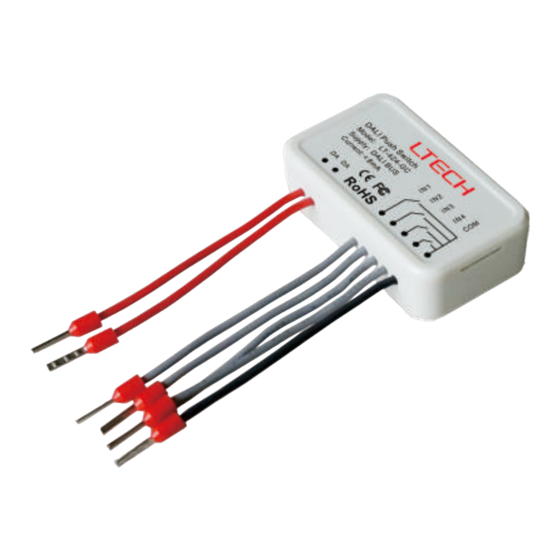

DALI Group Push Switch
PC plastic shell.
Small size, easy installation.
No external power supply, simply connected to the DALI bus.
Low voltage operation, safe and reliable.
Applicable to home, office, hotel, supermarket etc.
Ordinary reset switch can achieve DALI intelligent control.
Main Characteristics
Interface Protocol: DALI (IEC62386)
Power Supply: DALI Bus
Current: ≤8mA (static)
Working Temperature: -30℃~55℃
Dimensions
28mm 150mm
Set group address via dip switch:
Dip Switch
CHA CHA
Group 0 Group 1
CHA
Group 8 Group 9
warranty
5 years
Group Mode：0
Dimensions: L48×W28×H14(mm)
Package Size: L50×W40×H30(mm)
Weight(G.W.): 32g
14mm
CHA
Group 2 Group 3
CHA
CHA
Group 10 Group 11
15
-
Installation Instruction
Install
Address value=the total value of (1-4),
to get the place value when in "on" position,
otherwise will be 0.
CHA CHA
Group 4 Group 5
CHA
CHA
Group 12 Group 13
Group
Hide this product in the switch box
Uninstall
CHA CHA
Group 6 Group 7
CHA CHA
Group 14 Group 15
CHA
CHA
1
