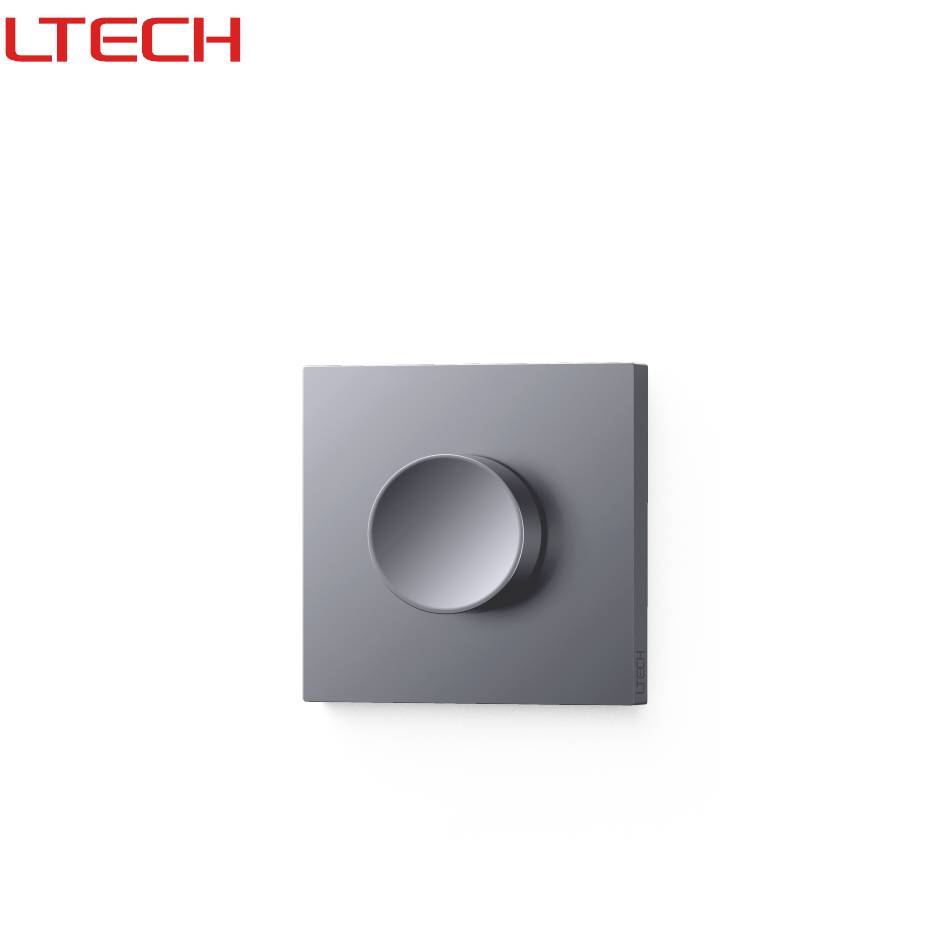

- Page 1 Super Smart Switch (Smart Knob Switch) Manual www.ltech-led.com...
-
Page 2: System Diagram
System Diagram Wi-Fi/4G/5G CLOUD Phone user... Phone user 1 Scene Timing Automation Home appliances & accessories Router Amazon Echo Google Home appliance HVAC manage- Curtain module ment module motor Wi-Fi Ethernet Drycontactmodule Relay Musicplayer Bluetooth 4.2 Bluetooth Mesh Bluetooth speaker Wireless Bluetooth More... -
Page 3: Product Features
Product Features Control on/off, brightness, light colors by pressing or rotating the knob. ● Endless rotation knob allows smooth and delicate adjustment. Adjust lighting or ● device effects as you wish. Bluetooth 5.0 SIG Mesh with strong networking capability makes local control re- ●... -
Page 4: Product Images
Product Images Knob Insulation sheet (Detach the plate from the switch to pull it out) Product Size Unit: mm... - Page 5 Knob Instructions Single press Double press Rotate Long press Action Single press Double press Rotate Long press Device DIMlight ON/OFF No device action Adjust BRT BRT ± Switchmode Adjust current mode CTlight BRT ± ON/OFF (BRT/CT) (BRT/CT) Switchmode Adjust current mode RGBlight ON/OFF BRT ±...
- Page 6 Single press Double press Rotate Press and rotate Action Single press Double press Rotate Press and rotate Device Left rotation Music (Previous song) Play music Pause music player Right rotation Right rotation (Volume+) (Next song) Adjust curtain fullness Bluetooth Open/Close Pause No device action (Left rotation:Open)
-
Page 7: Recommended Applications
Recommended Applications 1. Work with a Bluetooth LED driver to wirelessly control the lamp. Lamp Smart switch Bluetooth driver 2. Work with a Bluetooth music player to play music freely. Music player Bluetooth speaker Smart switch 3. Work with a Bluetooth curtain motor to intelligently control the curtain. Smart switch Bluetooth curtain 4. - Page 8 App Operating Instructions 1. Register an account Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Then open the App and log in or register an account. 2. Connect to the network Create a home if you are a new App user.
- Page 9 3.Bind a device In “Room” interface, click the smart switch you have added to access its control interface. Long press the knob on the screen and select【 Bind object-Device】 , then save your setting. Next, follow the on-screen prompts to activate the smart switch. Knob panel (Battery powered) Knob panel (Battery powered) Knob panel...
- Page 10 4.Automation Please be sure a smart gateway is added to your home, such as Super Panel 6S. Tap【Automation】 in “Intelligence” interface and click【 + 】 icon to create automa- tion. You can choose local or cloud execution option, then set the trigger conditions and executing action. When the conditions you set are met, a series of device actions will be automatically triggered to perform and remote linkage is achieved as well.
- Page 11 FAQs 1. How to reset a switch to factory defaults? Long press the knob for 15s and release it until the indicator light flashes fast. Within 3s, short press the knob 3 times and the indicator light flashes slowly, which means the switch has been reset to factory defaults.
-
Page 12: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
