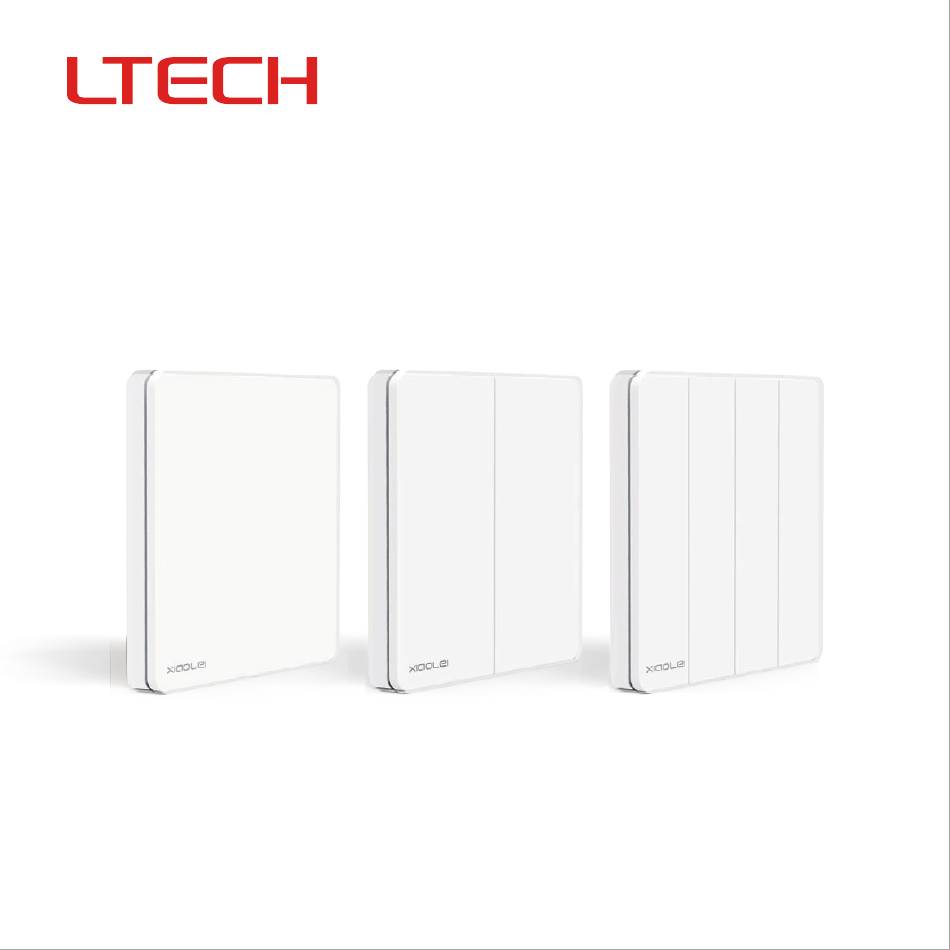

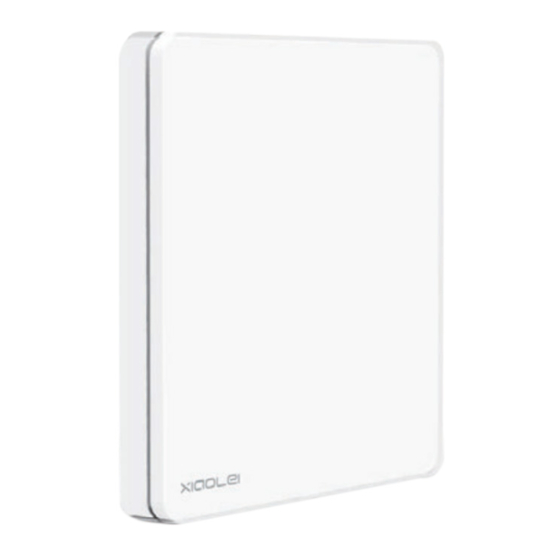

- Page 1 Bluetooth Smart Wireless Switch (Programmable) PS-BLE01 PS-BLE02 PS-BLE04 Manual www. ltech-led.com...
-
Page 2: Product Introduction
Product Introduction Xiaolei Bluetooth smart wireless switch is a key type switch that adopts Bluetooth 5.0 SIG Mesh technology. Powered by batteries, it’s easy to install a wireless switch in the junction box or place it anywhere as needed, such as pasting on the wall, counter or table. -
Page 3: Technical Specs
Technical Specs Bluetooth Smart Wireless Switch Working Temperature: -20 C~55 C Product Name: Package Size (L×W×H)： 90×90×24(mm) Bluetooth 5.0 SIG Mesh Wireless Protocol Type: 100g 3Vdc (Button battery CR2032) Weight(G.W.): Working Voltage: Key Functions Insulation sheet Screw hole Pairing button Short press to activate the device Long press for 6 seconds... -
Page 4: Installation Instructions
Dimensions Unit：mm 13.5 Installation Instructions 1. Place freely This product can be directly placed on a desktop. 2.Install with 3M stickers Adhere the panel to a wall directly with the 3M stickers in the package. Install with 3M stickers Unscrew 3. -
Page 5: Application Diagram
Application Diagram Bluetooth Personal Area Network Application Driver Smart Wireless Switch Driver Cloud Automation Application Automation 1 Automation 1 Automation 2 Automation 2 Infrared /433 WiFi/4G/5G WiFi Airer Curtain conditioning Router Home appliance module More More WiFi Ethernet Wednesday Automation 1 Automation 2 Sunny Weather... -
Page 6: Register An Account
App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Scan and download the App 1.2 Open the App and log in or register an account. Create a home if you are a new user. - Page 7 2. Pairing instructions and function settings Access “Add Device “ list and follow the prompts to add the driver firstly. Pick “Remote- Wireless Switch” from the list. Follow the prompts to pull out the insulation sheet first, and then short press the built - in pairing button to put the device into activated mode. The indicator light is flashing slowly at this moment, then click “Bluetooth Search”...
-
Page 8: Advanced Function
3. Advanced function This wireless switch can be linked up with gateway devices (such as LTECH Super Panel) to achieve automation. - Page 9 4. How to delete the device Go to settings and click “Delete”. Follow the prompts to connect your mobile phone to Bluetooth and make sure the device is near you phone. Remove the panel switch cover and short press the pairing button to put the device into activated mode. Click “Delete Device”...
-
Page 10: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
