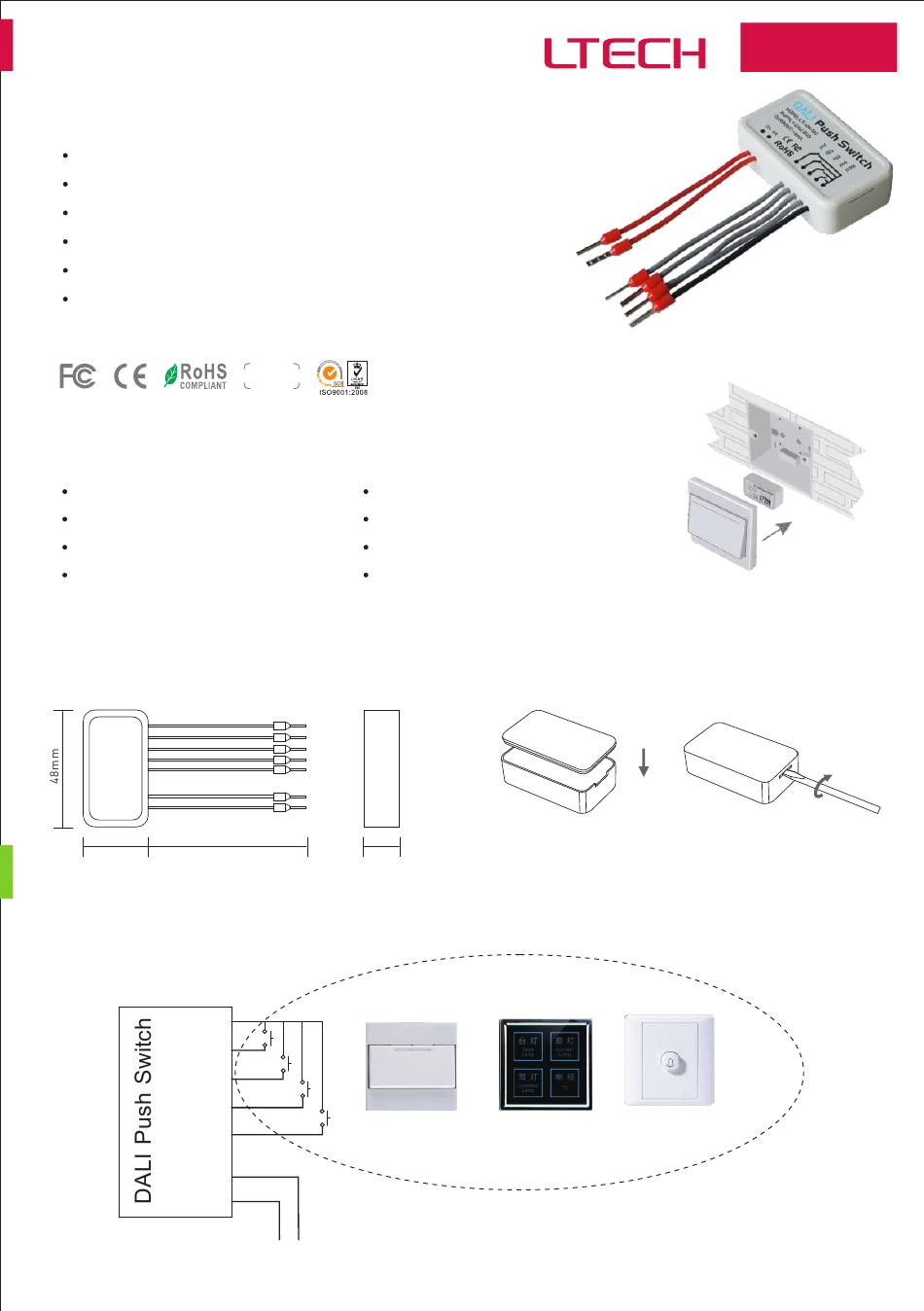

LT-424-MC
DALI Broadcast Push Switch
PC
plastic shell.
Small size, easy installation.
No external power supply, simply connected to the DALI bus.
Low voltage operation, safe and reliable.
Applicable to home, office, hotel, supermarket etc.
Ordinary reset switch can achieve DALI intelligent control.
Main Characteristics
Interface Protocol: DALI (IEC62386)
Power Supply: DALI Bus
Current: ≤8mA (static)
Working Temperature: -30℃~55℃
Dimensions
28mm
150mm
Switch Type
COM
IN4
IN3
IN2
IN1
DA
DA
warranty
5 years
Mode Broadcast
:
Dimensions: L48×W28×H14(mm)
Package Size: L50×W40×H30(mm)
Weight(G.W.): 32g
14mm
Reset switch
Short press: Press and release in 1 second to turn on/off.
Long Press: Press for more than 1
release and long press again is decrease brightness.
DALI Bus
Installation Instruction
Install
Switch Type
Doorbell switch
Digital touch switch
second
for dimming, first long press is increase brightness,
Broadcast
Hide this product in the switch box
Uninstall
1
