- Page 1 Super Smart Switch ( 4 - G a n g ) Manual www. ltech-led .com...
-
Page 2: Application Diagram
Application Diagram Wi-Fi/4G/5G CLOUD Scene Timing Automation Phone user ... Phone user 1 Homeappliancesandaccessories Router Amazon Echo Google Home appliance HVAC Curtain motor module management module Wi-Fi Ethernet Dry contact Relay Music player module Bluetooth Bluetooth 4.2 Mesh Bluetooth speaker Wireless switch Bluetooth remote More... -
Page 3: Product Features
Product Features ● Use CNC aluminum alloy buttons.Available in four colors that can be blended seamlessly into any decorating style. ● 4-gang switch with the latest Bluetooth 5.0 SIG Mesh technology turns traditional lights into smart ones. Completely turn lights off and stop LED lights from glowing, It is energy-efficient and secure. ●... -
Page 4: Product Images

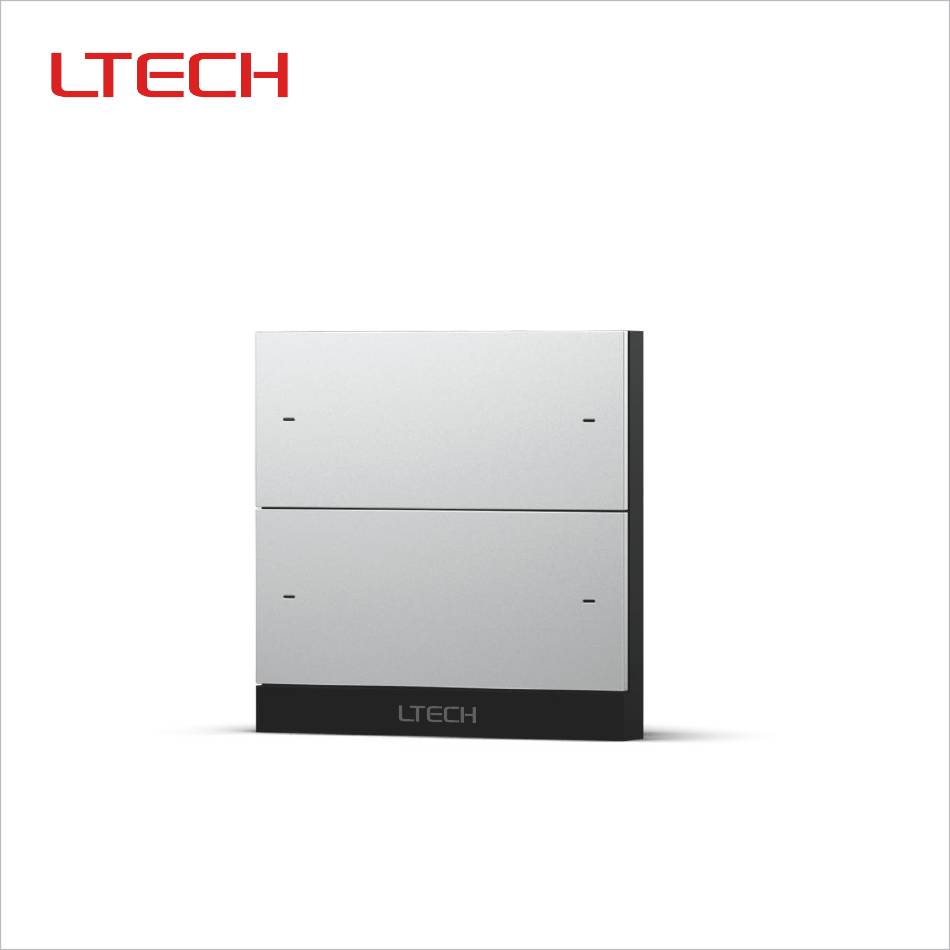

Product Images Switch 1 Switch 2 Switch 3 Switch 4 Power cord Load wire Paring key Product Size Unit: mm... -
Page 5: Installation Instructions
Installation Instructions 1. Turn off the circuit breaker and remove any concrete or corrosion that are inside the wall box. Trim the power cord wire in the wall box to 10cm in length approximately. Each wire is about 10cm in length. 2. - Page 6 4. Insert the screws into the hole on two sides of the switch and secure the screws to fit the switch to the wall with a screwdriver. 5. Slant the switch plate cover and put it in place, then secure the plate cover to the switch from the bottom with a KM2 screw.
-
Page 7: Recommended Applications
Recommended Applications 1.Connect to traditional lamps and turn them into smart ones . Smart Switch Traditional lamp 2. Wireless control. Smart Switch Blutooth driver Lamp 3. Support local scenes that can run without the Internet or a gateway. Smart Switch Home appliance Blutooth driver Lamp... - Page 8 App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation. Scan and download the App 1.2 Open the App and log in or register an account. 1.3 Create a home if you are a new user.
- Page 9 2. How to bind lights/ light groups Bind lights / light groups: Go to the device interface and long press the key you want to bind. Or go to the settings to click the key your want to bind. Then click“Bind object”and pick a light or a light group, and set up turning on/off and adjusting brightness by a short press and a long press.
- Page 10 3. How to create a switch panel group In “ Add device” interface, click “Group” and pick the smart switch group you need. Create a smart switch group, then rename the group and set up the room it belongs to. Pick devices you want to add to the group, then the group will be created successfully.
- Page 11 Attentions Products shall be installed by qualified professionals. LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure. Good heat dissipation will extend the working life of products. Please ensure good ventilation.
-
Page 12: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
