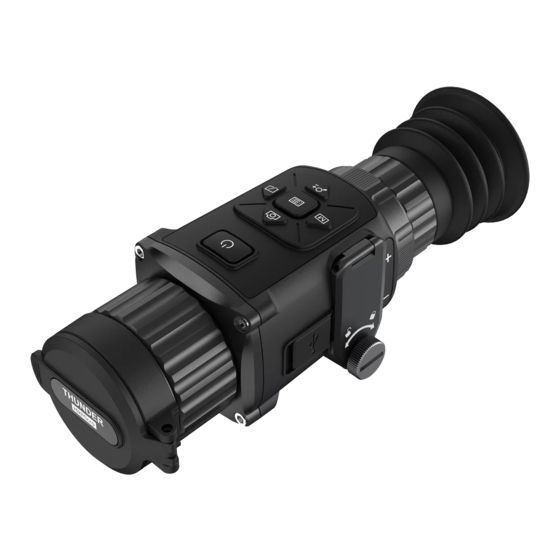

Hikmicro Thunder Pro TQ35C User Manual

Thermal image scope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Thermal Image Scope
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thunder Pro TQ35C and is the answer not in the manual?

Questions and answers

Related Manuals for Hikmicro Thunder Pro TQ35C

Summary of Contents for Hikmicro Thunder Pro TQ35C

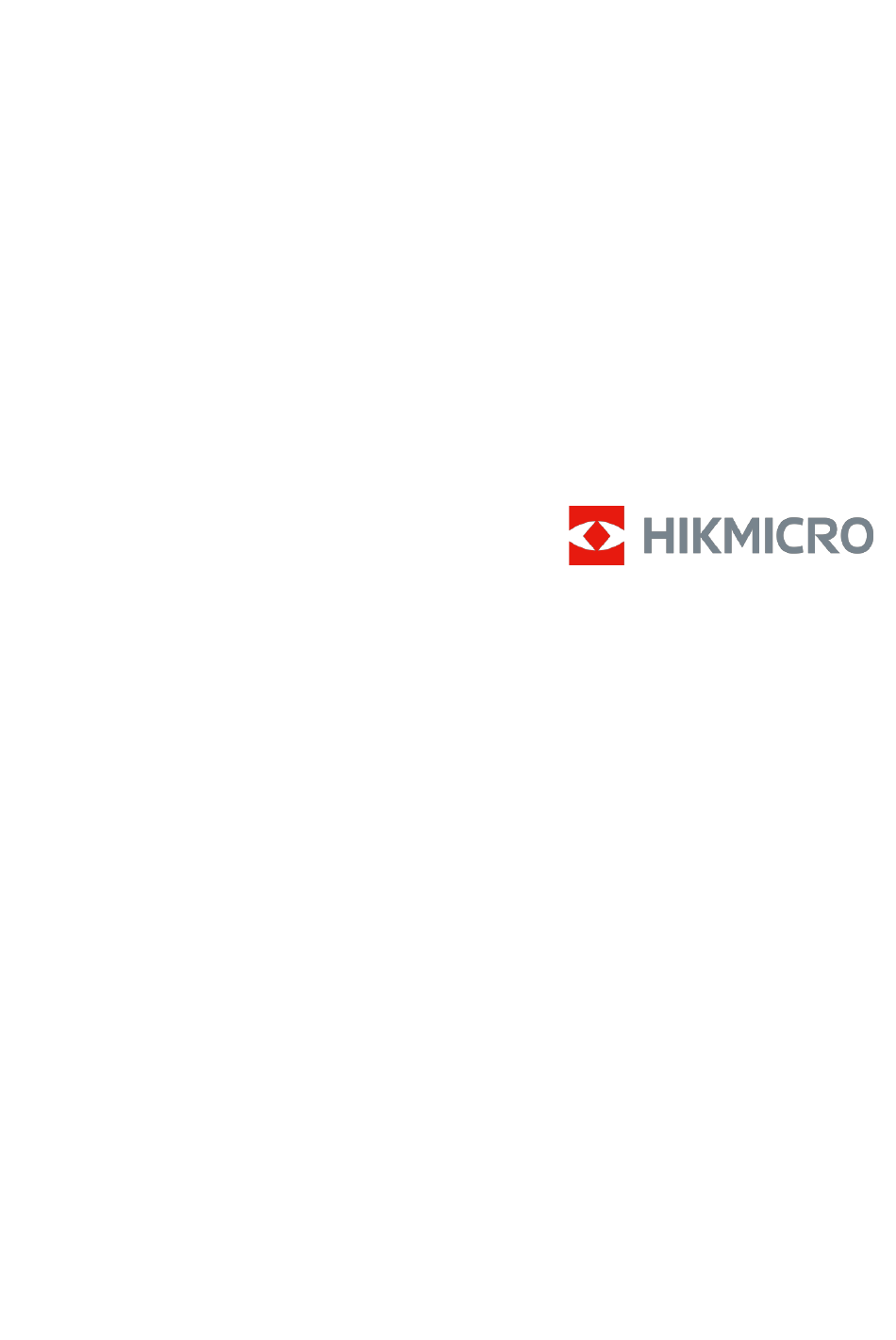

  • Page 1 Thermal Image Scope User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Thermal Image Scope User Manual CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Thermal Image Scope User Manual Regulatory Information FCC Information Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 Thermal Image Scope User Manual Directive 2006/66/EC (Battery Directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 Thermal Image Scope User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 7 Thermal Image Scope User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 8 Thermal Image Scope User Manual ● Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary. ● If the equipment is used in a manner not specified by the manufacturer, the protection provided by the device may be impaired. ●...

  • Page 9: Table Of Contents

    Thermal Image Scope User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Device Description ......................1 1.2 Main Function ........................1 1.3 Appearance ........................1 1.3.1 Button ........................2 1.3.2 Interface ......................... 3 Chapter 2 Preparation ........................5 2.1 Cable Connection ......................
  • Page 10 Thermal Image Scope User Manual Chapter 4 Burning Prevention ...................... 17 Chapter 5 Hot Tracking ......................... 18 Chapter 6 Aiming Point Settings ....................19 6.1 Correct Reticle ........................ 19 6.2 Correct Trajectory ................错误 ! 未定义书签。 6.3 Set Reticle Color ......................20 Chapter 7 Measure Distance ......................

  • Page 11: Chapter 1 Overview

    ● Client Software Connection: The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. ● Image Correction: The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality.

  • Page 12: Button

    Thermal Image Scope User Manual 1.3.1 Button Figure 1-1 Buttons on Device Table 1-1 Function of Buttons Icon Button Description ● Press: Standby mode/wake up device Power ● Hold: Power on/off ● Press: Capture Capture ● Hold: Start/stop record video Shutter ●...

  • Page 13: Interface

    Thermal Image Scope User Manual 1.3.2 Interface Figure 1-2 Interfaces of Two Handheld Camera Types...
  • Page 14 Thermal Image Scope User Manual Figure 1-3 Interfaces of Thermal Telescope Table 1-2 Interface Description Component Function Lens Cover Protect the lens. Focus Ring Adjust the focal length. Data Exchange Connect with the output cable. Interface Fixing Ring Fix the eyepiece. Battery Install the battery in it.

  • Page 15: Chapter 2 Preparation

    Thermal Image Scope User Manual Chapter 2 Preparation 2.1 Cable Connection Connect the device and power adaptor with a type-C cable to power on the device. Alternatively, connect the device and PC to export files. Figure 2-1 Cable Interface 2.2 Install Battery Insert the batteries into the battery compartment.

  • Page 16: Select Battery Type

    Thermal Image Scope User Manual Figure 2-2 Loosen Knob 2. Make sure the battery's positive terminal and negative terminal are installed correctly. Figure 2-3 Install Batteries 3. Rotate the knob clockwise to tighten it. Take the battery away if the device is not used for a long time. 2.2.1 Select Battery Type You can change the battery type according to your need.

  • Page 17: Change Eyepiece

    Thermal Image Scope User Manual Steps 1. Install the device to the rail as the arrow shows. 2. Insert the screws, and tighten them. Figure 2-4 Tighten Screws 3. Tighten the knobs to secure the device. Figure 2-5 Secure the Device 2.4 Change Eyepiece The device can be used as a handheld observational camera or a clip-on scope.

  • Page 18: Power On/Off

    Thermal Image Scope User Manual Figure 2-6 Change Eyepiece 2.5 Power On/Off Power On When the battery is sufficiently charged, hold for about 2 seconds to power on the device. Power Off When the device is turned on, hold for about 2 seconds to power off the device. Auto Power Off Set the auto power off time for your device, and then the device will automatically shut down as the set time.

  • Page 19: Menu Description

    Thermal Image Scope User Manual 2.6 Menu Description When the device is turned on, press to display the OSD menu. ● Press to move the cursor up. ● Press to move the cursor down. ● Press to move the cursor left. ●...

  • Page 20: Chapter 3 Image Settings

    Thermal Image Scope User Manual Chapter 3 Image Settings 3.1 Adjust Diopter Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the diopter adjustment ring until the OSD text or image is clear. Figure 3-1 Adjust Diopter Note When adjusting diopter, DO NOT touch the surface of lens to avoid smearing the lens.

  • Page 21: Adjust Contrast

    Thermal Image Scope User Manual Figure 3-2 Adjust Brightness in White Hot Mode 3.4 Adjust Contrast In the menu mode, select and press to adjust image contrast. 3.5 Select Scene You can select proper scene according to actual using scene to improve the display effect. Steps 1.
  • Page 22 Thermal Image Scope User Manual The hot part is black-colored in view. The higher the temperature is, the darker the color is. Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.

  • Page 23: Correct Defective Pixel

    Thermal Image Scope User Manual 3.7 Correct Defective Pixel The device can correct the defective pixels on the screen which are not performed as expected. Steps 1. Hold to show the menu. 2. Select 3. Press , and to move the cursor to the position of dead pixel. 4.

  • Page 24: Flat Field Correction

    Thermal Image Scope User Manual 3.8 Flat Field Correction This function can correct non-uniformity of display. Steps 1. Hold to go to the menu. 2. Select and press to switch FFC mode. – Manual: Hold in live view to trigger calibration. –...

  • Page 25: Adjust Digital Zoom

    Thermal Image Scope User Manual Note ● If digital zoom is enabled, the PIP view also zooms. If the digital zoom ratio exceeds 4, the PIP does not zoom. ● This function varies according to different camera models. 3.10 Adjust Digital Zoom You can zoom the image by using this function.
  • Page 26 Thermal Image Scope User Manual Result The brand logo is displayed at the bottom right of the image. Figure 3-5 Brand Logo Display Note After enabling this function, the brand logo only displays on the live view interface, captures and videos.

  • Page 27: Chapter 4 Burning Prevention

    Thermal Image Scope User Manual Chapter 4 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When you enable this function, the shield will close if the grey scale of the detector reaches a certain value. Steps 1.

  • Page 28: Chapter 5 Hot Tracking

    Thermal Image Scope User Manual Chapter 5 Hot Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. Hold to show the menu. 2. Select and press to mark the spot of highest temperature. 3.

  • Page 29: Chapter 6 Aiming Point Settings

    Thermal Image Scope User Manual Chapter 6 Aiming Point Settings 6.1 Correct Reticle Enable the reticle to view the position of the target. The functions such as freeze and zoom help to adjust the reticle more accurately. Steps 1. In the view mode, hold to show the menu.

  • Page 30: Set Reticle Color

    Thermal Image Scope User Manual 9. Press , and to move the reticle until it reaches the target position. The coordinates show the current position of the reticle, and the small reticle indicates the initial position of the reticle. 10. Hold to exit the interface according to the prompt.
  • Page 31 Thermal Image Scope User Manual Steps 1. In the view mode, hold to show the menu. 2. Select , and press to switch the color of the reticle. Black, White, Green, and Red are selectable. 3. Hold to save and exit. Note In black hot mode, if you set the reticle color as white, the reticle will display black automatically.

  • Page 32: Chapter 7 Measure Distance

    Thermal Image Scope User Manual Chapter 7 Measure Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. Steps 1.

  • Page 33: Chapter 8 Picture And Video

    Thermal Image Scope User Manual Chapter 8 Picture and Video You can manually record video or capture picture when displaying live view. 8.1 Capture Picture On the main live view page, press to capture picture. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. For exporting captured pictures, refer to Export Files.

  • Page 34: Export Files

    Thermal Image Scope User Manual 8.3 Export Files This function is used to export recorded videos and captured pictures. Before You Start ● Turn off hotspot function. ● Turn on the device after connecting it to your PC, and keep the device on for 10 to 15 seconds before other operations.

  • Page 35: Chapter 9 Client Software Connection

    ● Hotspot Password: the last 9 digits of serial No. 4. Search the HIKMICRO Sight App on App Store (iOS System) or Google Play™ (Android System) to download it, or scan the QR code to download and install the app.

  • Page 36: Chapter 10 Cvbs Output

    Thermal Image Scope User Manual Chapter 10 CVBS Output The CVBS output is used to debug the device. You can also view the device image on the display unit for details. Before You Start Connect the device to the display unit via CVBS interface of the aviation plug. Steps 1.

  • Page 37: Chapter 11 Language Settings

    Thermal Image Scope User Manual Chapter 11 Language Settings You can select the device language in this function. Steps 1. Hold to show the menu. 2. Select , and press to enter the language configuration interface. 3. Press to select the language as required, and press to confirm.

  • Page 38: Chapter 12 Unit Settings

    Thermal Image Scope User Manual Chapter 12 Unit Settings You can switch the unit for fusion level and laser ranging functions. Steps 1. Hold to show the menu. 2. Press to select , and press to switch the unit. Yard and m (meter) are selectable.

  • Page 39: Chapter 13 Maintenance

    Thermal Image Scope User Manual Chapter 13 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 13.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select , and press .

  • Page 40: Chapter 14 Frequently Asked Questions

    Thermal Image Scope User Manual Chapter 14 Frequently Asked Questions 14.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 14.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear.

  • Page 41: Chapter 15 Appendix

    Chapter 15 Appendix 15.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 15.2 Device Communication Matrix Scan the following QR code to get device communication matrix.
  • Page 42 UD29798B...
