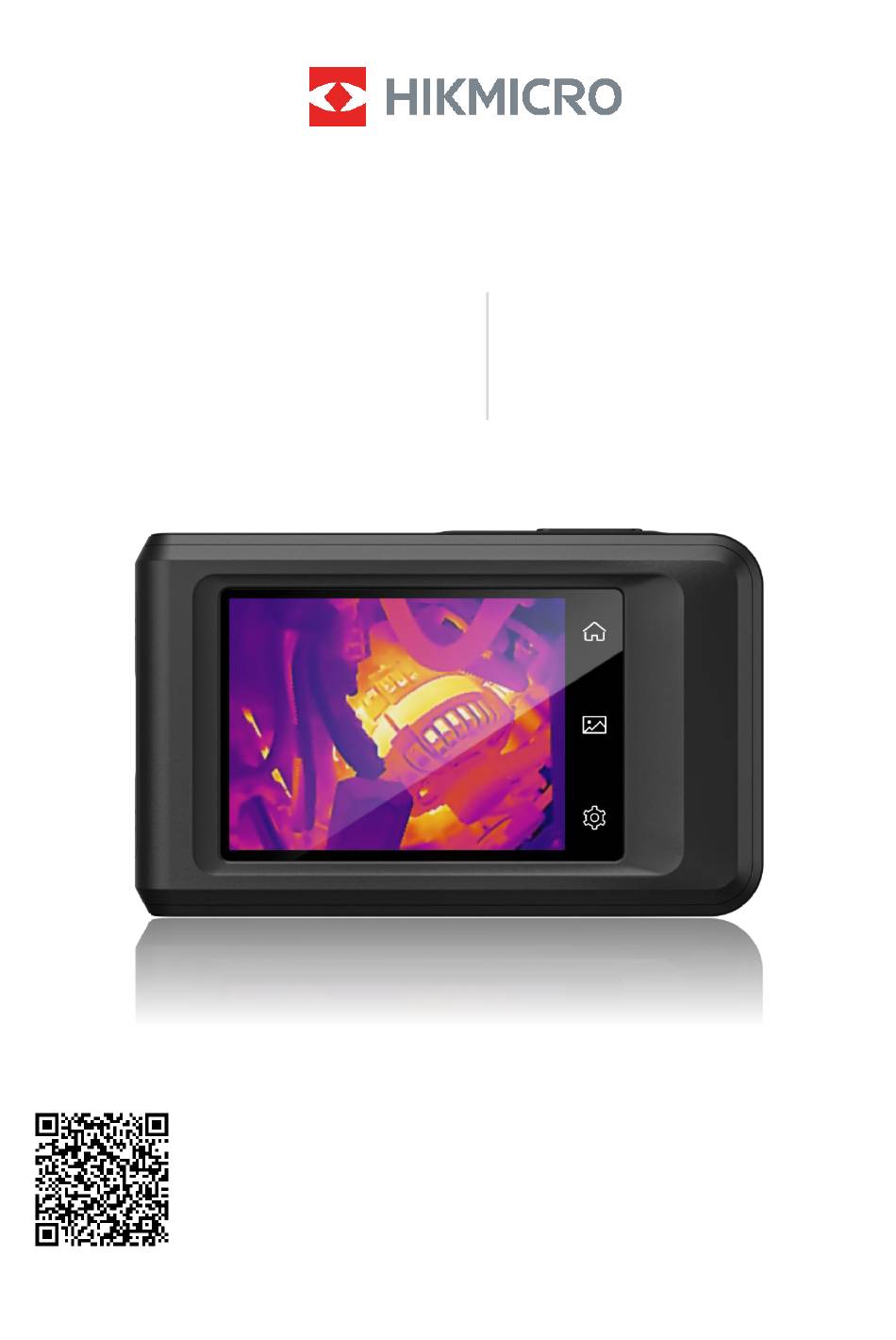

  • Page 1 Thermal Camera POCKET User Manual Contact Us...

  • Page 2: Safety Instruction

    Pocket Series User Manual Safety Instruction SAFETY INSTRUCTION These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Please read all the safety information carefully before using. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations.

  • Page 3: Using Environment

    Pocket Series User Manual Safety Instruction For long-term storage of the battery, make sure it is fully charged every three months to  ensure the battery quality. Otherwise, damage may occur. Use the battery provided by a qualified manufacturer. Refer to the product specification ...
  • Page 4  HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Limited Warranty Scan the QR code for the product warranty policy.

  • Page 5: Symbol Conventions

    Pocket Series User Manual Safety Instruction Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or Danger could result in death or serious injury.

  • Page 6: Table Of Contents

    Pocket Series User Manual Contents CONTENTS Chapter 1 Overview ........................1 1.1 Notice to User ......................... 1 1.2 Device Description ......................1 1.3 Main Function ......................... 1 1.4 Appearance ........................2 Chapter 2 Preparation ......................4 2.1 Charge Device ......................... 4 2.2 Power On/Off ........................
  • Page 7 7.4 View Files ........................23 7.5 Manage Files ......................... 24 7.6 Export Files ........................25 7.6.1 Export via HIKMICRO Viewer (If Applicable) ........... 25 7.6.2 Export via PC ...................... 25 Chapter 8 Device Connections....................26 8.1 Cast Device Screen to PC .................... 26 8.2 Connect Device to HIKMICRO Viewer .................

  • Page 8: Chapter 1 Overview

    1.2 Device Description The pocket thermography camera is a device with both visual images and thermal images. It can do temperature measurement, video recording, snapshot capturing, alarm, and it can connect to applications or software clients via Wi-Fi and hotspot.

  • Page 9: Appearance

    Pocket Series User Manual Overview Palettes The camera supports multiple color palettes for different targets and user preference. Client Software Connection (If Applicable) If your particular model supports Wi- Download HIKMICRO Analyzer Fi and Hotspot, scan the QR code to https://www.hikmicrotech.com/en/industrial-...
  • Page 10 Pocket Series User Manual Overview Description Function File Key Tap to enter albums. Settings Key Tap to enter settings interface. Flash Light Fill light on objects and output flashing alarm. Thermal Lens View the thermal image. Visual Lens View the visual image.

  • Page 11: Chapter 2 Preparation

    Pocket Series User Manual Preparation CHAPTER 2 PREPARATION 2.1 Charge Device The camera is equipped with a built-in battery. It is recommended to charge the camera with the included USB cable in the package and the Type-C interface on camera. Do not use the USB-C to USB-C cable of other manufacturers.

  • Page 12: Operation Method

    Pocket Series User Manual Preparation for device as required. 2.3 Operation Method The device supports touch-screen control. You can tap the screen to set parameters and configurations. 2.4 Menu Description Live View Measurement Tools Live View Temperature Albums Range Local Settings...
  • Page 13 Pocket Series User Manual Preparation Because this manual is updated on a regular basis, the interfaces might be slightly NOTE different from the version of your particular camera model. Please refer to the actual camera.

  • Page 14: Chapter 3 Start With Scene Mode (If Applicable)

    Pocket Series User Manual Temperature Measurement CHAPTER 3 START WITH SCENE MODE (IF APPLICABLE) To conduct fast anomaly detection, several preset templates are included in Scene mode for various detection scenarios. Users can choose an appropriate scene or customize a scene as per targets, and set high temperature alarm as needed.
  • Page 15 Pocket Series User Manual Temperature Measurement Missed or even wrong reporting emerges when temperature difference of the areas NOTE  with leak anomalies is too subtle to be recognized, etc. It is recommended to give a second diagnosis based on SuperScene function. The ...
  • Page 16 Pocket Series User Manual Temperature Measurement Solar Panel To detect and observe the faults of solar panels. Insulation Pro To detect indoor insulation anomalies of building walls and ceilings, professional users can apply this scene. Extra parameters Indoor Temp., Outdoor Temp. and Insulation Level are required.

  • Page 17: Optional) Set Scene Mode Parameters

    Pocket Series User Manual Temperature Measurement Relative humidity: The current relative humidity.  Ambient temperature: The current atmospheric temperature.  RH Threshold: Humidity upper limits of the target surface. A relative humidity of  100% means that water vapor condenses from the air as liquid water (=...
  • Page 18 Pocket Series User Manual Temperature Measurement Temperature Range Select the temperature measurement range. The device can detect the temperature and switch temperature measurement range automatically in Auto Switch mode Alarm When the temperature of targets triggers the set alarm rule, Chapter 5 Set Alarms.

  • Page 19: Chapter 4 Precise Temperature Measurement

    Pocket Series User Manual Temperature Measurement CHAPTER 4 PRECISE TEMPERATURE MEASUREMENT To get more precise and real-time temperature of the target, user can set spot tools and high temperature alarm as needed. For models with scene modes, select a proper scene to speed up the measurement Chapter 3 Start With Scene Mode settings.

  • Page 20: Set Temperature Measurement Parameters

    Pocket Series User Manual Temperature Measurement Observe temperature results in live view interface. 4.2 Set Temperature Measurement Parameters 4.2.1 Adjust Distance The distance between the camera and the observation target affects the accuracy of the temperature results. Before temperature measurement, users should set the distance first.

  • Page 21: Set Measurement Tools

    Pocket Series User Manual Temperature Measurement 4.3 Set Measurement Tools You can set measurement tools to measure the min., max., and center temperatures of the current scene. Tap MENU, and select Tap to select a temperature measurement tool as required. Hot...

  • Page 22: Chapter 5 Set Alarms

    Pocket Series User Manual Display Settings CHAPTER 5 SET ALARMS When the temperature of targets triggers the set high alarm rule, the device will perform configured actions, such as making audible warning and flashing alarm. For models with scene mode: Select a scene mode via >...

  • Page 23: Chapter 6 Display Settings

    Pocket Series User Manual Display Settings CHAPTER 6 DISPLAY SETTINGS 6.1 Set Screen Brightness Go to Local Settings > Display Settings > Screen Brightness to adjust the screen brightness. Or tap , and drag it to adjust the screen brightness.
  • Page 24 Pocket Series User Manual Display Settings Image Mode Description Example In thermal mode, the device displays Thermal the thermal view. Thermal object image with visual Fusion outlines. In PIP (Picture in Picture) mode, the device displays thermal view inside the visual view. You can adjust the size, distance and digital zoom of the PIP.

  • Page 25: Adjust Level & Span

    Pocket Series User Manual Display Settings Tap BACK to exit. 6.5 Adjust Level & Span Set a display temperature range and the palette only works for targets within the range. You can adjust the display temperature range. Before You Start Choose an appropriate palette.
  • Page 26 Pocket Series User Manual Display Settings Parameters: Temperature measurement parameters, for example, target emissivity,  temperature unit, etc. Brand Logo: The brand logo is a manufacturer logo overlapped on images.  Temperature Scale: Display the palettes bar and temperature range on the left side of ...
  • Page 27 Pocket Series User Manual Picture and Video CHAPTER 7 SET MACRO MODE In the macro mode, you can focus extremely close on a very small object, and the object appears much larger in the view (and in the final image) compared to the standard lens.

  • Page 28: Chapter 7 Picture And Video

    Pocket Series User Manual Picture and Video CHAPTER 8 PICTURE AND VIDEO The device can record videos and capture snapshots. The files are saved in the local albums. The device does not support capturing or recording when the menu is shown.

  • Page 29: Record Video

    Pocket Series User Manual Picture and Video Parameters Description Set the naming rule for the saved files. The default image naming is filename header saving time . Filename Header is configurable. Filename Header Saving time is the device system time when the saving occurs.

  • Page 30: View Files

    Pocket Series User Manual Picture and Video to finish. The newly created album becomes the default NOTE saving album and appears at the top of the album list. to enter Albums. Select the album to rename. , and select Rename. A soft keyboard is Rename an Album displayed.

  • Page 31: Manage Files

    Pocket Series User Manual Picture and Video For more information, contained in capture snapshots or videos, you can download  and install the PC analyzing tool to analyze them. 8.5 Manage Files You can move, delete, edit the recorded files, and add text notes to the files.

  • Page 32: Export Files

    8.6 Export Files 8.6.1 Export via HIKMICRO Viewer (If Applicable) 9.2 Connect Device to Launch HIKMICRO Viewer and add the device. Refer to HIKMICRO Viewer. Select On-Device Files on the app to access the on-device albums. Select a file, and tap Download to save to your local albums.

  • Page 33: Chapter 8 Device Connections

    See the user manual of HIKMICRO Analyzer client for specific connection and more operations. 9.2 Connect Device to HIKMICRO Viewer Connect the device to HIKMICRO Viewer via hotspot or Wi-Fi, and users can view image, capture snapshot, and record videos on mobile phones. 9.2.1 Connection via Wi-Fi (If Applicable) Before You Start Scan the QR code below to download and install HIKMICRO Viewer on your phone.

  • Page 34: Connection Via Hotspot (If Applicable)

    Tap Join in the pop-up window on your phone to confirm the settings. 9.2.2 Connection via Hotspot (If Applicable) Before You Start Scan the QR code below to download and install HIKMICRO Viewer on your phone. Android In live view, tap and go to Connections >...
  • Page 35 Using hotspot QR code:  Launch HIKMICRO Viewer, and tap + > Scan QR Code. Aim the phone camera at the QR code of the device hotspot. Tap Join > Connect in the pop-up window on your phone to confirm the settings.

  • Page 36: Chapter 9 System Settings

    Pocket Series User Manual System Settings CHAPTER 10 SYSTEM SETTINGS 10.1 Set Time and Date Go to Local Settings > Device Settings > Time and Date. Set the date and time. to save and exit. Go to Local Settings > Display Settings to turn on/off time and date display.

  • Page 37: Chapter 10 Maintenance

    Local Settings > Device Settings > About. 11.2.2 Upgrade Device via HIKMICRO Viewer Before You Start Make sure that you have installed HIKMICRO Viewer on your phone. Please see Connect Device to HIKMICRO Viewer for instruction. Launch HIKMICRO Viewer on your phone.

  • Page 38: Save Operation Logs

    Pocket Series User Manual Maintenance 11.4 Save Operation logs The device can collect its operation logs and save in the storage only for troubleshooting. You can turn on/off this function in Local Settings > Device Settings > Save Logs. You can connect the camera to PC using the supplied USB cable, and select USB Drive as the USB mode on camera to export the operation logs (.log) in the root directory of the...

  • Page 39: Chapter 11 Faq

    Pocket Series User Manual CHAPTER 12 Scan the following QR code to get device common frequently asked questions.

  • Page 40: Legal Information

    The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO http://www.hikmicrotech.com...
  • Page 41 Pocket Series User Manual Legal Information WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF...

  • Page 42: Regulatory Information

    Pocket Series User Manual Legal Information REGULATORY INFORMATION These clauses apply only to the products bearing the corresponding mark or information. FCC Information Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 43 Pocket Series User Manual Legal Information Ireland (IE), Italy (IT), Latvia (LV), Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Northern Ireland (UK(NI)), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovakia (SK), Slovenia (SI), Spain (ES), Sweden (SE), Switzerland (CH), and Turkey (TR).
  • Page 44 Pocket Series User Manual Legal Information (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
  • Page 45 Pocket Series User Manual Legal Information INFORMATIONEN FÜ R PRIVATE HAUSHALTE 1. Getrennte Erfassung von Altgeräten: Elektro- und Elektronikgeräte, die zu Abfall geworden sind, werden als Altgeräte bezeichnet. Besitzer von Altgeräten haben diese einer vom unsortierten Siedlungsabfall getrennten Erfassung zuzufü hren. Altgeräte gehö ren insbesondere nicht in den Hausmü ll, sondern in spezielle Sammel- und Rü...
  • Page 46 Pocket Series User Manual Legal Information Altgeräte enthalten hä ufig sensible personenbezogene Daten. Dies gilt insbesondere fü r Geräte der Informations- und Telekommunikationstechnik wie Computer und Smartphones. Bitte beachten Sie in Ihrem eigenen Interesse, dass fü r die Lö schung der Daten auf den zu entsorgenden Altgeräten jeder Endnutzer selbst verantwortlich ist.
