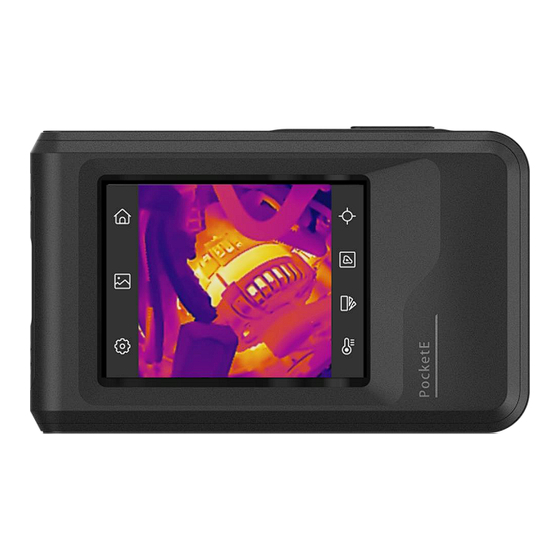

  • Page 1 Thermal Camera PocketE User Manual Contact Us...
  • Page 2 Technical Support https://www.hikmicrotech.com/en/contact-us.html portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Calibration Service We recommend you send the device back for calibration once a year, and please contact the local dealer for the information on maintenance points.
  • Page 3 PocketE User Manual Safety Instruction For long-term storage of the battery, make sure it is fully charged every half year to  ensure the battery quality. Otherwise, damage may occur. Use the battery provided by a qualified manufacturer. Refer to the product specification ...
  • Page 4 PocketE User Manual Safety Instruction Symbol Description Indicates a hazardous situation which, if not avoided, will or Danger could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance Caution degradation, or unexpected results.

  • Page 5: Table Of Contents

    PocketE User Manual Contents CONTENTS Chapter 1 Overview ......................1 1.1 Important Notice to User ....................1 1.2 Device Description ......................1 1.3 Main Function ......................... 1 1.4 Appearance ........................2 Chapter 2 Preparation ..................... 4 2.1 Charge Device ......................... 4 2.2 Power On/Off ........................
  • Page 6 5.4 View Recorded Files ..................... 15 5.5 Manage Files ......................... 15 5.6 Export Files ........................16 5.6.1 Export via HIKMICRO Viewer ................16 5.6.2 Export via PC ...................... 17 Chapter 6 Device Connections..................18 6.1 Cast Device Screen to PC .................... 18 6.2 Connect Device to Wi-Fi ....................

  • Page 7: Chapter 1 Overview

    PocketE User Manual Overview CHAPTER 1 OVERVIEW 1.1 Important Notice to User This manual describes and explains the features for multiple camera models. Because the camera models of a series have different features, this manual may contain descriptions and explanations that do not apply to your particular camera model.

  • Page 8: Appearance

    PocketE User Manual Overview Client Software Connection Scan the QR code to download the Download HIKMICRO Analyzer HIKMICRO Viewer App for live view, (https://www.hikmicrotech.com/en/industrial- capture snapshots, record videos, products/hikmicro-analyzer-software.html) to etc. analyze files. 1.4 Appearance No. Description Function Touch Control Screen View image and operate device with touch control.
  • Page 9 PocketE User Manual Overview No. Description Function Press to capture an image.  Capture Key Hold to start recording a video and press again to stop.  Strap Attachment Mount the wrist strap. Point Tripod Mount Mount the tripod. Indicate the charging status of the device.

  • Page 10: Chapter 2 Preparation

    PocketE User Manual Preparation CHAPTER 2 PREPARATION 2.1 Charge Device The camera is equipped with a built-in battery. It is recommended to charge the camera with the included USB cable and the Type-C interface on camera. Do not use the USB-C to USB-C cable of other manufacturers.

  • Page 11: Operation Method

    PocketE User Manual Preparation 2.3 Operation Method The device supports touch-screen control. You can tap the screen to operate the device. 2.4 Menus and Operations Live View Icon Description Return to live view interface. 5.3 Manage Enter albums to view captured images and videos. See Albums for instructions.
  • Page 12 PocketE User Manual Preparation Icon Description 6.2 Connect Device to Wi- Turn on/off Wi-Fi. For Wi-Fi configuration, see for instructions. 6.3 Set Device Turn on/off hotspot. For hotspot configuration, see Hotspot and Join for instructions. Turn on/off LED light. Switch themes, day and night are supported.

  • Page 13: Chapter 3 Display Settings

    PocketE User Manual Display Settings CHAPTER 3 DISPLAY SETTINGS 3.1 Set Screen Brightness Go to Local Settings > Device Settings > Screen Brightness to adjust the screen brightness. Or tap , and drag it to adjust the screen brightness from swipe-down menu.

  • Page 14: Set Parallax Correction

    PocketE User Manual Display Settings Image Mode Description Example Visual Visual object image only. Tap screen to exit. 3.2.1 Set Parallax Correction You should set the parallax correction after you set the image mode as Fusion, PIP, or Blending, so as to improve the thermal-visual image alignment.

  • Page 15: Adjust Level & Span

    PocketE User Manual Display Settings Rain Blue Red Fusion Red Hot Tap screen to exit. 3.4 Adjust Level & Span Set a display temperature range and the palette only works for targets within the range. You can adjust the display temperature range.

  • Page 16: Adjust Digital Zoom

    PocketE User Manual Display Settings Mode Description Example Linear mode is used to detect small high temperature targets in low temperature background. Linear color distribution enhances and Linear displays more details of high temperature targets, which is good for checking small high temperature defective areas such as cable connectors.

  • Page 17: Chapter 4 Temperature Measurement

    PocketE User Manual Temperature Measurement CHAPTER 4 TEMPERATURE MEASUREMENT The temperature measurement function provides the real-time temperature of the scene and display it on the left of your screen. 4.1 Set Temp Measurement Parameters You can set measurement parameters to improve measurement accuracy. Please set the emissivity and distance before measuring temperature.

  • Page 18: Set Temperature Alarm

    PocketE User Manual Temperature Measurement Tap screen to save and exit. The min., max., and center temperatures are displayed on the left top of the screen. NOTE Tap the tool again to delete. 4.3 Set Temperature Alarm When the temperature of targets triggers the set alarm rule, the device will perform configured actions, such as flashing the LED light.

  • Page 19: Chapter 5 Picture And Video

    PocketE User Manual Picture and Video CHAPTER 5 PICTURE AND VIDEO The device does not support capturing or recording when the menu is shown.  NOTE When the device is connected to your PC, it does not support capturing or ...

  • Page 20: Record Video

    PocketE User Manual Picture and Video What to do next 5.3 Manage Albums to enter albums to view and manage files and albums. See  5.5 Manage Files for operation instructions. You can connect your device to PC to export local files in albums for further use. See ...

  • Page 21: View Recorded Files

    PocketE User Manual Picture and Video Task Operations 1) Tap to enter Albums. Change the Default Saving 2) Select the album you want to use as the default saving Album album. 3) Tap , and select Set as Default Saving Album.

  • Page 22: Export Files

    5.6.1 Export via HIKMICRO Viewer Chapter 6 Device Connections Launch HIKMICRO Viewer and add the device. Refer to Select On-Device Files on the app to access the on-device albums. Select a file, and tap Download to save to your local albums.

  • Page 23: Export Via Pc

    PocketE User Manual Picture and Video 5.6.2 Export via PC Connect the device to your PC with the supplied USB cable, and select USB Drive mode as the USB mode in the prompt on the device. In USB Drive mode, casting screen is not supported.

  • Page 24: Chapter 6 Device Connections

    PocketE User Manual Device Connections CHAPTER 6 DEVICE CONNECTIONS 6.1 Cast Device Screen to PC The device supports casting screen to PC by UVC protocol-based client software or player. You can connect the device to your PC via the supplied USB cable, and cast the real-time live view of the device to your PC.

  • Page 25: Set Device Hotspot And Join

    4) Enable the Wi-Fi function of other equipment and search the device hotspot to join. Using hotspot QR code: Scan the QR code with  HIKMICRO Viewer to join the hotspot. DO NOT tap space in your password, or the password may be incorrect.  NOTE The password should at least contain 8 digits, consisting of numbers and ...

  • Page 26: Chapter 7 Mobile Client Connection

    PocketE User Manual Mobile Client Connection CHAPTER 7 MOBILE CLIENT CONNECTION The device supports both Wi-Fi connection and hotspot. Connect the device to HIKMICRO Viewer, and you can control the device via mobile client. 7.1 Connect via Wi-Fi Before You Start Download and install HIKMICRO Viewer on your phone.
  • Page 27 PocketE User Manual Mobile Client Connection Launch the app and follow the startup wizard to create, and register an account. Search and add the device to the mobile client. For detailed instructions about adding the camera to the mobile application, please NOTE refer to the user manual embedded in the application.

  • Page 28: Chapter 8 Maintenance

    PocketE User Manual Maintenance CHAPTER 8 MAINTENANCE 8.1 View Device Information Go to Local Settings > Device Settings > Device Information to view the device information. 8.2 Set Date and Time Go to Local Settings > Device Settings > Time and Date.

  • Page 29: Save Operation Logs

    PocketE User Manual Maintenance 8.5 Save Operation logs The device can collect its operation logs and save in the storage only for troubleshooting. You can turn on/off this function in Local Settings > Device Settings > Save Logs. You can connect the camera to PC using the supplied USB cable, and select USB Drive as the USB mode on camera to export the operation logs (.log files) in the root directory of...

  • Page 30: Chapter 9 Faq

    PocketE User Manual CHAPTER 9 Scan the following QR code to get device common FAQ.
  • Page 31 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO http://www.hikmicrotech.com...
  • Page 32 PocketE User Manual Legal Information SECURITY RISKS, AND HIKMICRO SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKMICRO WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
  • Page 33 PocketE User Manual Regulatory Information REGULATORY INFORMATION These clauses apply only to the products bearing the corresponding mark or information. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD), Directive 2014/35/EU (LVD), Directive 2011/65/EU (RoHS).
  • Page 34 PocketE User Manual Regulatory Information mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info Industry Canada ICES-003 Compliance This device meets the CAN ICES-003 (B)/NMB-003 (B) standards requirements.
  • Page 35 PocketE User Manual Regulatory Information INFORMATIONEN FÜ R PRIVATE HAUSHALTE 1. Getrennte Erfassung von Altgeräten: Elektro- und Elektronikgeräte, die zu Abfall geworden sind, werden als Altgeräte bezeichnet. Besitzer von Altgeräten haben diese einer vom unsortierten Siedlungsabfall getrennten Erfassung zuzufü hren. Altgeräte gehö ren insbesondere nicht in den Hausmü ll, sondern in spezielle Sammel- und Rü...
