Recommendations for CCF Pocket 2 Borrowers

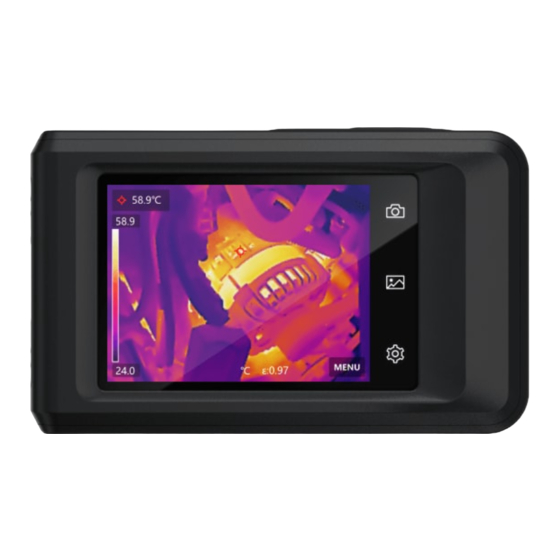

Thermal Camera
POCKET
User Manual
V5.5.61
Contact Us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pocket Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hikmicro Pocket Series

Summary of Contents for Hikmicro Pocket Series

  • Page 1 Recommendations for CCF Pocket 2 Borrowers Thermal Camera POCKET User Manual V5.5.61 Contact Us...

  • Page 2: Safety Instruction

    Technical Support https://www.hikmicrotech.com/en/contact-us.html portal will help you as a HIKMICRO customer to get the most out of your HIKMICRO products. The portal gives you access to our support team, software and documentation, service contacts, etc. Calibration Service We recommend you send the device back for calibration once a year, and please contact the local dealer for the information on maintenance points.

  • Page 3: Power Supply

    Pocket Series User Manual Safety Instruction In the first use, charge the device for more than 2.5 hours in the power-off status.  The lithium battery voltage is 3.85 V, and the battery capacity is 2100 mAh.  The battery is certified by UL2054.

  • Page 4: Symbol Conventions

    Pocket Series User Manual Safety Instruction The device is suitable for indoor and outdoor uses, but do not expose it in wet  conditions. The level of protection is IP 54.  The pollution degree is 2.  Symbol Conventions The symbols that may be found in this document are defined as follows.

  • Page 5: Table Of Contents

    Pocket Series User Manual Contents CONTENTS Chapter 1 Overview ......................1 1.1 Important Notice to User ....................1 1.2 Device Description ......................1 1.3 Main Function ......................... 1 1.4 Appearance ........................2 Chapter 2 Preparation ..................... 4 2.1 Charge Device ......................... 4 2.2 Power On/Off ........................
  • Page 6 5.4 View Recorded Files ..................... 16 5.5 Manage Files ......................... 17 5.6 Export Files ........................18 5.6.1 Export via HIKMICRO Viewer (If Applicable) ........... 18 5.6.2 Export via PC ...................... 18 Chapter 6 Device Connections..................19 6.1 Pair Bluetooth Devices ....................19 6.2 Cast Device Screen to PC ....................
  • Page 7 Pocket Series User Manual Contents 9.3 Restore Device ......................25 9.4 Save Operation logs ..................... 25 9.5 Format Storage ......................26 9.6 About Calibration ......................26 Chapter 10 FAQ ......................27 10.1 Frequently Asked Questions (FAQ) ................27...

  • Page 8: Chapter 1 Overview

    Pocket Series User Manual Overview CHAPTER 1 OVERVIEW 1.1 Important Notice to User This manual describes and explains the features for multiple camera models. Because the camera models of a series have different features, this manual may contain descriptions and explanations that do not apply to your particular camera model.

  • Page 9: Appearance

    Pocket Series User Manual Overview display the real-time SuperIR image in live view. Client Software Connection (If Applicable) If your particular model supports Wi- Download HIKMICRO Analyzer Fi and Hotspot, scan the QR code to (https://www.hikmicrotech.com/en/industrial- download the HIKMICRO Viewer App products/hikmicro-analyzer-software.html) to...
  • Page 10 Pocket Series User Manual Overview Description Function Home Key Tap to return to the live view interface. File Key Tap to enter albums. Settings Key Tap to enter settings interface. Flash Light Fill light on objects and output flashing alarm.

  • Page 11: Chapter 2 Preparation

    Pocket Series User Manual Display Settings CHAPTER 2 PREPARATION 2.1 Charge Device The camera is equipped with a built-in battery. It is recommended to charge the camera with the included USB cable in the package and the Type-C interface on camera. Do not use the USB-C to USB-C cable of other manufacturers.

  • Page 12: Operation Method

    2.4 Menu Description Live View Measurement Tools Live View Temperature Albums Range Local Settings MENU Emissivity Distance Swipe-down Menu These 3 only needed with Hikmicro Software WLAN Bluetooth Hotspot Flashlight Day/Night Auto- Recommended Mode Rotation Screen Brightness Slider Adjust, as needed...

  • Page 13: Chapter 3 Display Settings

    Pocket Series User Manual Display Settings CHAPTER 3 DISPLAY SETTINGS 3.1 Set Screen Brightness Adjust to Suit ambient brightness Go to Local Settings > Device Settings > Screen Brightness to adjust the screen brightness. Or tap , and drag it to adjust the screen brightness.

  • Page 14: Set Parallax Correction

    Pocket Series User Manual Display Settings Image Mode Description Example Thermal object image with visual outlines. Adjust Parallax Correction Fusion in live view to improve image Recommended alignment. Distance' In PIP (Picture in Picture) mode, the device displays thermal view inside the visual view.

  • Page 15: Set Palettes

    Pocket Series User Manual Display Settings 3.4 Set Palettes The palettes allow you to select the desired colors. Tap MENU, and select One of these 2 recommended Tap the icons to select a palette. Black Hot White Hot Rainbow Ironbow...

  • Page 16: Color Distribution

    Pocket Series User Manual Display Settings 3.6 Color Distribution Color distribution function provides different image display effects in auto level & span. Linear and histogram color distribution modes can be selected for different application scenes. Go to Local Settings > Temp Measurement Settings >Color Distribution.

  • Page 17: Display On-Screen Info

    Pocket Series User Manual Display Settings 3.8 Display On-Screen Info Only if specially needed Go to Local Settings > Display Settings to enable the information on-screen display. Time and Date: Device time and date.  Parameters: Temperature measurement parameters, for example, target emissivity, ...

  • Page 18: Chapter 4 Temperature Measurement

    Pocket Series User Manual Temperature Measurement CHAPTER 4 TEMPERATURE MEASUREMENT The temperature measurement function provides the real-time temperature of the scene. The device displays the measurement results on the left of your screen. This function is turned on by default.

  • Page 19: Set Temperature Alarm

    Pocket Series User Manual Temperature Measurement The min., max., and center temperatures are displayed on the left top of the screen. NOTE Tap the tool again to delete. 4.3 Set Temperature Alarm Only IF you need it When the temperature of targets triggers the set alarm rule, the device will perform configured actions, such as making audible warning and flash alarm.

  • Page 20: Chapter 5 Picture And Video

    Pocket Series User Manual Picture and Video CHAPTER 5 PICTURE AND VIDEO The device can record videos and capture snapshots. The files are saved in the local albums. The device does not support capturing or recording when the menu is shown.

  • Page 21: Record Video

    Pocket Series User Manual Picture and Video Parameters Description Set the naming rule for the saved files. The default image naming is filename header + saving time. Filename Header is configurable. Filename Header Saving time is the device system time when the saving occurs.

  • Page 22: View Recorded Files

    Pocket Series User Manual Picture and Video Task Operations 1) Tap to enter Albums. Create a New Album 2) Tap to add a new album. 3) A soft keyboard is displayed, where you can enter the name of the album by touching the screen.

  • Page 23: Manage Files

    Pocket Series User Manual Picture and Video Files are arranged in chronological order, with the most recent at the top. If you  NOTE fails to find the most recently taken snapshots or videos, please check the time and date settings of your device. See 8.2 Set Time and Date for instructions. When you...

  • Page 24: Export Files

    5.6.1 Export via HIKMICRO Viewer (If Applicable) Probably not Chapter 7 Mobile Client Launch HIKMICRO Viewer and add the device. Refer to Connection Select On-Device Files on the app to access the on-device albums. Select a file, and tap Download to save to your local albums.

  • Page 25: Chapter 6 Device Connections

    Pocket Series User Manual Device Connections CHAPTER 6 DEVICE CONNECTIONS You probably don't need any of these - 6.x 6.1 Pair Bluetooth Devices You can record and hear the sound contained in the videos via Bluetooth headsets, after pairing successfully.

  • Page 26: Set Device Hotspot And Join (If Applicable)

    4) Enable the Wi-Fi function of other equipment and search the device hotspot to join. Using hotspot QR code: Scan the QR code with  HIKMICRO Viewer to join the hotspot. NOTE DO NOT tap space in your password, or the password may be incorrect. ...

  • Page 27: Chapter 7 Mobile Client Connection

    MOBILE CLIENT CONNECTION This is entirely optional - 7.x For the camera models that support both Wi-Fi and hotspot, connect the camera to HIKMICRO Viewer, and you can control the device via mobile application. Download from https://www.hikmicrotech.com/en/industrial-products/hikmicro-viewer-software 7.1 Connect via Wi-Fi Before You Start Download and install HIKMICRO Viewer on your phone.
  • Page 28 Pocket Series User Manual Mobile Client Connection Connect your phone to the hotspot of the device. Launch the app and follow the startup wizard to create, and register an account. Search and add the device to the mobile client. For detailed instructions about adding the camera to the mobile application, please NOTE refer to the user manual embedded in the application.

  • Page 29: Chapter 8 System Settings

    Pocket Series User Manual System Settings CHAPTER 8 SYSTEM SETTINGS 8.1 Set Macro Mode This needs a special lens In the macro mode, you can focus extremely close on a very small object, and the object appears much larger in the view (and in the final image) compared to the standard lens.

  • Page 30: Set Auto-Rotation

    Pocket Series User Manual System Settings 8.5 Set Auto-Rotation Recommended Turn on auto-rotation in swipe-down menu. Or go to Local Settings > Device Settings > Auto-Rotation to turn on this function.

  • Page 31: Chapter 9 Maintenance

    Pocket Series User Manual Maintenance CHAPTER 9 MAINTENANCE 9.1 View Device Information Go to Local Settings > Device Settings > Device Information to view the device information. 9.2 Upgrade Device Please don't, unless asked to Before You Start Please download the upgrade file from the official website ...

  • Page 32: Format Storage

    Pocket Series User Manual Maintenance 9.5 Format Storage Shouldn't be needed Format storage before first use of it. , and go to Device Settings > Device Initialization> Format Storage to initialize the device memory. 9.6 About Calibration We recommend you send the device back for calibration once a year, and please contact the local dealer for the information on maintenance points.

  • Page 33: Chapter 10 Faq

    Pocket Series User Manual CHAPTER 10 10.1 Frequently Asked Questions (FAQ) Scan the following QR code to get device common FAQ.
  • Page 34 HIKMICRO Thermography support@hikmicrotech.com HIKMICRO Thermography hikmicro_thermography HIKMICRO https://www.hikmicrotech.com/ UD36708B...

This manual is also suitable for:

Pocket 2
