- Page 1 Manual de instrucciones _____________________________________ Deshumidificador AD 550 / AD 650 AD 580 / AD 680 _____________________________________ Valid: 02-2012 page 1 of 15...
- Page 2 Index Illustration 1.1. View from the rear 1.2. View from the front AD 550 / AD 580 1.3. View from the front AD 650 / AD 680 General advice Mode of functioning Safety 5 - 6 Installation and transport Operation 6.1.
- Page 3 Balance for bucket (bucket is not shown) Main cable (in cable keeping space) 1.2 View from the front AD 550 / AD 580 Operation panel (see Pt. 5.3) Grip to move Ventilation slot f. Front panel (air...
-
Page 4: General Advice
AD 680= D 250 2. General advice You have bought an air dryer made by AERIAL thus deciding for a proven quality product "Made in Germany". If there are any questions, you will find some advice in this manual how to eliminate such difficulties as quickly as possible. -
Page 5: Mode Of Functioning
3. Mode of functioning The AD-air dryer is built particularly for air drying in closed rooms. That dehumidifier can prevent the formation of condensation, eliminate too high air humidity and hold a specific air humidity constant. The time which the dryer requires in order to achieve a specific humidity depends essentially on the environmental conditions. -
Page 6: Installation And Transport

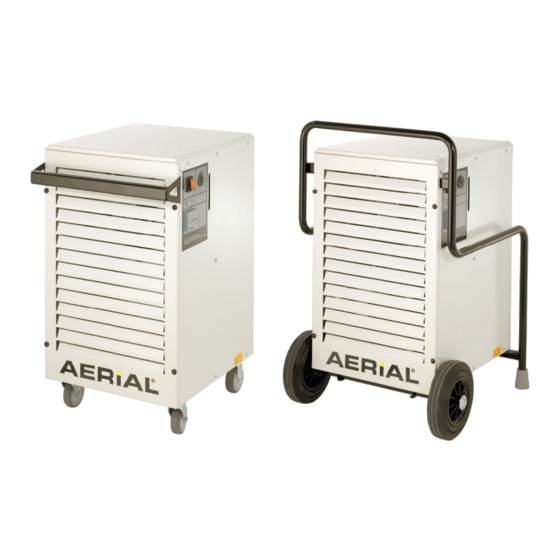

The devices AD 5xx and AD 6xx differ only concerning the transportation and setting up possibilities. Performance data are identical in each case. The AD 550 and AD 580 is equipped with four castors (D= 75mm / 100 mm) and a grip to move. -
Page 7: Operation
6.Operation 6.1 electrical connection Before connecting the air dryer, the following items must be checked: Does the mains voltage coincide with the voltage of the appliance? Adequate fusing of socket and supply system? Has a residual-current-operated circuitbreaker (r.c.c.b) been installed? If a cable drum is used: has it been unwound completely? Is the appliance connector suitable for the building socket? Is the socket provided with an earth connection? - Page 8 6.3 Operation panel On-/Off-switch Hygrostat (see Pt. 6.4) neon: tank full Operation time counter ATTENTION: Make sure that the ventilation slot next to the operation panel is free and not covered. The air must be able to flow through this slid. 6.4 Hygrostat control The air dryers of the AD-series dispose of a hygrostat for setting the required humidity value.
- Page 9 The dehumidifiers AD are serially equipped with water collecting bucket (AD 550 / AD 650 = 12 ltr / AD 580 / AD 680 = 16 ltr) and hose connector 12 x 2 The water bucket is in the device on a balance. The balance is activated by the weight of the full bucket and the device is switched off.
- Page 10 6.6 Pump-out-kit (optional extra) Optionally for AD 550 / 650 / 580 / 680 a pump-out-kit is deliverable. You can buy the “pump-out-kit” from your AERIAL-dealer as an optional extra. The pump out kit can be installed with few handles completely simply and removed again when desired.
-
Page 11: Operating Conditions
During air drying, ice may form at the evaporator. The volume of ice depends on the ambient conditions prevailing in the room to be dried. The AD 550/650/580/680 is equipped with an automatic hot-gas defrosting. It ensures that, depending on the extent of ice formation, the appliance will be... -
Page 12: Technical Data
Operational range: +3° C up to + 32° C / 40% r.h. up to 95% r.h. Protection class: IP X4 Voltage: 230 V / 50 Hz Type AD 550 AD 650 AD 580 AD 680 Air volume cbm/h Power Max. Watt... -
Page 13: Service And Maintenance
(front/top-panel). Check hose connector and connected hose Clean case with moist cloth. Do not use aggressive detergent Insert new or cleaned filter. Use only original AERIAL-filter for problemfree working. Insert filter holder Put plug into socket... - Page 14 If you have any questions regarding defects and malfunctions of AERIAL-air dryers we recommend get in touch with your supplier. The producer AERIAL GmbH you reach under 0049-40-526879-0 or www.aerial.de 11.
- Page 15 AERIAL GmbH - Systeme zur Luftbehandlung Oststraße 128, D-22844 Norderstedt Product description: dehumidifier type AD 550 / AD 650 dehumidifier type AD 580 / AD 680 capacity: 54,0 l/Day / 78,0 l/day The product described above is an ambient air dryer ready for connection.
