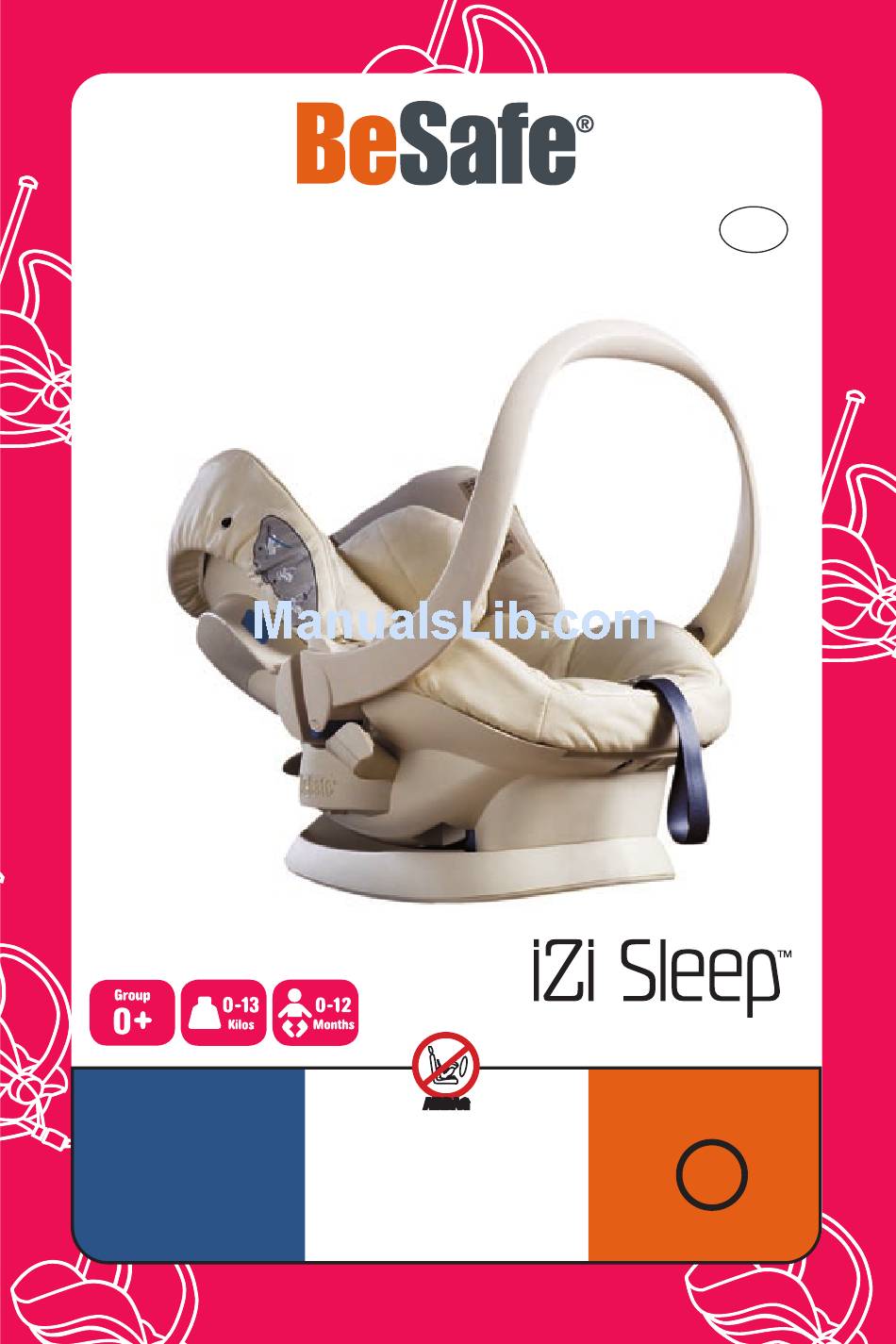

- Page 1 User manual www.besafe.eu Complies with revised ECE R44/04 AIRBAG standard: universal 0-13 kg EXTREME HAZARD: Do not use on ECE R44/04 passenger seats fitted Tested and Approved with activated airbag 04443548...
- Page 2 Thank you for choosing BeSafe iZi Sleep It is important that you read this user manual BEFORE installing your iZi Sleep. Incorrect installation could endanger your child. Safety and convenience As you and we know, safety comes first when children are involved.
- Page 3 Always check the handle is upright and locked properly before carrying. Be aware of the ‘safe-to- drive‘ indication. Sleeping chair Seat placed on top of a range of strollers (see www.besafe.eu) DO NOT use the seat in sleeping position when installed in your car.
-
Page 4: Table Of Contents
Contents Vital information Preparing to install Installation in the car Removing the iZi Sleep from the car Sleeping position After an accident Guarantee Removing and refitting the cover Using the iZi Sleep with a stroller Warning: Potential misuse Important advice Point of sale information Vital information EXTREME HAZARD - DO NOT use on a passenger... - Page 5 Second-hand car seats BeSafe advices that child seats should not be bought or sold second-hand. Many seats sold through local advertising and car-boot sales have been found to be dangerous. Important: Correct seat belts iZi Sleep is only approved with 3-point-belt installation.
-
Page 6: Preparing To Install
Preparing to install Crucial parts 1 Sun canopy 2 ‘safe-to-drive’ indication 3 Handle release buttons 4 Internal harness 5 Harness buckle 6 Central adjuster 7 Crotch belt 8 Carrying handle (also tensioner) 9 Upper cover 10 Shoulder belt guide 11 Lower cover 12 Belt slot 13 Shoulder belt guide 14 Base... - Page 7 Fitting your child in the iZi Sleep Position of the shoulder belt: Check that the shoulder belt slots (17) are level with your child’s shoulders. Too high Too low Correct Adjusting the schoulder belts: Open the storage compartment (19) on the back of the iZi Sleep. Detach the shoulder belt adjuster (18), and place it in the correct position by supporting the belt from the inside.
-
Page 8: Installation In The Car
Installation in the car The iZi Sleep can only be used with a 3-point-belt. Rear facing installation only. CHECK the ‘safe-to-drive-indication’ EXTREME HAZARD - DO NOT use on a passenger seat fitted with activated airbag. AIRBAG Make sure the iZi Sleep is placed in rear facing position. Make sure the carrying handle (8) is in the carrying position. - Page 9 Make sure the lap belt of the 3-point-belt is placed between base (14) and lower seat shell. Pull the 3-point-belt through the shoulder belt guide (10) and belt slot (12), only at the buckle side. Follow the blue indications on the seat.Tighten the 3-point-belt firmly around the iZi Sleep.
-
Page 10: Removing The Izi Sleep From The Car
Removing the iZi Sleep from the car Push the handle release buttons (3) and move the handle into carrying position. Then, release the 3-point-belt from the release the 3-point-belt from the buckle and remove the belt from the belt guide. Sleeping position DO NOT use the seat in sleeping position when installed in your car. -
Page 11: Guarantee
Guarantee All BeSafe products are carefully designed, manufactured and tested. All BeSafe child safety seats are tested periodically out of our continuous production in our test laboratory. Furthermore they are tested by independent test institutes. Should this product prove faulty within 24 months of... -
Page 12: Removing And Refitting The Cover
Removing and refitting the cover The cover is a safety feature. Never use the iZi Sleep without it. DO use the child safety belt provided with the iZi Sleep at all times. Removing the cover Pay attention when removing the cover, refitting is done in reverse order. - Page 13 Removing the lower cover (11): - Detach the elastic knots of the lower cover (e). - Pull the cover over the central adjuster (6). - Detach the elastics which attach the cover to the inside of the seat-part of the iZi Sleep. Refitting the cover Refit the cover, using the instructions above in reversed order.
-
Page 14: Using The Izi Sleep With A Stroller
Using the iZi Sleep with a stroller The iZi Sleep can be installed on a range of strollers. For a complete list check www.besafe.eu. Installation on a stroller Align the stroller adapter house (15) above the adapter on the stroller and move straight down, ‘click’. - Page 15 Removing from a stroller Move the carrying handle (8) into carrying position. Push the stroller adapter handle (16) upwards and lift the iZi Sleep vertically from the stroller.
-
Page 16: Warning: Potential Misuse
Warning: Potential misuse Forward facing is forbidden. Reclined position in car is forbidden. “safe-to-drive” indication = red Carrying handle (8) in carrying position is forbidden. “safe-to-drive” indication = red... - Page 17 Active airbag is forbidden. AIRBAG Correct installation Shoulder belt only at buckle side in belt slot (12).
-
Page 18: Important Advice
Important advice DO use the child safety belt provided with the iZi Sleep at all times. Be aware of the ‘safe-to-drive’ indication. Make sure both 3-point-belt and child safety belt are tightened firmly, in order to prevent any unwanted dislocation of child or iZi Sleep. Check frequently. DO NOT use anything, such as a cushion or coat, to raise the iZi Sleep off the passenger seat. - Page 19 DO keep this user manual in the pocket on the back of the seat. DO NOT attempt to dismantle, modify or add to any part to the iZi Sleep or change the way your car seatbelts are made or used. Warranty will expire if non-original parts or accessories are used.
-
Page 20: Point Of Sale Information
EXTREME HAZARD - DO NOT use on a passenger seat fitted with activated airbags. AIRBAG DO NOT use the seat in sleeping position when installed in your car. For more information: N-3535 Krøderen, Norway www.besafe.eu 2007 - v8.0...
