  • Page 1 TECHNICAL SERVICES ELITE SERIES SURGICAL TABLES OPERATORS MANUAL MODEL 6000/6001 INCLUDING BATTERY MODELS...
  • Page 2 SKYTRON STANDARD LIMITED WARRANTY SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables) to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Title Page SPECIAL USER ATTENTION ........................1 SECTION I INTRODUCTION ........................2 1-1. General............................2 1-2. Power Requirements ........................2 1-3. Pendant Control Unit ........................3 1-4. Floor Lock/Brake System ......................3 SECTION II BATTERY TABLE OPERATION ..................4 2-1.

  • Page 4: Special User Attention

    SPECIAL USER ATTENTION The extreme positioning capabilities of the 6000 WARNING Series Table requires special attention for possible DO NOT unlock brakes when a patient is on the interference points when using multiple function table. An uneven patient weight load may cause positioning.

  • Page 5: Section I Introduction

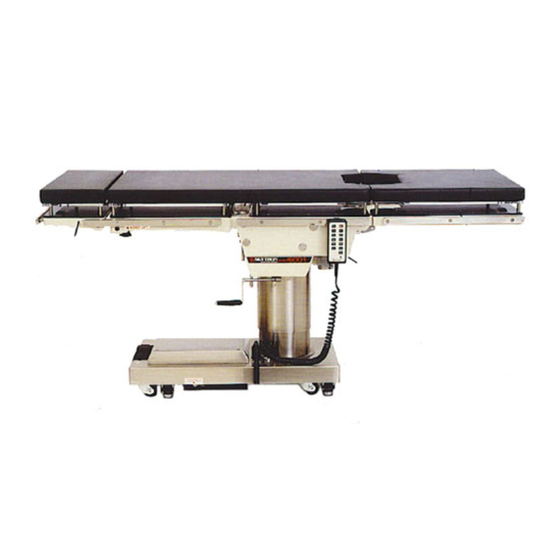

    MODEL 6001(K) Figure 1-1. Elite 6000/6001(K) 1-1. General 1-2. Power Requirements SKYTRON’s Elite 6000 and 6001 Series Surgical The Elite 6000/6001 series Surgical Tables re- Tables are electro-hydraulically operated, general quire a 120VAC, 60 Hz electrical power supply. purpose surgical tables. See figure 1-1.

  • Page 6: Pendant Control Unit

    1-4. Floor Lock/Brake System 1-3. Pendant Control Unit The floor lock/brake system consists of four self- The hand-held pendant control unit (figure 1-3) has leveling, hydraulic brake cylinders which raise and a non-slip rubber cover which assures a positive support the table base off from the casters. Press grip during use.

  • Page 7: Section Ii Battery Table Operation

    SECTION II BATTERY TABLE OPERATION 2-1. AC 120V Operation NOTE •If brakes fail to set, make sure the a. Be sure the power cord is plugged into a Emergency Brake Release Lever is properly grounded, Hospital Grade, 120VAC out- tight (clockwise). let.

  • Page 8: Automatic Shut-Off

    NOTE 2-5. Emergency Back-up Controls Battery Operation must be turned OFF at the pendant control. It can not be a. The emergency back-up control switches are turned Off using the main power switch. located under the access door on the service access cover in the table base.

  • Page 9: Section Iii Operation

    SECTION III OPERATION 3-1. Electrical Power a. Floor Lock/Brake System. To activate the a. Check to be sure the power cord is plugged brakes without affecting table positioning, press into a properly grounded, Hospital Grade, 120VAC the TABLE UP button. See figure 3-3.

  • Page 10: Trendelenburg

    IMPORTANT IMPORTANT The Emergency Brake Release Valve To maximize patient safety, utilize must be closed and tightened (clock- proper restraint methods during extreme wise) before any hydraulic function will lateral tilt positioning. operate. •If the Emergency Brake Release Valve has been operated, the UNLOCK but- ton on the pendant control will have to be pressed before brakes will lock again.

  • Page 11: Elevation

    f. Elevation. To raise table top, press the h. Flex Positioning. To place the table top in TABLE UP button (figure 3-8). The table will lift a a flex position from horizontal, press the FLEX patient weight of 500 pounds up to a maximum button (figure 3-10).

  • Page 12: Pendant Control Storage

    ONLY. Do Not reverse the patient on the table without first consulting with SKYTRON. Two locking knobs are located on the inside of the leg section for Figure 3-15. 180 Degree Top Rotation...

  • Page 13: Leg Section (Elite 6000 Only)

    b. The use of the optional support rod allows the CAUTION table top to be rotated 90° from the base. See DO NOT sit on the end of the leg figure 3-16. sections as damage may result. WARNING •Make sure the TOP ROTATION LOCK HANDLE is tightened and the brakes are set before transferring the patient.

  • Page 14: Specialty Positioning

    The following preventive maintenance checks and maintenance personnel using SKYTRON autho- services are recommended to ensure the service- ability and proper operation of your SKYTRON rized replacement parts and service techniques. Surgical Table. Service instructions and parts are available from SKYTRON.
  • Page 15 5000 36th Street S.E., Grand Rapids, MI 49512 1-800-SKYTRON or 1-616-957-0500 • FAX 1-616-957-5053...
