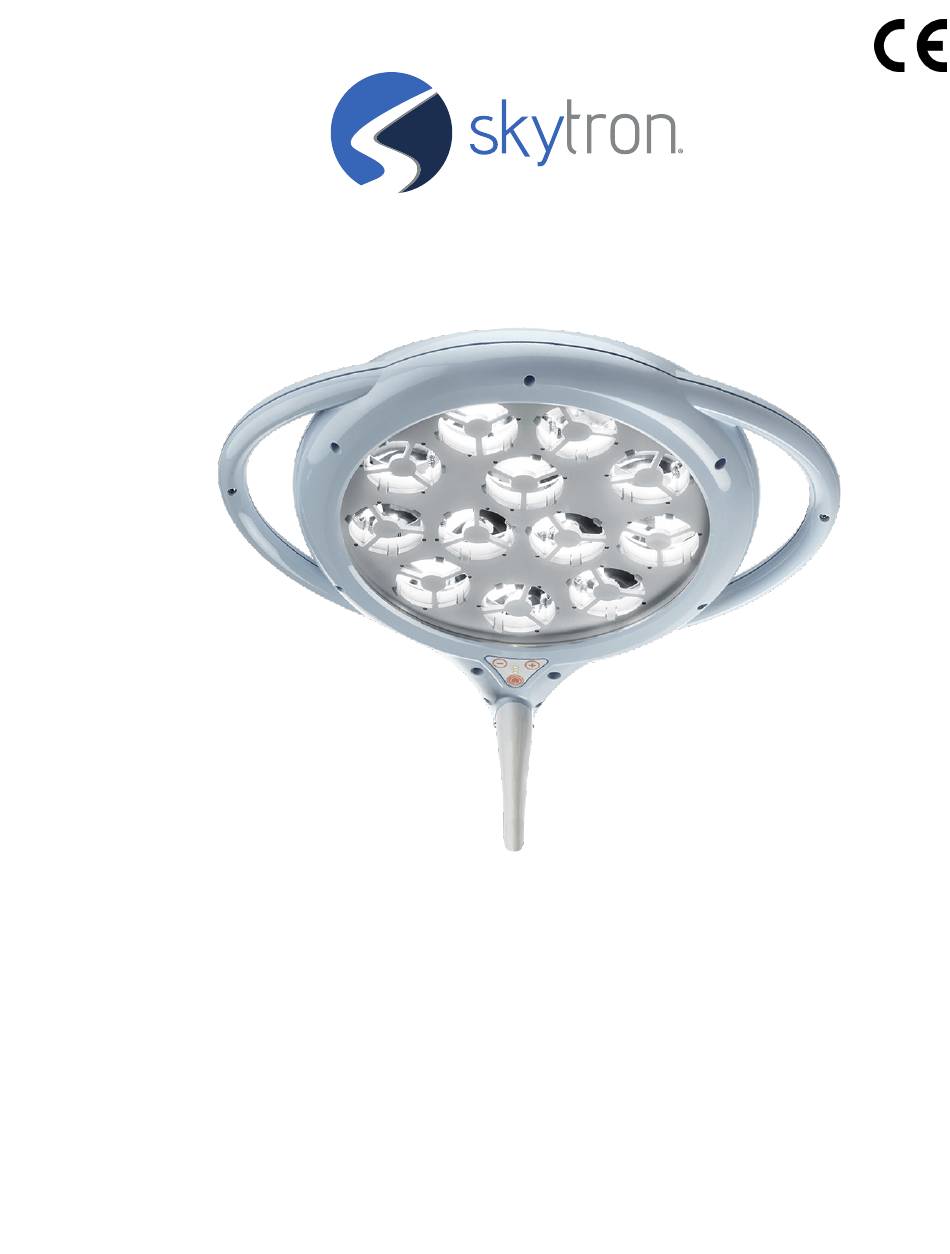

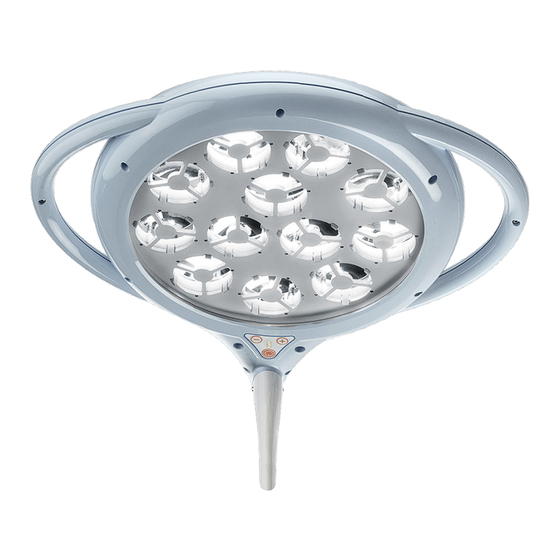

- Page 1 OWNER'S MANUAL (Includes Operation, Maintenance, Service and Parts) DoVera DE12 DE12C, DE1212C, DE12S, DE12W SERIES EXAMINATION LIGHTS Read this manual before operating this light! This information is necessary for the safe and efficient operation of the equipment. TEC-B-0231 REV0 01/09/2023...
- Page 2 SKYTRON directly at the distribution addresses listed above. Skytron disclaims all liability for any injury to persons or damage to property caused by the use or maintenance of the product by persons who are not operators or technical service personnel.
-
Page 3: Table Of Contents
Page 1 TABLE OF CONTENTS TITLE PAGE SECTION 1. SAFETY INFORMATION ................3 1-1. Special User Attention ....................3 1-2. Safety Precautions .....................3 SECTION 2. EQUIPMENT SPECIFICATIONS ...............6 2-1. Intended Use ......................6 2-2. Installation ........................6 2-3. Environmental Conditions ..................6 2-4. Certification ........................6 2-5. - Page 4 Page 2 TABLE OF CONTENTS TITLE PAGE SECTION 7. SERVICE AND ADJUSTMENTS ...............22 7-1. Radial and Spring Arm Adjustment ................22 7-1-1. Spring Arm Adjustment ..................... 22 7-1-2. Friction Adjustment ......................22 SECTION 8. REPLACEMENT PARTS ................23 SECTION 9. ELECTROMAGNETIC EMISSIONS ............24 SECTION 10.
-
Page 5: Section 1. Safety Information
SECTION 1. SAFETY INFORMATION Page 3 1-1. Special User Attention To avoid risk of electric shock, the product Initial use should not begin until after the users have must only be connected to mains supplied been instructed by the manufacturer's authorized with earth protection. - Page 6 DO NOT inoperable. Refer all service to a qualified transport over rugged or unstable flooring as SKYTRON service representative. the casters may become damaged. Use care to avoid collisions with personnel Improper use, transport procedures , or storage or equipment.
- Page 7 Any parts or assemblies not listed in this section components. must be serviced or replaced by SKYTRON authorized service personnel only. This is Clean with suitable detergents with low alkaline necessary to avoid the possibility of damage content and chlorine free.
-
Page 8: Section 2. Equipment Specifications
SECTION 2. EQUIPMENT SPECIFICATIONS Page 6 2-1. Intended Use 2-4. Certification SKYTRON DoVera DE12 Examination Lights are Certified by ETL to these standards: intended to be used by medical personnel to provide Medical electrical equipment - Part 1: General short-term, active, noninvasive, local site illumination... -
Page 9: Equipment Labels And Specifications
Page 7 2-5. Equipment Labels and Specifications DE12 W WALL MOUNT LABEL The Data Labels contain the model number, fuse type, electrical specifications, and product serial number. GRAND RAPIDS, MI 616.656.2900 DE12C SINGLE LIGHT CEILING MOUNT LABEL GRAND RAPIDS, MI 616.656.2900 DE12S MOBILE FLOOR STAND LABEL GRAND RAPIDS, MI... -
Page 10: Label Symbols
Page 8 2-6. Label Symbols Symbol Description With the word WARNING, indicates a hazardous situation that, if not avoided, could result in death or serious injury. With the word CAUTION, indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. Indicates waste disposal information. -
Page 11: Model Identification
Page 9 2-7. Model Identification MODEL DE12C CEILING MOUNT SINGLE LIGHT MODEL DE12W WALL MOUNT LIGHT MODEL DE12S MOBILE FLOOR STAND LIGHT MODEL DE1212C CEILING MOUNT DUAL LIGHT Dimensions Lamp Body Diameter 15.75 in. [40cm] Light Emission Surface 47.28 in². [305 cm²] Single ceiling 28.7 lbs. -
Page 12: Technical Properties
Page 10 2-8. Technical properties Lighthead Illumination Ec at 1 m distance ± 10% [Lux] 119,330 Color temperature (±5%) [K] 4,350 Color rendering index R a [-] >90 Light range diameter d [mm] 89.75 Light range diameter d [mm] Lighting depth L1+L2 [mm] at 60% Lighting depth L1+L2 [mm] at 20% 1500 Max irradiation [W/m²]... - Page 13 Page 11 General Data (continued) Classification of Medical Device Class I Distribution of minimum and adequate lighting (luminous flux emitted by the ME equipment does not vary by more than 20% during use; the colour temperature and the color rendering index are stable and are within the range 3000K-6700K and 85-100, respectively;...
-
Page 14: Section 3. Ceiling Mount Light
This fixture is single-point ceiling mounted with an infinitely continuous 360° rotation capability at SKYTRON DoVera Exam Lights require all electrical the ceiling mount end of the radial arm assembly connections be made by a licensed electrician in (Figure 1). -
Page 15: Operation
Page 13 ■ Ensure the light has been properly disinfected. 2. Press and hold the ON/OFF button on the control pad to turn the light fixture on (Figure 2). ■ Check for cracks, damaged or broken lens. Avoid use if such damage is evident. ON / OFF ■... -
Page 16: Section 4. Wall Mount Light
SPRING ARM ROTATION 360° Figure 4. DE12W Light Fixture 4-1. Introduction SKYTRON DoVera Exam Lights require all electrical connections are made by a licensed electrician in The lighthead consists of twelve (12) LEDs (Light accordance with state, local and national electrical Emitting Diodes). -
Page 17: Operation
Page 15 ■ Ensure the spring arm maintains its correct ON / OFF position without drift. ■ Check the operation of the intensity control on the lighthead control pad. INCREASE DECREASE 4-4. Operation LIGHT LIGHT INTENSITY INTENSITY The product has been designed to ensure a fixed light diameter without any need for adjustment. -
Page 18: Section 5. Mobile Floor Stand Light
This fixture is mounted on a portable base (Figure 7). SKYTRON DoVera portable exam lights requires a LIGHTHEAD BALANCE properly grounded 100-240VAC, 50/60Hz electrical MECHANISM SPRING ARM power supply. -
Page 19: Operation
Page 17 5-4. Operation 3. Lift the caster brake pedal with your foot to disengage the four caster brakes. The Product has been designed to ensure a fixed light diameter without any need for adjustment. CAUTION Adequate light intensity is achieved at a distance of between 2.3ft [.7m] and 4.6ft [1.4m]. -
Page 20: Sterilizable Grip
Page 18 3. Press and hold the ON/OFF button on the control 5. Press and hold the ON/OFF button on the control pad to turn the light on (Figure 8). pad to turn the light off. 6. Place the main power switch in the OFF position ON / OFF at the base. -
Page 21: Section 6. Maintenance
SECTION 6. MAINTENANCE Page 19 6-1. Cleaning and Disinfecting The lighthead exterior should be wiped down daily or between cases with a mild cleaning agent which It is good practice to maintain the appearance will not affect the painted or polycarbonate parts. and function of your DoVera lighting fixture by the ■... -
Page 22: Operator Maintenance
The DoVera lighting fixture does not utilize the lighthead control pad. internal user serviceable parts. Service must ■ Clean and disinfect according to cleaning be performed by SKYTRON authorized instructions. service technicians using SKYTRON authorized replacement parts and service techniques. -
Page 23: Preventive Maintenance
Light is 10 years under normal operating conditions. conditions. For optimal usage, safety, and longevity Service parts are available for this period. of the product, have it serviced only by a SKYTRON Please contact your SKYTRON authorized authorized service representative using SKYTRON representative for disposal of Examination Light authorized replacement parts and service techniques. -
Page 24: Section 7. Service And Adjustments
SECTION 7. SERVICE AND ADJUSTMENTS Page 22 7-1. Radial and Spring Arm Adjustment 2. Insert a 4mm pin into the holes of the ring nut and turn in the direction indicated by the arrows Only Authorized, trained technical staff are allowed to increase or decrease the load on the spring. -
Page 25: Section 8. Replacement Parts
Page 23 CAUTION DoVera examination light replacement parts listed in this section have been identified by SKYTRON as Any parts or assemblies not listed in this section serviceable by SKYTRON trained facility personnel must be serviced or replaced by SKYTRON and are available for purchase. -
Page 26: Section 9. Electromagnetic Emissions
SECTION 9. ELECTROMAGNETIC EMISSIONS Page 24 Electromagnetic Compatibility (EMC) Although this equipment conforms to the intent of the 2004/108/EC EMC Directive, all medical equipment may produce electromagnetic interference or be susceptible to electromagnetic interference. The following are guidance and manufacturer’s declarations regarding EMC for the DoVera DE12 Light. ■... - Page 27 Page 25 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The DoVera DE12 Light is intended for use in the electromagnetic environment specified below. The customer or the user of the DoVera DE12 Light should assure that it is used in such an environment. EN/IEC 60601 Immunity Test Compliance Level...
- Page 28 Page 26 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity (continued) The DoVera DE12 Light is intended for use in the electromagnetic environment specified below. The customer or the user of the DoVera DE12 Light should assure that it is used in such an environment. EN/IEC 60601-1-2 Immunity Test Compliance Level...
-
Page 29: Section 10. Revision History
SECTION 10. REVISION HISTORY Page 27 Date Revision Revision History 01/09/2023 Initial release. DOVERA DE12 OWNER'S • REV0... - Page 30 Page 28 NOTES DOVERA DE12 OWNER'S • REV0...
- Page 31 Page 29 NOTES DOVERA DE12 OWNER'S • REV0...
- Page 32 5085 Corporate Exchange Blvd. S.E. Grand Rapids, MI 49512 • 616.656.2900 • FAX 616.656.2906...
