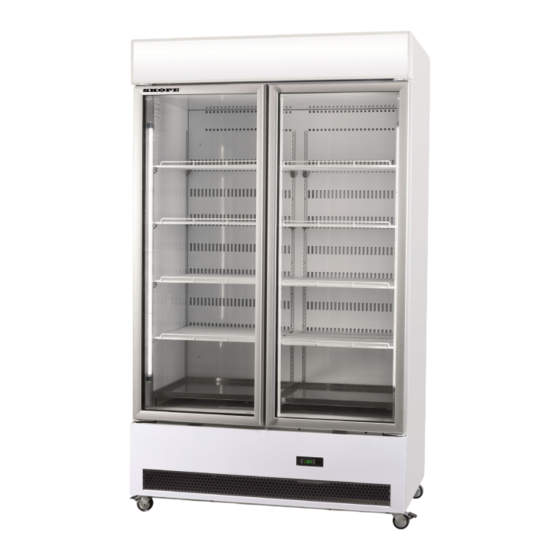

- Page 1 B1200-2/B1200G-2 SKOPE Two Door Vertical Chiller B1200-2 (no sign) G12EV/X5621 B1200G-2 (lit sign) G12EV B1200G-2...
- Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
-
Page 3: Table Of Contents
Troubleshooting......... 15 SKOPE B1200-2/B1200G-2... -
Page 4: Installation
SKOPE B1200-2/B1200G-2 Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, close supervision is necessary, especially to ensure children do not play with it. -
Page 5: Positioning The Cabinet
SKOPE B1200-2/B1200G-2 Positioning the Cabinet Chiller The location of the chiller may be the single most important decision that will Location extend its life and ensure economical, high performance. We recommend that you put the chiller in the coolest place possible because it will use less power and last longer. -
Page 6: Shelves
SKOPE B1200-2/B1200G-2 Shelves The chiller is supplied with eight wire shelves and two solid bottom stainless steel shelves. Bottom The two solid bottom shelves are fixed into place on the floor of the chiller. Shelves It is important that these shelves are always in place as they direct the interior air circulation. -
Page 7: Operation
SKOPE B1200-2/B1200G-2 Operation Automatic Start-Up After the cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity Condenser Fan The condenser fan starts when the chiller is plugged in. The lights that illuminate the top sign and cabinet interior Lighting will come on when the chiller is turned on. -
Page 8: Ems Controller Operations
SKOPE B1200-2/B1200G-2 EMS Controller Operations Introduction The Energy Management System (EMS) Advanced controller faceplate is located inside the refrigeration unit compartment, with the faceplate visible behind the front panel. The EMS Advanced controller detects variable business hours and switches the chiller to active mode approximately two hours prior to opening, and then changes to stand-by mode at close of business. -
Page 9: Faceplate
SKOPE B1200-2/B1200G-2 Faceplate Because the EMS Advanced controller plays such an important role, it’s helpful to know the parts of the faceplate you will use. Item Description DEFROST button. Manually activates an additional defrost cycle, and used to program the controller. -
Page 10: Temperature Setpoint
The chiller temperature setpoint is factory set at 1°C. If necessary the Setpoint standard setting can be adjusted between 0°C and 4.0°C. SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. -
Page 11: Messages And Alarms
SKOPE B1200-2/B1200G-2 7. Push the down button to nagivate to the parameter menu. PS will show on the display. 8. Push the set button to enter the parameter menu. 9. Push and hold the set button to scroll through the parameter menu. -
Page 12: Servicing
SKOPE B1200-2/B1200G-2 Servicing Isolating Electrics You should isolate the cabinet from the power supply before attempting any maintenance. Use the isolating switch to turn off electrics to the cabinet and refrigeration unit without unplugging the cabinet from the wall. The isolating switch is located on the right hand side of the refrigeration unit compartment. -
Page 13: Lighting
SKOPE B1200-2/B1200G-2 Lighting This chiller is designed for use with LED tubes and is not compatible with fluorescent tubes. IMPORTANT DO NOT use fluorescent tubes. Interior Light The cabinet interior is lit by two 19 Watt T8 LED tubes (Ø26mm x 1200mm), which can be replaced without moving shelves or removing product. -
Page 14: Sign Light
SKOPE B1200-2/B1200G-2 Sign Light B1200G-2 only. The sign unit is lit by one 22 Watt T8 LED tube (Ø26mm x 1200mm), which can be replaced by removing the front sign panel. To replace the sign light 1. Remove the front panel and isolate the chiller from the mains power supply (see page 12). -
Page 15: Troubleshooting
SKOPE B1200-2/B1200G-2 Troubleshooting For questions about the EMS advanced controller, see “Messages and Alarms” on page 11. For problems with the cabinet and refrigeration cassette, use the following table. Problem Possible Cause Suggestions • Cabinet not • Loss of power •... - Page 16 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
