Summary of Contents for Skope Centaur BC070-CB

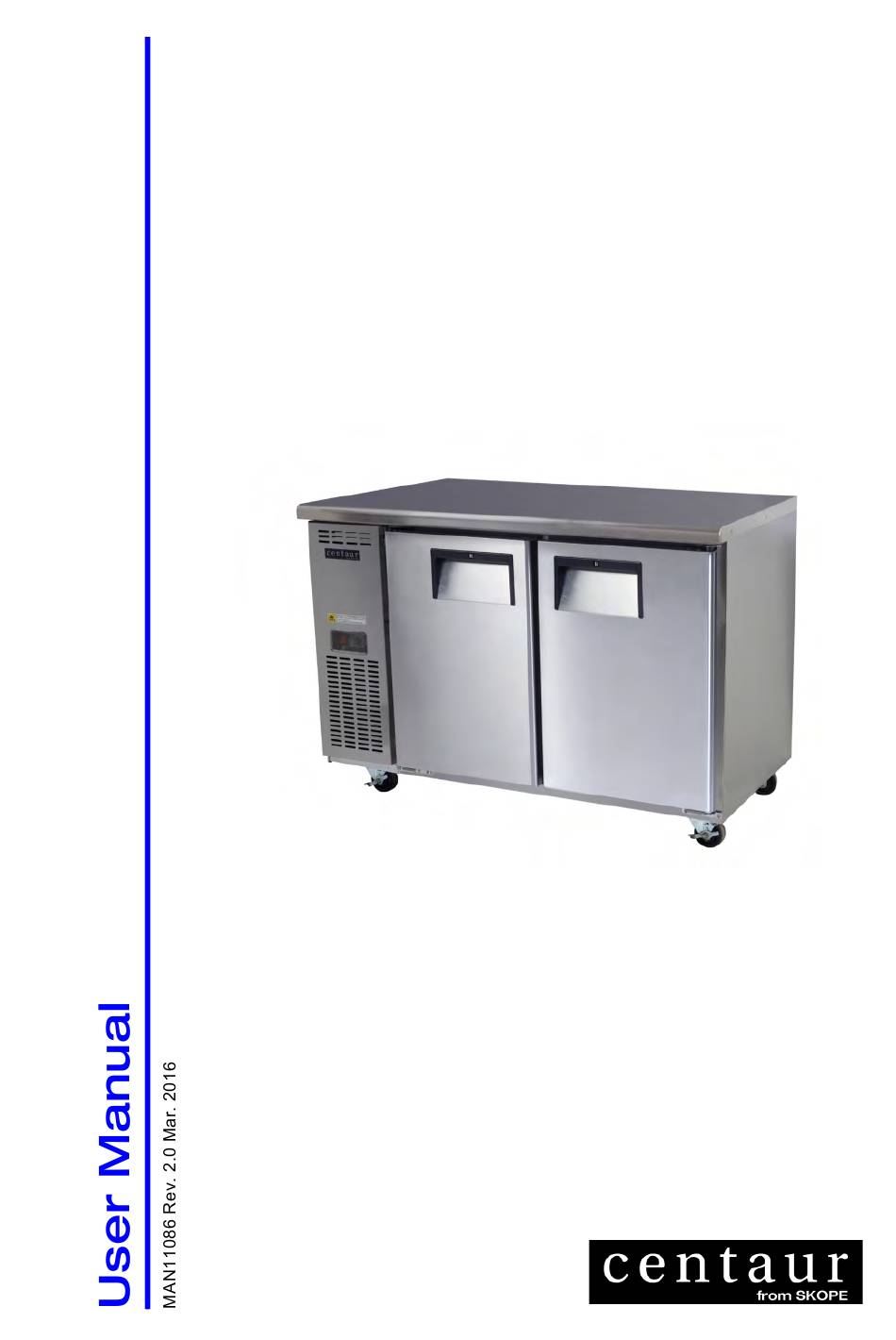

- Page 1 SKOPE Centaur Series Horizontal and Vertical Chillers and Freezers...
-
Page 2: Service And Support
For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines. -
Page 3: Table Of Contents
CONTENTS 1 Models Undercounter..........4 Sandwich. -
Page 4: Models
-23°C to -18°C up to 38°C Freezer ambient BC126 B126-2FFOS-E 2 × solid doors Chiller: 1°C to 4°C up to 38°C ambient BC126 Chiller/Freezer B126-2RFOS-E 2 × solid doors Freezer: -23°C to -18°C up to 38°C ambient SKOPE Centaur Series User Manual... -
Page 5: Installation
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Please contact SKOPE customer services for advice regarding disposal of this appliance. CAUTION Never overload the power supply, which could damage the cabinet and product. -
Page 6: Locating The Cabinet
SKOPE Centaur Series Locating the Cabinet Location When positioning the cabinet, avoid direct sunlight and warm draughts etc, and areas where the refrigeration unit could be exposed to water or moisture. The cabinet must NOT be situated where it is affected by warm or hot air from adjacent equipment, as this will compromise the airflow and performance of the cabinet. -
Page 7: Positioning The Cabinet
SKOPE Centaur Series Positioning the Cabinet The cabinet is fitted with a set of four swivel castors, and is supplied with a set of four adjustable height legs, which can be fitted in place of the castors depending on specific height and manoeuvrability requirements. The legs or castors should be fitted to the base of the cabinet before final positioning. -
Page 8: Pans And Hinged Pan Covers
SKOPE Centaur Series Pans and Hinged Pan Covers Sandwich and Pizza cabinets are supplied with food preperation pans which fit into openings on top of the cabinet, and hinged pan covers. Refer to the tables below for standard pan and hinged pan cover quantities:... -
Page 9: Operation
SKOPE Centaur Series Operation Automatic Start-Up Connect the cabinet to the mains power supply and check operation of the refrigeration unit and electronic controller. Ensure the cabinet power switch is turned on. IMPORTANT If the cabinet has been on its back, leave for 30 minutes before running. -
Page 10: Electronic Controller
. The electronic controller is pre-programmed and requires no initial setup or additional programming. SKOPE does not recommend that the settings be changed unless it is absolutely necessary. Faceplate Because the electronic controller plays such an important role, it’s helpful to... - Page 11 SKOPE Centaur Series CAREL ir33 electronic controller CAREL ir33 electronic controller faceplate Item Icon Function Mute / program: Mutes the audible alarm (buzzer) and deactivates the alarm relay. To initiate program sets, press for 5 seconds. Up: To scroll settings up (in program mode).
-
Page 12: Stand-By Mode
The temperature setpoint is factory set and can be adjusted if necessary. Setpoint SKOPE do not recommend that the setpoint be changed unless it is absolutely necessary, and then only by small increments at a time. To view and adjust the temperature setpoint 1. - Page 13 Flashing To reset alarm - unplug the cabinet from the power supply for 1 minute, then reconnect to Defrost over-time None power supply. limit 1. If alarm persists, contact SKOPE. Real-time clock fault Flashing Controller E prom error Flashing Controller E prom...
-
Page 14: Servicing
Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKOPE to arrange for a SKOPE authorised service agent to clean the condenser with compressed air. -
Page 15: Lighting
SKOPE Centaur Series Lighting Cabinet Depending on the model, the cabinet may be fitted with one of the light Interior Lights variations shown in the table below. Follow the relevant procedure further below to replace the light. Note: Some models are not fitted with interior lights. -
Page 16: Troubleshooting
SKOPE Centaur Series Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power supply. • Check that the cabinet operating and power switch is turned on no controller (see page 9). display: • Check mains power supply. 2. Power •... -
Page 17: Trademark Infringement
E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE and Centaur trademarks on this product are infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
