Unitronics Vision OPLC V130-TR20 Installation Manual

Vision™PLC+HMI
V130-33-TR20/V130-J-TR20
V350-35-TR20/V350-J-TR20
V430-J-RH2

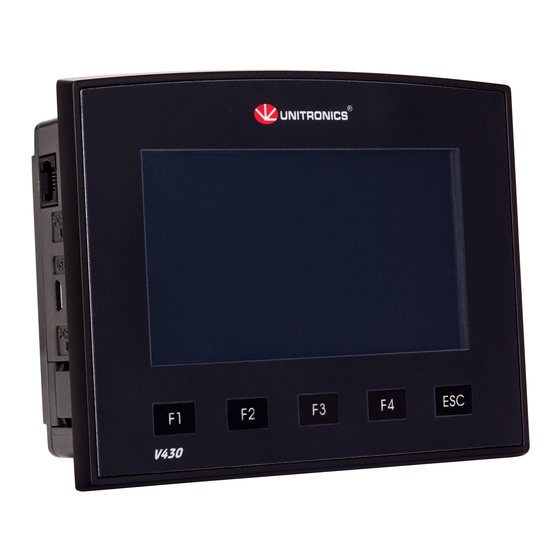

General Description
All of the controllers covered in this guide are micro-PLC+HMIs, rugged programmable logic controllers
that comprise built-in operating panels and on-board I/Os.
Item
On-board I/O
Screen
Keypad
Function Keys
Com Port, Built-in
RS232/485
USB device,
mini-B
Com Ports, separate
order, user-installed
* V430J/ V350 / V350J comprises both RS232/485 and USB ports;
note that only one channel may be used at a time.
Standard Kit Contents
Item
Controller
Terminal Blocks
Battery (installed)
Slides
(2 sets of key labels)
Mounting Brackets
Rubber Seal
Unitronics
Installation Guide

12 Digital Inputs, including 2 Analog,
3 HSC/Shaft-encoder inputs

6 Relay Outputs
V130-TR20
V130J-TR20
2.4"
Yes
None
Yes
None
The user may install a CANbus port (V100-17-CAN), and one of the following:

RS232/RS485 port (V100-17-RS4/V100-17-RS4X)

Ethernet (V100-17-ET2)

Profibus Slave (V100-17-PB1)
V130-TR20
V130J-TR20
None

2 high-speed npn Transistor Outputs
(TR20 Only)
V350-TR20
V350J-TR20
Model Dependent
3.5" Color Touch
V350-TR20
V350J-TR20
Yes
Yes
Yes
Yes
Yes (2 parts)
Yes
4.3" Color Touch
None
Yes
Yes*
Yes*
V430J-RH2
Yes (4 parts)
V430J-RH2
Yes*
Yes*
None
1
