To Set Arc Tool Options - MACROMEDIA FREEHAND MX 11 Use Manual

To set Arc tool options:

In the Tools panel, if the Arc tool is not showing, select it from its pop-up menu.
1
Double-click the Arc tool.
2
In the Arc dialog box, select from the following options:
3
Create Open Arc
quarter pie shape.
Create Flipped Arc
Create Concave Arc

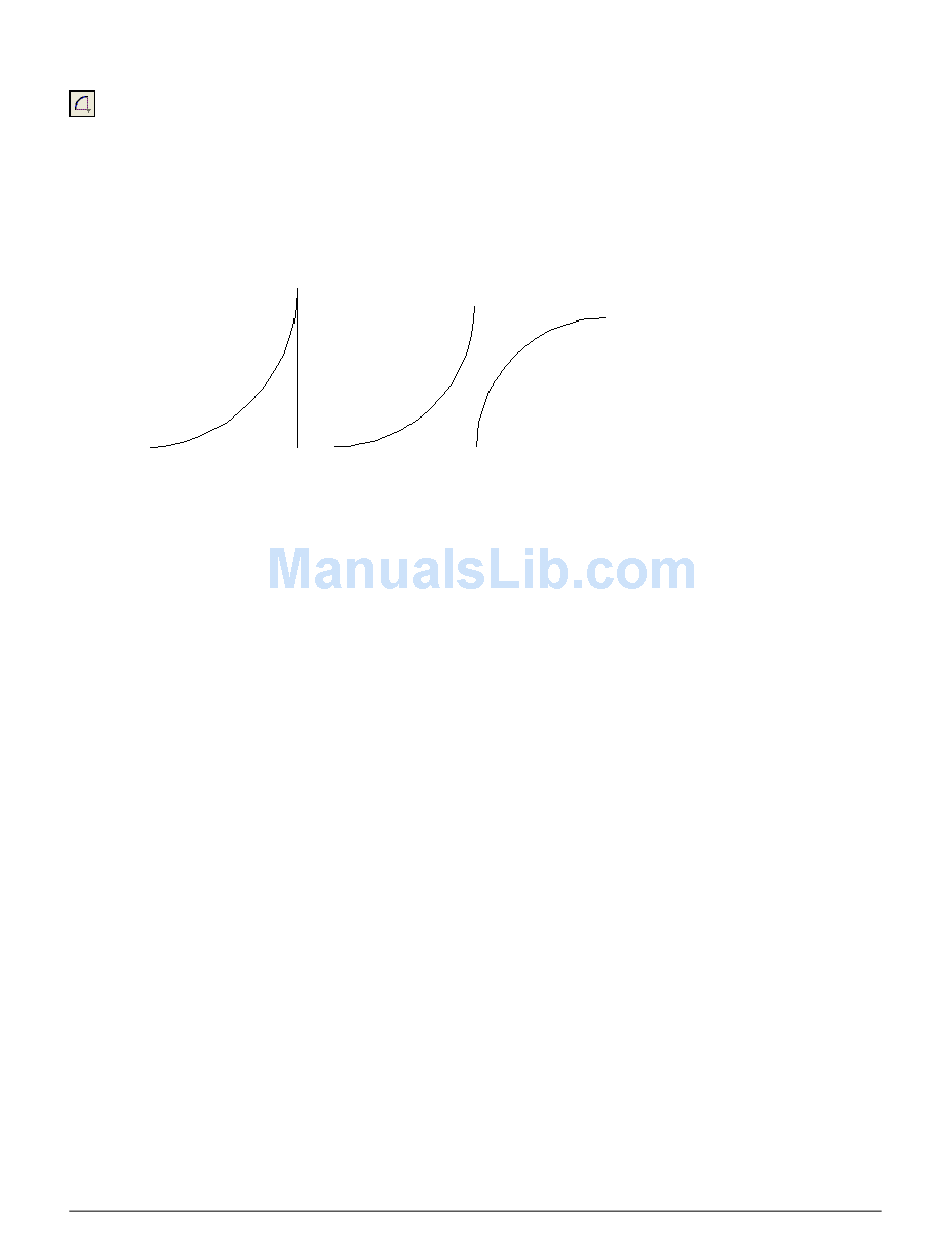

Concave (left), Open (center), and Flipped (right)
Click OK.
4
To draw an arc:
In the Tools panel, select the Arc tool from its pop-up menu.
1
Drag to draw an arc.
2
To modify the arc as you draw, press any of the following keys, alone or in combination, after
3
you begin drawing the arc:
•
Press Shift to constrain the arc.
•
Press Alt (Windows) or Option (Macintosh) to draw a flipped arc.
•
Press Control (Windows) or Command (Macintosh) to draw a closed arc.
•
(Windows only) Press Control and hold down the right mouse button as you draw to create a
concave arc.
•
(Macintosh only) Press Control to draw a concave arc.
80 Chapter 3
lets you draw only the arc curve. Deselect this option to draw the arc as a
lets you flip the orientation of the arc.
lets you draw the arc with an outer corner.
