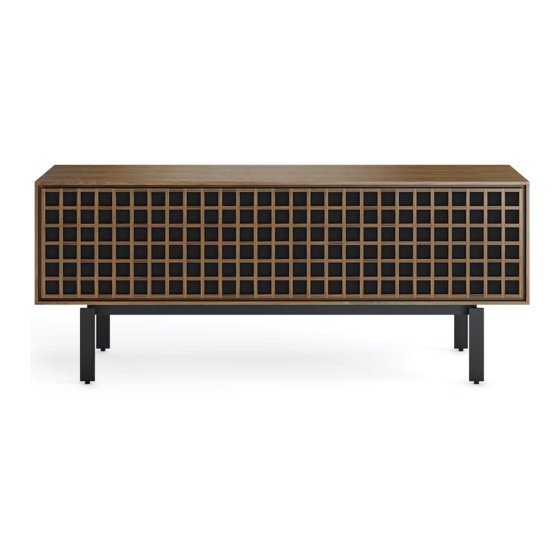

- Page 1 INTERVAL 7247 & 7249 ™ CABINET INSTRUCTION MANUAL LET’S GET STARTED. DESIGN AL GLASS AND MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your Interval Cabinet from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information to ensure that you get the most out of your product.
- Page 4 Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. Do not use power tools for the assembly of this product. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. PART #...
- Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS PART # DESCRIPTION Cabinet, 7247 or 7249 (shown) QUANTITY PART # PART # DESCRIPTION DESCRIPTION Glass Shelf Side Shelf QUANTITY QUANTITY PART # DESCRIPTION Removable Back Panel QUANTITY NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 5...
- Page 6 ASSEMBLY STEP 1. ASSEMBLE BASE Attach (C1) Base Legs to (C2) Base Spanners PART/DESCRIPTION using 8 (H1) Screws. Tighten with (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW 6 | BDIUSA.COM INTERVAL 7247 / 7249...
- Page 7 2 PERSON TASK STEP 2. ATTACH BASE TO CABINET ASSEMBLY With help from another person, carefully rotate PART/DESCRIPTION the (C3) Cabinet backwards onto its top panel. Be careful not to rest the cabinet on its door. T1-HEX WRENCH Attach the Base to the (C3) Cabinet using 8 (H2) Screws.
- Page 8 Install the (H3) Shelf Pins for the (C5) Center Shelf in their top most positions if you plan to use a soundbar that is wider than the middle section of the cabinet. 8 | BDIUSA.COM INTERVAL 7247 / 7249...
-
Page 9: Step 4. Install Shelves
STEP 4. INSTALL SHELVES ASSEMBLY Carefully place the (C4) Center Shelf into the (C3) Cabinet. The (C4) Center Shelf may be adjusted by unscrewing the shelf pins and repositioning them. Carefully place the 2 (C5) Side Shelves into the (C3) Cabinet. The (C5) Side Shelves are not adjustable. - Page 10 A (H5) TV Safety Strap is included. To secure your TV to the cabinet, unravel the bundle and follow the instructions on the hang tag. TV Safety Strap Use the KLEET for wire management 10 | BDIUSA.COM INTERVAL 7247 / 7249...
-
Page 11: Level The Cabinet
FINE TUNING LEVEL THE CABINET Make sure the cabinet is level. Adjust one or PART/DESCRIPTION more of the levelers using (T2) Leveler Wrench to attain a level stance. T2-LEVELER WRENCH Your Interval Media Cabinet features a push-to-open, drop-down soft open door. It is intended to be opened by gently pushing on the top of the door in the center 2"... - Page 12 Counter-clockwise = lower door PUSH LATCH Clockwise = latch in Counter-clockwise = latch out HINGES The back screw adjusts the door forward or back. The front screw adjusts the door up or down. 12 | BDIUSA.COM INTERVAL 7247 / 7249...
-
Page 13: Care And Maintenance
Your BDI furniture has been constructed with the finest materials, manufactured with care and is designed to last a lifetime. Regular care of your furniture will prolong your enjoyment and keep it looking its best. Here are some general tips for taking care of BDI furniture. Your surfaces may vary. GLASS The glass surface is maintained using household glass cleaner and a paper towel or cloth. -
Page 14: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component. - Page 15 WAR N IN G SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO HELP PREVENT TIP-OVER: n Install tip-over restraint. Place heaviest items in lower compartments. n Never allow children to climb or hang on drawers, doors, or shelves. n Never open more than one drawer at a time. USE OF TIP-OVER RESTRAINT MAY REDUCE—BUT NOT ELIMINATE—THE RISK OF TIP-OVER.
