Unitronics Vision V350-R34 Installation Manual

Vision™PLC+HMI
V130-33-TR34/V130-J-TR34
V350-35-TR34/V350-J-TR34
V430-J-TR34
V130-33-R34/V130-J-R34
V350-35-R34/V350-J-R34
V430-J-R34
General Description

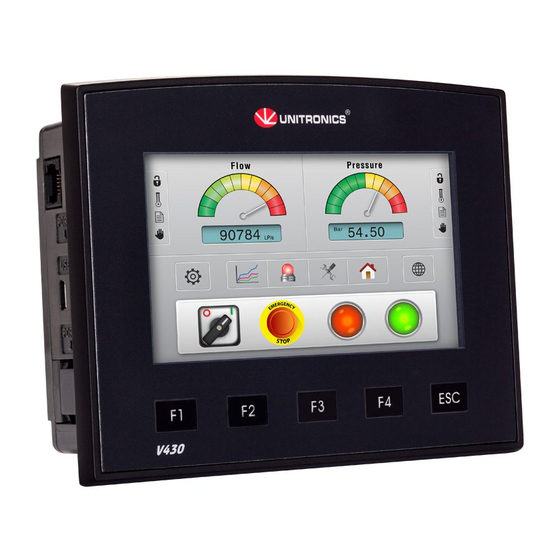

All of the controllers covered in this guide are micro-PLC+HMIs, rugged programmable logic controllers
that comprise built-in operating panels and on-board I/Os.
Item
On-board I/O
Screen
Keypad
Function Keys
Com Port, Built-in
RS232/485
USB device, mini-B
Com Ports, separate
order, user-installed
* V430J/V350/V350J comprises both RS232/485 and USB ports; note that only one channel may be
used at a time.
Standard Kit Contents
Item
Controller
Terminal Blocks
Battery (installed)
Slides
(2 sets of key labels)
Mounting Brackets
Rubber Seal
Unitronics
Installation Guide

22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,
2 Analog inputs

8 Relay Outputs

22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,
2 Analog Inputs

12 Relay Outputs
V130-TR34 V130-R34
V130J-TR34 V130J-R34
2.4"
Yes
None
Yes Yes
None None
The user may install a CANbus port (V100-17-CAN), and one of the following:

RS232/RS485 port (V100-17-RS4/V100-17-RS4X)

Ethernet (V100-17-ET2)

Profibus Slave (V100-17-PB1)
V130-TR34 V130-R34
V130J-TR34 V130J-R34
None

4 high-speed npn Transistor Outputs
V350-TR34
V350J-TR34
Model Dependent
3.5" Color Touch
Yes*
V350-TR34
V350J-TR34
Yes
Yes
Yes
Yes
Yes (2 parts)
Yes
V350-R34 V430J-TR34
V350J-R34 V430J-R34
4.3" Color
Touch
None
Yes
Yes* Yes*
Yes*
V350-R34 V430J-TR34
V350J-R34 V430J-R34
None
Yes (4 parts)
1
