ROSE DISPLAYS SIDE-LOADING ANOSKYBOX Manual

Side-Loading AnoSkyBox

Parts

Instructions for assembly

Note: You will be assembling four frames.
Below instructions are for one frame only.
Repeat steps 1 & 2 for each frame.

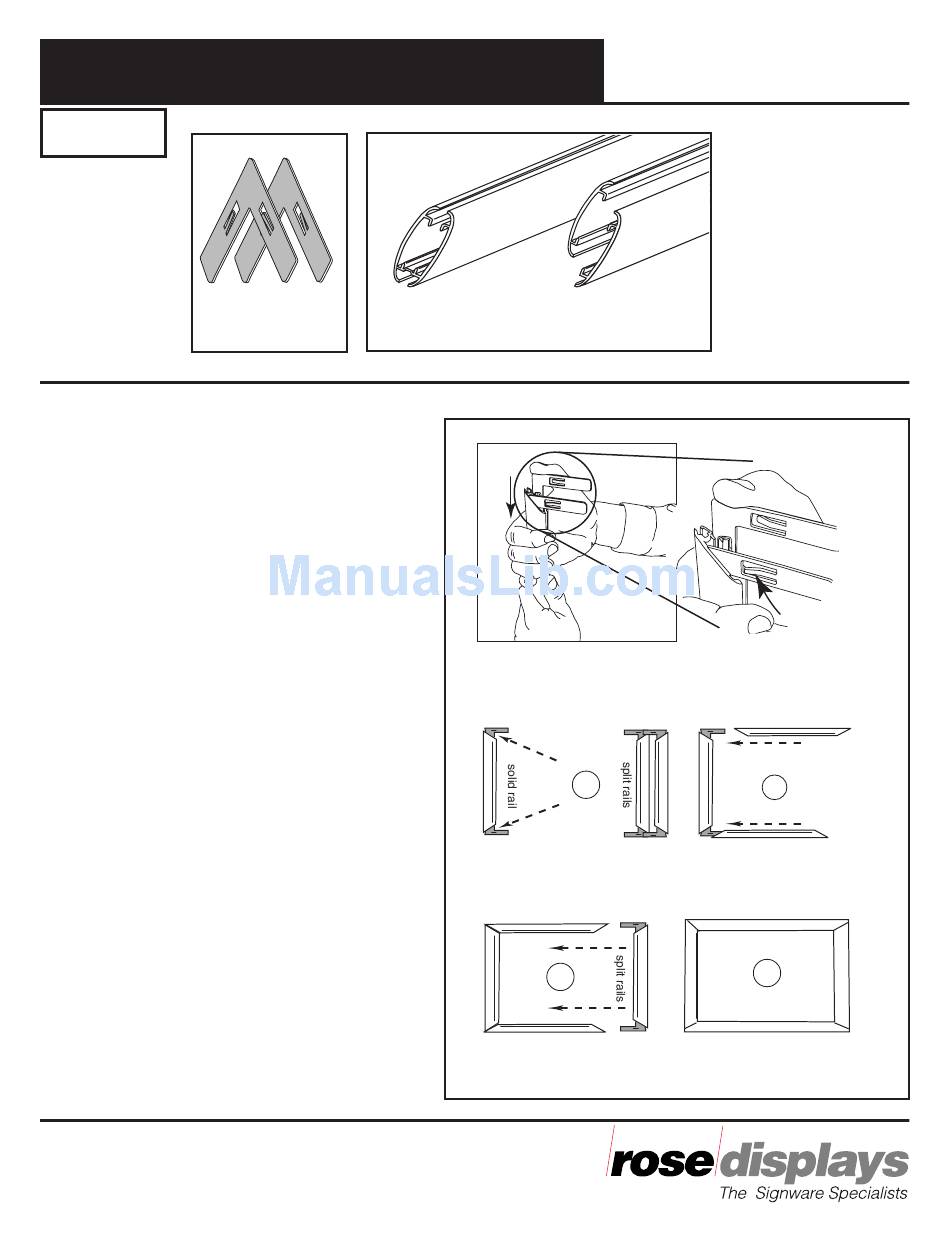

Step 1

Locate two split rails and a solid rail that is
the same length as the split rails.
Insert two corner brackets in each end of
the solid side AnoFrame rail. Insert one
corner bracket into each end of each split
side AnoFrame rails. Fig. 1.
Note: Tension tabs on corner brackets face
towards outside of frame rails.

Step 2

Assemble frame following steps in Fig. 2
sliding sides together in the order shown.
The AnoSkybox™ is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #03INSSideLoadingAnoSkyBox
Incept-1.24.03
32 Corner 12 AnoFrame Rails
Brackets
TM
8 AnoFrame
12AF-100 split rails
Figure 1
1
3
Instruction Sheet
solid rail
2
solid rail
4
Figure 2
