Rear Panel Configuration

The TS series rear panel configuration is determined by the model and options selected.
Some models will have one or more of the features listed below:
Duplex Outlet Option (D): a 120-volt, 15-amp
models.
Duplex Outlet Option (I):
on some models.
GFCI Outlet Option (P): Ground Fault Circuit Interrupt outlet is required on
some U.S. models.
Outlet plate: blank plate provided when no outlet is installed, AC Out cable
must be hardwired to the TS PCB as shown in these instructions.
15-amp input circuit breaker provided as part of the standby battery charger
option.
AC-In Power Cord Option (L): 14/3 120-volt AC stranded-copper power cable
with molded standard U.S.. plug provided only with standby battery charger
option.
Battery Cable Option (B#): #6 AWG stranded copper cable, insulated with black
(negative) or red (positive) vinyl for polarity identification. Available in three, five
or 10 foot lengths. Specify BC3, BC5, or BC10
Zinc strain relief: provided only with standby charger option.
Circuit Breaker (provided with
SB option) Press to reset
Copyright Trace Engineering Co. Inc.
t h
5916 195 Street, NE
Arlington, WA 98223 USA
outlet is provided on some
230-volt, 15-amp for export models outlet is provided

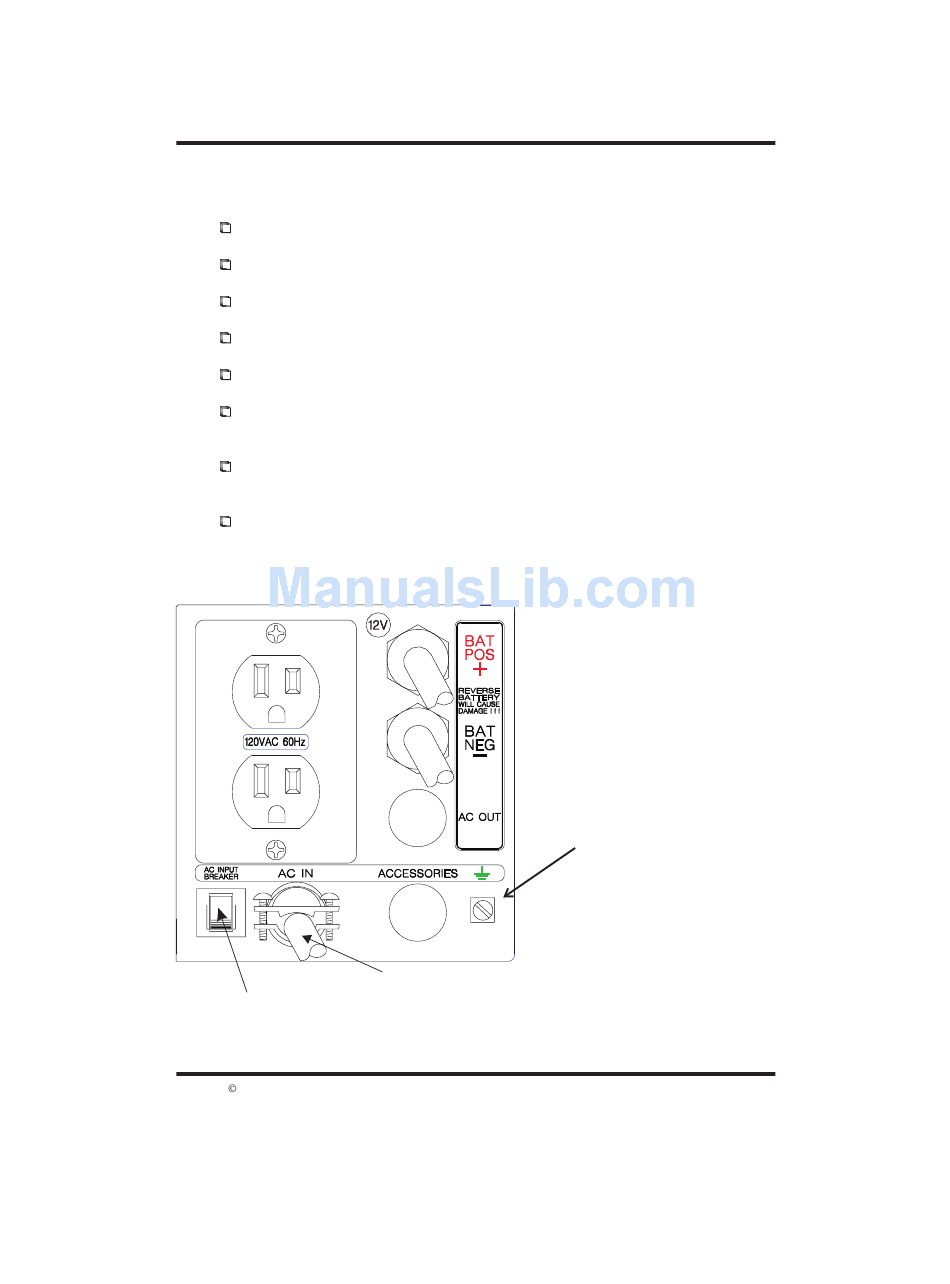

End panel showing optional
