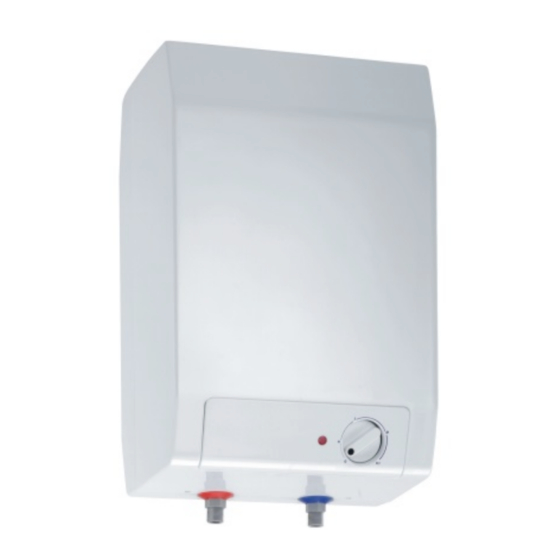

Austria Email KRU Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Austria Email Manuals
  4. Water Heater
  5. KRU
  6. Instructions for use manual

Austria Email KRU Instructions For Use Manual

5/10l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KRO / KRU
5/10L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRU and is the answer not in the manual?

Questions and answers

Related Manuals for Austria Email KRU

Summary of Contents for Austria Email KRU

  • Page 1 KRO / KRU 5/10L...
  • Page 2 INSTRUCTIONS FOR USE...
  • Page 3 NOTES The unit can be used by children eight years old and older as well as by persons with reduced physical, sensory or mental capabilities or who lack experience and knowledge if they are supervised or if they have been trained with regard to the safe use of the unit and understand the resulting risks.

  • Page 4: Dear Customer

    Dear Customer, You have decided to on a unit from our company. We would like to thank you for your confidence! Please read these operating instructions carefully before installing and operating the water heater. Keep this brochure in a safe place and, if applicable, please pass it on to subsequent owners. You will receive a nice unit, built to the latest state of the art and which complies with the applicable standards and regulations.

  • Page 5: Installation

    It is to be fastened to the wall with wall screws with a nominal diameter of at least 5 mm. Depending on your needs, you can choose between an over the sink table (KRO) and an under the table mount (KRU). DIMENSIONS...

  • Page 6: Water Connection

    WATER CONNECTION The water heater is suitable for pressure-free assembly. The system allows for water withdrawal at a tap. The connection is to be done in accordance with the valid standards and laws as well as according to these operating and assembly instructions, including the corresponding diagrams.
  • Page 7 The water heater must be filled with water prior to electrical connection. During the first filling, open the hot water inlet of the mixed tap. The water heater is full when bubble-free water flows out of the outflow pipe of the mixed tap. If the unit is operated without water, the heater fuse will be damaged during the first use and the water heater will not work.

  • Page 8: Electrical Connection

    ELECTRICAL CONNECTION Before the electrical connection is made, the storage tank must be completely filled with water! CAUTION: You must disconnect the power before any intervention in the water heater! The electrical connection must be made according to the valid provisions and standards. The water heater is connected to the mains via the connection cable.

  • Page 9: Use And Maintenance

    "e". This is the most economical setting where the water temperature is about 41°C for KRO/KRU 0520 or 35°C for KRO/KRU 1020. Calcification and heat loss are lower with this setting than at higher temperatures (item II 55 °C and III 75 °C).
  • Page 10 Heating time from 10 °С to 65 °С [min] Dimensions of the packaging [mm] 215x265x425 275x320x500 * Rotary knob to position "e" means a temperature of about 41°C for KRO/KRU 0520 or about 35°C for KRO/KRU 1020 1) Commission regulation EU 812/2013; EN 50440 2) EN 50440...

  • Page 11: Guarantee, Warranty And Product Liability

    Guarantee, Warranty and Product Liability The warranty will be fulfilled in accordance with the current legal provisions of the Republic of Austria as well as with those of the EU. 1. A condition for the operation of guarantee services by the product manufacturer (hereinafter referred to as the PM) is the presentation of the paid invoice for the purchase of the device for which the guarantee service is being invoked, whereby the identity of the device in terms of type and serial number must be taken from the invoice and must be produced by the claimant.
  • Page 12 documentation, failure to renew the in-built protective anode on time and to document it, lack of or unprofessional cleaning and operation, as well as any divergences from the norm that even slightly reduce the value or the functional capability of the device. In addition, as a matter of basic principle, all regulations set out in ÖNORM B 2531, DIN 1988 (EN 806), DIN 1717, VDI 2035 or the corresponding national regulations and legislation must be complied with.
  • Page 13 goods have been delivered shall apply. 14. For the attainment of claims in accordance with Austrian product liability legislation, it should be noted that: Any possible claims from the product liability stated above which deal with damage caused by a failure of a product (e.g.
