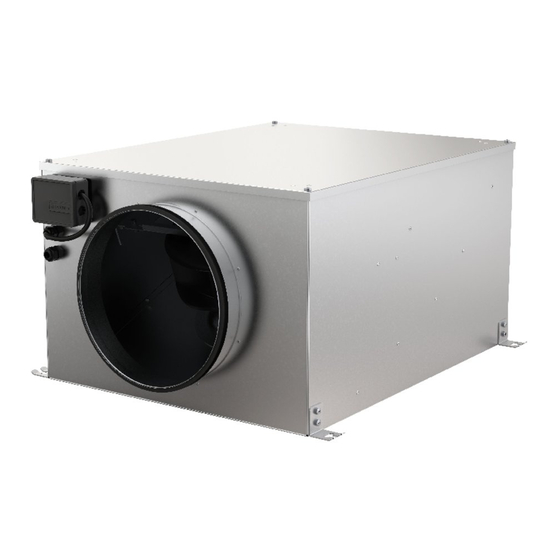

- Page 1 KVK Slim 200–500, KVK Slim 200–500 EC, KVK Silent 200– 500, KVK Silent 200–500 EC Operation and Maintenance Instructions Document in original language | 145899 · A007...
- Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 145899 | A007...
-
Page 3: Table Of Contents
Contents Declaration of conformity........1 Warnings............2 Disposal and recycling ........2 Product information .........3 General ..........3 Technical data ........4 4.2.1 Dimensions .......4 4.2.2 Performance ......6 4.2.3 Wiring diagram ......8 Transportation and storage.......9 Installation.............9 Commissioning ........10 Maintenance ..........10 Important ........... 10 Cleaning the fan........ -
Page 5: Declaration Of Conformity
KVK Slim 200–500, KVK Slim 200–500 EC, KVK Silent 200–500, KVK Silent 200–500 EC (The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included installation in- structions. -
Page 6: Warnings
| Warnings Warnings The following admonitions will be presented in the different sections of the document: Danger • Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious injury. Warning • Indicates a potentially hazardous situation that may result in minor or moderate injuries. Caution •... -
Page 7: Product Information
The fans are meant for use in ducted systems and should always be duct connected on the inlet side. No moving parts shall be accessible after installation. KVK Slim 200–500, KVK Slim 200–500 EC, KVK Si- lent 200–500, KVK Silent 200–500 EC are adapted to continuous operation. -
Page 8: Technical Data
| Product information Technical data 4.2.1 Dimensions Fig. 1 KVK Slim øF Model KVK Slim 200 EC KVK Slim 200 KVK Slim 250 EC KVK Slim 250 KVK Slim 315 KVK Slim 315 EC KVK Slim 355 KVK Slim 355 EC... - Page 9 Product information | Fig. 2 KVK Silent øF Model KVK Silent 200 EC KVK Silent 200 KVK Silent 250 EC KVK Silent 250 KVK Silent 315 1022 1165 KVK Silent 315 EC 1125 1041 1383 KVK Silent 355 1041 1045 KVK Silent 355 EC 1082 1383...
-
Page 10: Performance
EC fans can be regulated with the enclosed potentiometer, the following diagrams show the performance on different fan curves. Table 1 EC-fans [m³/h] [m³/h] 1000 1000 KVK Slim 200 EC KVK Silent 200 EC 2,6V 4,6V 6,6V 4,6V 2,6V 6,6V Q [m³/s]... - Page 11 Product information | EC-fans cont'd [m³/h] 1000 2000 3000 4000 KVK Silent 400 EC 2,4V 4,7V 6,9V Q [m³/s] [m³/h] [m³/h] 2000 4000 6000 2000 4000 6000 KVK Slim 500 EC KVK Silent 500 EC 2,5V 7,2V 2,4V 4,8V 7,2V Q [m³/s] Q [m³/s] 145899 | A007...
-
Page 12: Wiring Diagram
| Product information 4.2.3 Wiring diagram Modbus communication is possible for 315–500 EC, see wiring diagram. Fig. 3 KVK 200, 250, 315 Slim/Silent Fig. 4 KVK 355–500 Slim/Silent Fig. 5 KVK 200–250 Slim/Silent EC Fig. 6 KVK 315–500 Slim/Silent EC Green Brown Yellow... -
Page 13: Transportation And Storage
Installation | Transportation and storage All fans are packaged at the factory to withstand normal transport handling. When handling the goods use suitable lift- ing equipment in order to avoid damage to fans and personnel. Avoid blows and shock loads. Store the fans in a dry place protected from weather and dirt until final installation. -
Page 14: Commissioning
• Connection data corresponds to the specifications on the nameplate: Maximum voltage +6%, -10%, according to IEC 38. Rated current must not be exceeded with more than 5% at rated voltage. • Smoothness of motor operation, (no abnormal noises). Sound levels exceeding 70 dB(A) may occur depending on size (see www.systemair.com for detailed information). Maintenance Important Danger •... -
Page 15: Troubleshooting
Troubleshooting | Troubleshooting The following applies in case the fan has stopped: • Try to restart the fan by cutting the power a couple of minutes. • Ensure that the impeller is not locked. Disconnect the power supply, remove any obstacles. Check that the fan starts after reconnecting the current. - Page 16 Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
