OPERATOR'S MANUAL

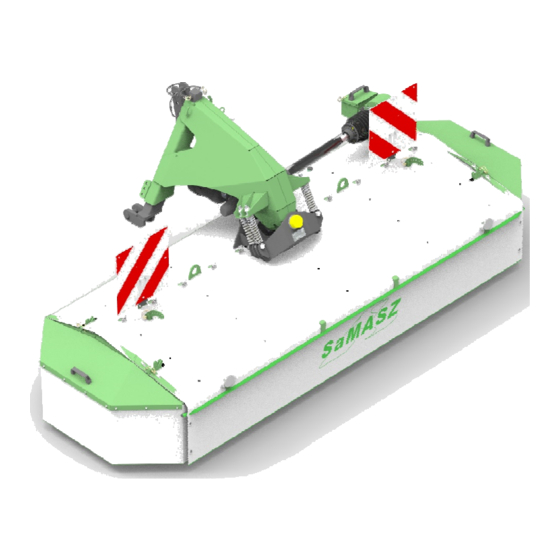

FRONT DISC MOWER
TORO 260
TORO 262
TORO 300
TORO 302
TORO 340
TORO 342
Serial number:
Translation of original instructions
SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
- 2.60 m
- 2.60 m
- 3.00 m
- 3.00 m
- 3.40 m
- 3.40 m
‒ English ‒
Established – 1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
www.samasz.pl
IN2200EN003
2019.03.24
EDITION NO. 3
