SaMASZ Z 010 Operator's Manual

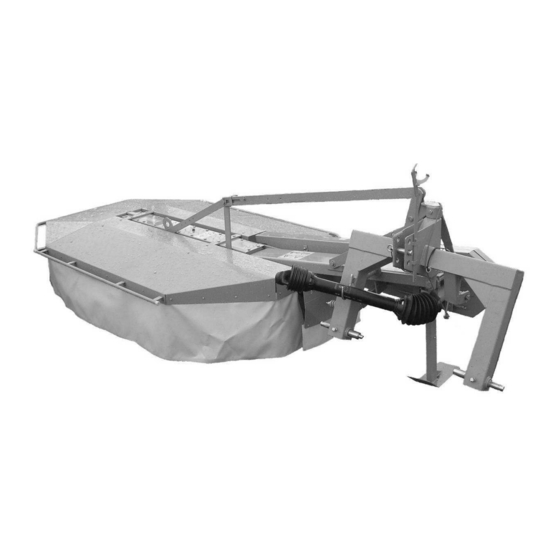

Rear drum mower
Hide thumbs Also See for Z 010:
Table of Contents

Advertisement

Quick Links

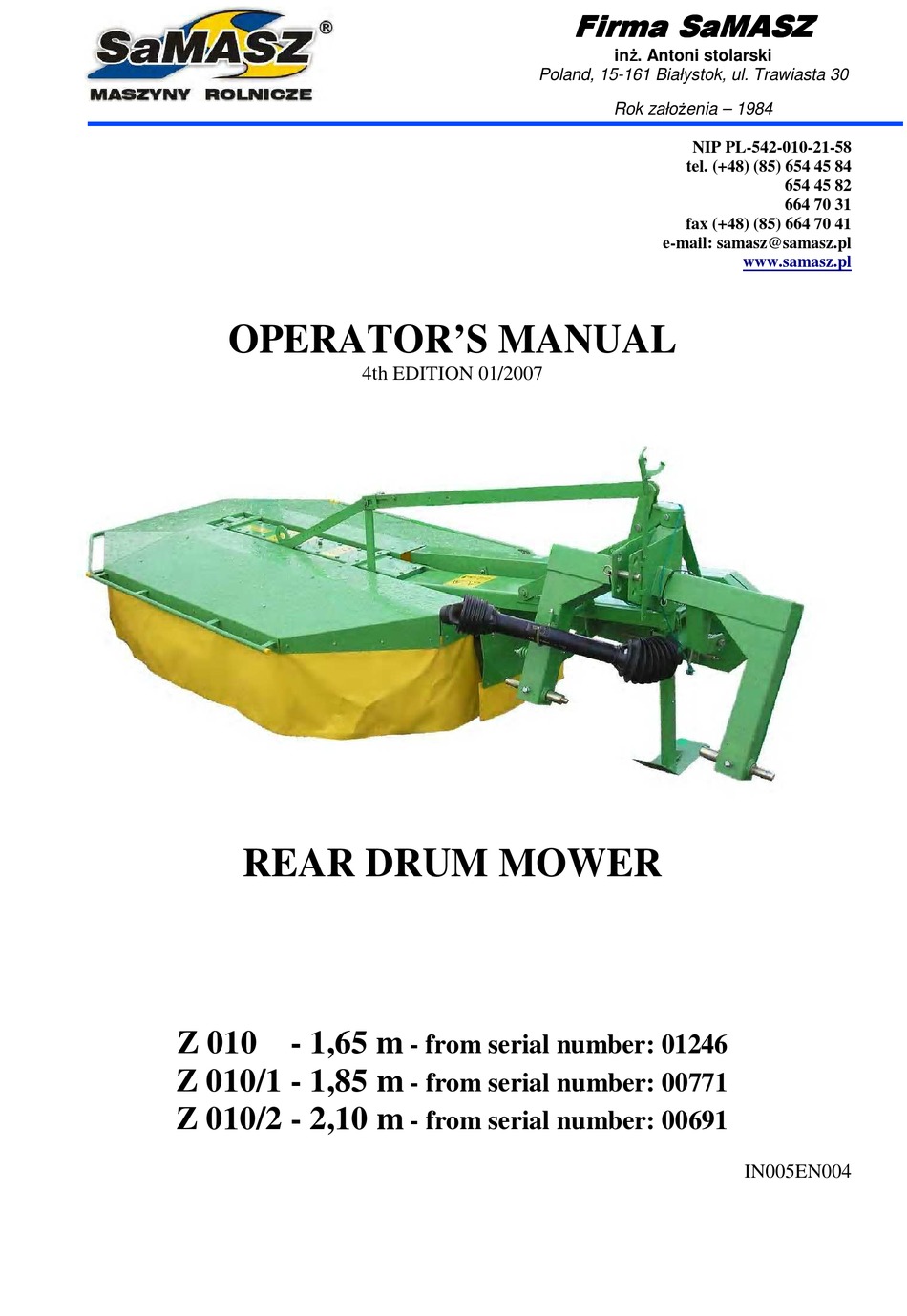

OPERATOR'S MANUAL
REAR DRUM MOWER
Z 010 - 1,65 m
Z 010/1 - 1,85 m
Z 010/2 - 2,10 m
4th EDITION 01/2007
- from serial number: 01246
- from serial number: 00771
- from serial number: 00691
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
Firma SaMASZ
inŜ. Antoni stolarski
Poland, 15-161 Białystok, ul. Trawiasta 30
Rok załoŜenia – 1984
NIP PL-542-010-21-58
tel. (+48) (85) 654 45 84
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
654 45 82
664 70 31
www.samasz.pl
IN005EN004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z 010 and is the answer not in the manual?

Questions and answers

Related Manuals for SaMASZ Z 010

Summary of Contents for SaMASZ Z 010

  • Page 1 OPERATOR’S MANUAL 4th EDITION 01/2007 REAR DRUM MOWER Z 010 - 1,65 m - from serial number: 01246 Z 010/1 - 1,85 m - from serial number: 00771 Z 010/2 - 2,10 m - from serial number: 00691...
  • Page 2 RECOMMENDED MOWER′S ZALECANE POCHYLENIE WORKING KOSIARKI W POZYCJI POSITION ROBOCZEJ IT IS ALLOWED TO WORK IN HORIZONTAL opuszcza się pracę w pozycji poziomej. DOPUSZCZA SIĘ PRACĘ W POZYCJI POZIOMEJ POSITION TOO. OTHER POSITION CAN Pochylenie odwrotne powoduje trwałe POCHYLENIE ODWROTNE POWODUJE TRWAŁE DAMAGE THE CUTTERBAR uszkodzenie listwy roboczej.

  • Page 3: Table Of Contents

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 Contents Page 1. INTRODUCTION ........................ - 4 - 2. TECHNICAL DATA ......................- 4 - 2.1. Specifications........................- 4 - 2.2. Proper use .......................... - 6 - 2.3. Standard equipment and spare parts..................- 6 - 3.

  • Page 4: Introduction

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 We congratulate you on the purchase of your new SaMASZ mower and wish you much pleasure and the very best work results through the years to come. 1. INTRODUCTION Operator’s manual is attached to every machine in order that the operator can familiarise himself with design, working principles, service and adjustment of the mower.
  • Page 5 540 Nm* Cutting speed of the knife 90 m/s 88,3 m/s 90,2 m/s Drum rpm 2046 1813 1610 Tractor class *with overrunning clutch Tab 1. Fig.1. Data plate. Fig.2. Parts of SaMASZ rear drum mower – flat cover - 5 -...

  • Page 6: Proper Use

    (8). 2.2. Proper use SaMASZ rear drum mower is designed for mowing standing grass in meadows and in stone free fields. It is a machine for hay and green fodder production. Recommended tractor powers are:- for Z010 (1,65 m) - 30 kW - for Z010/1 (1,85 m) - 45 kW - for Z010/2 (2,10 m) - 60 kW.

  • Page 7: Safety Advice

    – 150 ml. Optional extra equipment: warning plates with combined lights and reflectors, warning triangle, PTO shaft Tab. 2. PTO shafts for SaMASZ rear drum mowers Length Power Mower Moment Clutch Manufacturer...

  • Page 8: Warning Decals

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 Mowing on the sides of public roads or in the very stoney areas is prohibited. The areas to be mowed should be cleared of any hard objects (stones, etc.). Large stones should be removed and small ones rolled in during the spring.
  • Page 9 Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 WORKING WITHOUT GUARDS IS FORBIDDEN DANGER OF THE STONES, ETC. BEING THROWN OUT PTO direction and speed Caution – read the Caution – while making repairs Operating is forbidden when operator’s manual before...

  • Page 10: Design And Operation Of Safety Breakaway Device

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 3.2. Design and operation of safety breakaway device Z 010 Z 010/1 Z 010/2 Fig. 5. Safety device Fig. 6. The mower breaks back when the safety device operates Safety device spring is adjustable, therefore changing the force needed to make safety device work.

  • Page 11: Transport And Working Positions

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 If the safety device breaks away too easily, tighten up the spring approximately 1-2 mm. DO NOT tighten up too much, because you may prevent the safety device from working and damage the mower.

  • Page 12: Desing With Hydraulic Lifting (Optional Equipment)

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 4.2.2. Desing with hydraulic lifting (optional equipment) To put the mower into the transport position, please do the following: 1. Connect the hydraulic hose for lifting the mower to tractor hydraulic service ;...

  • Page 13: Mechanical Lock Of Hydraulic Lifting

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 O – open Z - closed Fig. 11. Shut-off valve positions. min. 500mm Fig. 10. Mower raised for transport position. 6. To prepare the mower for transport and to meet safety precautions please:...

  • Page 14: Operation (Mowing)

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 Fig. 13. SaMASZ mower in the transport position with warning plates. CAUTION: The warning devices can be ordered from the mower manufacturer. warning triangle which can be put into holder on top mower guard.

  • Page 15: Design With Hydraulic Lifting (Optional Equipment)

    PTO shaft between tractor and mower; slowly engage PTO clutch and wait until the cutting unit reaches its rated speed; engage tractor gear and drive slowly into the grass-field. ok.40cm Fig. 15. Working position of SaMASZ rear drum mower. - 15 -...

  • Page 16: Mounting Pto Shaft

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 4.5. Mounting PTO shaft When connecting PTO shaft between tractor and mower make sure, that external guard tube of the shaft is on the tractor’s side. The PTO shaft plastic guards have to be secured by fastening their small chains to immovable parts of tractor and mower.

  • Page 17: Adjusting The Cutting Unit

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 CAUTION: The cutting edges of the new knives should be directed towards ground. 5.3. Adjusting the cutting unit ADJUSTING THE MOWER FOR MOWING Fig. 18. Adjust the drums level with the ground.

  • Page 18: 3-Point Linkage Support Chain

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 5.5. 3-point linkage support chain Support chain (Fig. 20) is used to ensure 3-point linkage frame of the mower is always at the same height, to set the mowing unit parallel to the ground and to relieve the hydraulic lift of the tractor. If the cutting unit is not set parallel to the ground, the bearings of sliding saucers will be subject to premature wear.

  • Page 19: Checking The V-Belts Tension

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 Knife holder pin Fig. 21. Permissible wear of knife holders. 5.6.2. Checking the V-belts tension Check the V-belt tension. Their deflection under finger pressure must not exceed 30 mm. V-belts are tensioned with spring tensioner (Fig.22) equipped with checking plate (1).

  • Page 20: Daily Maintenance

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 5.6.3. Daily maintenance Everyday after work please carry out the following maintenance: remove grass and mud, check all visible units and parts and their connections; tighten all loose bolts and nuts and replace all damaged and/or worn parts with new genuine ones.

  • Page 21: Defects And Their Repairs

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 Gear trough (gearbox) The oil level is to be checked periodically through the venting opening on the gear trough. The oil level should be 15-20 mm (about ¾ inch) above the bottom of the trough, when the frame is level.

  • Page 22: Disassembly And Withdrawal From Work

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 8. DISASSEMBLY AND WITHDRAWAL FROM WORK CAUTION! Before disassembly the mower should be disconnected from the tractor. 8.1. Disassembly Before starting any repair or service the mower should be cleaned and any grass or dirt removed.

  • Page 23: Warranty Card

    2. The warranty period is for a year from the date of sale to the purchaser, stated above. 3. Any repair which is subject to warranty should be carried out by an authorised SaMASZ dealer. Upon completion of the repair the dealer must submit a warranty claim within 21 days.

  • Page 24: Warranty Repairs Record

    Rear drum mower Operator’s manual Z 010;Z 010/1; Z 010/2 6. The manufacturer has the right to cancel a warranty in following cases: a) interference of the interior of the mower, changes of its mechanical design or intentional damages, b) damage caused by accidents or other events, for which the warrantor is not responsible, c) use of the mower not in accordance with operator’s manual or for incorrect purpose.
