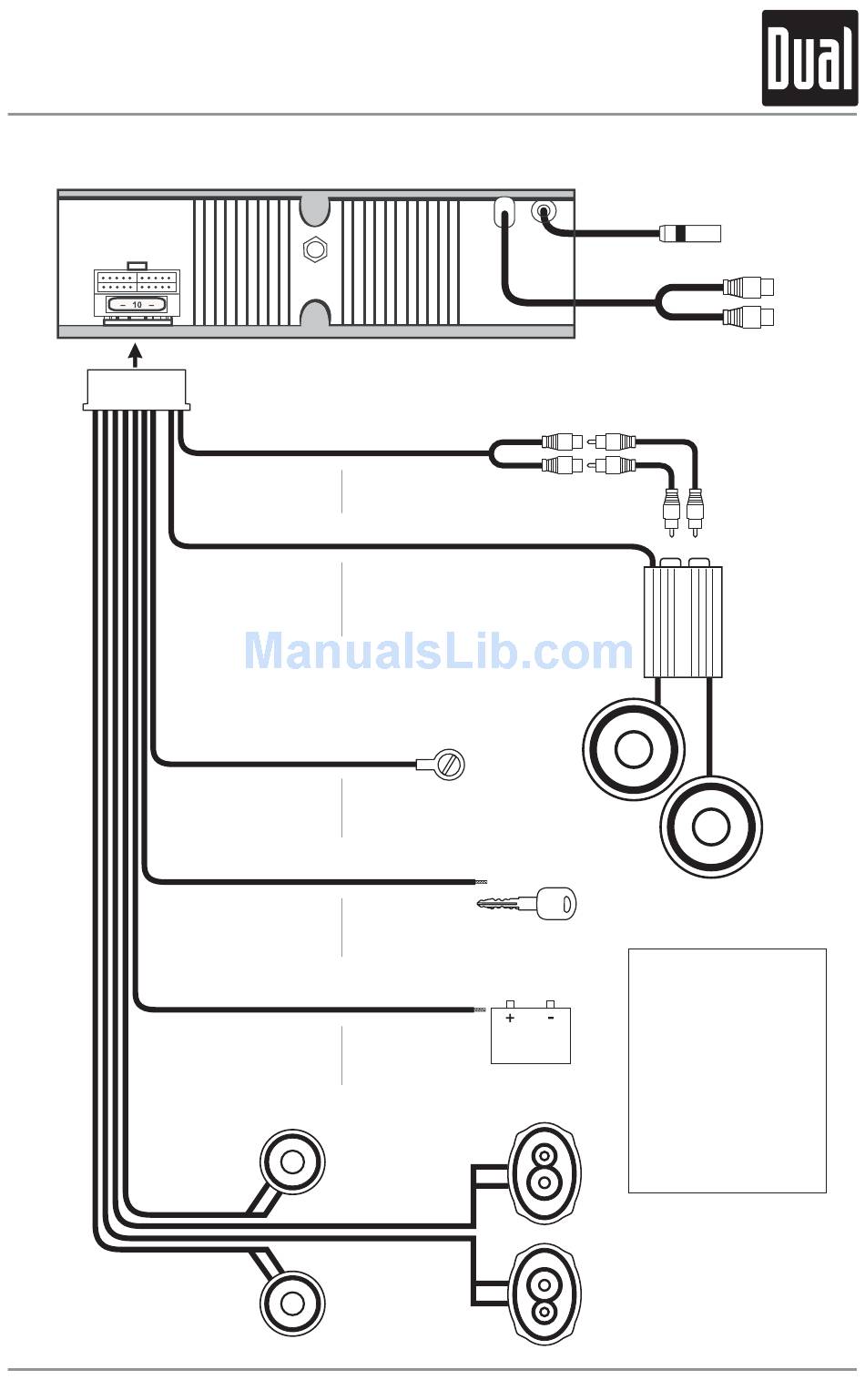

Wiring Diagram - Dual MXD50 Installation & Owner's Manual

GREY
BLUE
BLACK
RED
YELLOW
Right Front
Gray/Black (-)
Gray (+)
Left Front
White/Black (-)
White (+)
MXD50
Rear Preamp Output
Connect to amplifier RCA Input
Remote Turn-On
Connect to amplifier or power
antenna. Insulate wire if not used.
Ground
Connect to
chassis ground.
Accessory
Connect to existing ignition
circuit or switched 12 volt source.
Memory
Connect to battery
circuit or constant 12 volt source.
Right Rear
Violet/Black (-)
Violet (+)
Left Rear
Green/Black (-)
Green (+)
INSTALLATION

Wiring Diagram

Antenna Connector
YELLOW Auxiliary Input
RCA Cable
(sold separately)
AMP
FUSE
When replacing a fuse,
make sure new fuse is the
correct type and amperage.
Using an incorrect fuse
could damage the radio.
The MXD50 uses one
10 amp ATO fuse located
below the wiring connector.
3
