ascom
]
]
GB
QUICK REFERENCE GUIDE
Ascom d62
dect HAndset
INClUDING SaFEty INStRUCtIoNS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ASCOM D62

  • Page 1 QUICK REFERENCE GUIDE Ascom d62 dect HAndset INClUDING SaFEty INStRUCtIoNS...

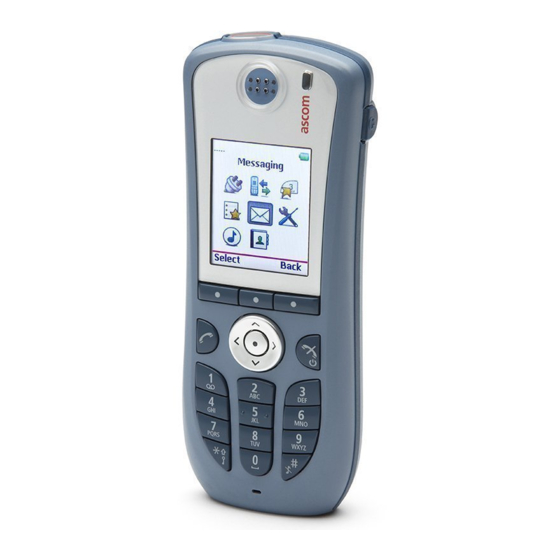

  • Page 2 Multifunction/Alarm button Headset connector Earpiece Status bar Volume buttons Header bar Colour display Mute button Shows the soft key function Confirmation key Soft keys Five-way Navigation Off-hook key Voice mail On/off, On-hook key Tactile key Alphanumeric keys Key lock and Sound off key upper/lower case Space...
  • Page 3 Display Icons EnglishEnglish New message, important Voice mail Read message New coloured message Read coloured message Missed call Incoming call Outgoing call System connection Key lock Phone lock Handset with the product license d62 Talker Handset with the product license d62 Messenger Handset with the product license d62 Protector...
  • Page 4: Product Presentation

    The colour display enhances and simplifies the use of the DECT handset. For detailed User Manual, Ascom d62, TD 92477GB. information, see Read the “Safety instructions” on page 12 before use.
  • Page 5: Basic Functions

    Basic functions Switch the handset on/off Press and hold until the question “Switch on/off?” is displayed, press “Yes”/”No”. Make a call Dialling can be made in the following ways: • In idle mode, enter the number and press , or the soft key “Call”.
  • Page 6 Turn audio signals on/off In stand-by mode, long press changes between audio signals on/off. The icon indicates a silenced handset. A short press on before answering a call, silences the ring signal. Lock/Unlock the keypad manually Press to lock/unlock and then soft key "Lock” or “Yes”. The icon indicates a locked keypad.
  • Page 7 Messages Messenger and Protector versions only Receive a text message When a text message is received, the LED starts flashing and a message tone sounds. The message is displayed immediately and the icon is shown in the display (if a voice mail also is received the icon will change to If the message is received during a call, the user is notified by a beep and the message is displayed.
  • Page 8: Alarm Functions

    Alarm functions Protector version only Personal Alarm Press twice or more, the text "Personal Alarm" (default) is displayed. Depending on set parameters; • a beep is heard • the orange LED flashes twice • the vibrator stirs • the handset receives a notification that the alarm has been received by the system.
  • Page 9 Menu For descriptions of all functions, see User Manual, Ascom d62. Menu icons Calls 13:00 Messaging Short cuts Connections Services Settings Contacts Profiles Back Select Navigate the menu Use the Navigation key to move around in the menu structure. The menus for Messenger and Protector are; “Connections”, “Calls”, Short cuts”, “Services”, “Messaging”, “Settings”,...
  • Page 10 The Multifunction button can also be programmed for different functions with the use of long press and double press. For more information about Soft keys, Hot keys and User Manual, Ascom d62. Multifunction button, see Turn the automatic keypad lock on/off Enter , and step to “Locks”.
  • Page 11 Adjust the Ringer Volume Enter , and step to “Sound & Alerts”. Select “Volume” and step with to increase the volume and with to decrease it. Press “OK“ to save the setting. Set Different Ring Signals for Internal, External and Callback call Enter , and step to “Sound &...
  • Page 12: Safety Instructions

    Safety instructions For safe and efficient operation of the handset, observe the guidelines given in this Quick Reference Guide and all necessary safety precautions when using the handset. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, and the User Manual.
  • Page 13 Battery • Do not immerse the battery into water. This could short- circuit and damage the battery. • Do not expose a battery to an open flame. This could cause the battery to explode. • Do not allow the metal contacts on the battery to touch another metal object.
  • Page 14: Regulatory Compliance Statements

    EFTA. This equipment is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC. The Declaration of Conformity may be consulted https://www.ascom-ws.com/doc/ The handset is marked with the label Regulatory Compliance Statements (USA and Canada only) Portables without Bluetooth: Portables with Bluetooth: •...
  • Page 15 0.029 W/kg. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Use of non-Ascom approved accessories may violate the FCC RF exposure guidelines and should be avoided. Information to user This device complies with Part 15 of the FCC Rules. Operation...
  • Page 16 Environmental Requirements DECT Handset • Only use the handset in temperatures between 0 ºC to +40 ºC (32 ºF to +104 ºF). • Avoid exposing the handset for direct sunlight or close to other heat sources. • Do not expose the handset to open flame. •...
  • Page 17 Accessories The following accessories for the d62 are available: Leather casing incl. belt clip Belt clip, swivel type Standard clip Desktop chargers Headset with microphone on boom Also available: • Headset with microphone integrated in cable • Security string • Charging rack •...
  • Page 18 www.ascom.com...
